Sanan 1080p Full HD Side View AHD Camera

Sanan 1080p Full HD Side View AHD Camera

In today's automotive environment there are a variety of car cameras; cameras provide solutions to different problems. Safety is priority number one, security is number two. To address the safety issue we offer reverse cameras, these systems prevent accidental injury by providing a wide rear vision, allowing you to see what is behind you as your are maneuvering your car. To address the security issue we offer dash cams and DVR, these camera systems prevent frivolous lawsuits by recording everything as it is happening while you drive, you will have the evidence that you need in the event of an accident. We have the largest selection of car cameras and back up cameras that fit every vehicle.

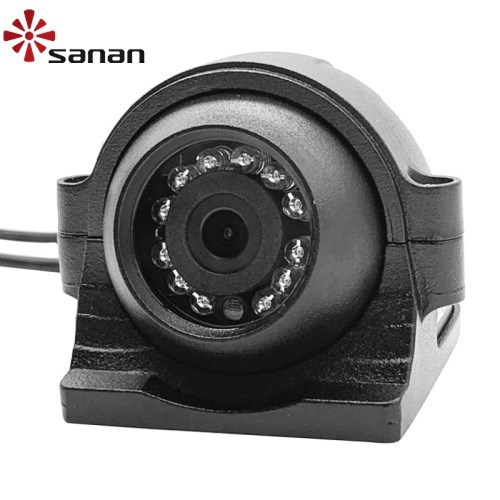

The Sanan A20M07K AHD vehicle camera /Car Surveillance Camera is used for side mounting, with an IP67 waterproof and vandal-proof housing, car CCTV camera suitable for outdoor applications. Suitable for models: buses, trucks, school buses, engineering vehicles, urban sanitation vehicles, etc.

Vehicle Surveillance Cameras product description：
● 1/4" or 1/3" AR0130 CMOS. AHD megapixel，day or night , imaging very clear.
● IP67 waterproof and Zinc alloy housing , very sturdy , last long time .
● A / B / C / D four viewing directions
● 12 LEDs, viewing distance 12m (optional)，night vision distance 8~15m .
● 3.6mm fixed lens (optional 2.8mm / 6.0mm fixed aperture lens)
● 2.8 mm / 3.6mm / 6.0mm fixed aperture lens (optional)
● Easy to install mechanical design
● Noise reduction technology
● Camera can be adjusted up and down , maximize view angle .
● Horizontal view angle 150°, wider visual angle ,easy to back your car.

Vehicle CCTV Camera parameters：

Image Sensor                 ： 1/3" CMOS
Horizontal Resolution     ： 1080P
IR LED                            ： 12pcs Φ5mm IR LED 850nm
IR Distance                     ： 10m-15m
Lens                                ： 2.5mm/2.8mm/3.6mm options
Scanning System            ： PAL/NTSC Options
Minimum Illumination       : 0Lux/IR On
S/N Ratio                        ： ≥48dB (AGC OFF)
Video Out                       ： Composite Signal (1.0Vp-p, 75Ω), BNC
Electronic Shutter Time  ：

Auto                                 : PAL 1/50-1/100, 000Sec;

NTSC                             ：1/60-1/100, 000Sec

Operation  Temperature ： -10°C~ +50°CRH95% Max
Sync System                  ： Internal Synchronization
White Balance                ： Auto
Power Supply                 ： DC 12-24V
N.W                                  :  0.25kg

Car CCTV Camera Features：
