4CH Dual SD card MDVR Vehicle Monitoring System
- Min. Order:
- 5 Set/Sets
- Min. Order:
- 5 Set/Sets
- Transportation:
- Ocean, Land, Air, Others
- Port:
- hongkong
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | MADE IN CHINA |
|---|---|
| Supply Ability: | 20000 |
| Payment Type: | Paypal |
| Incoterm: | EXW |
| Transportation: | Ocean,Land,Air,Others |
| Port: | hongkong |

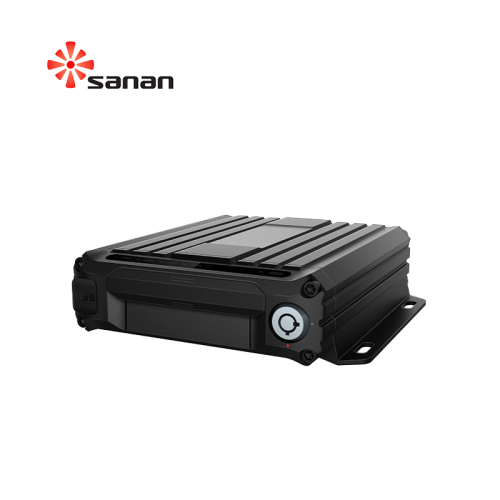

The SA-MH4104F series uses a mini body, which can be easily installed and used in small Spaces. Support dual SD card, effectively improve the storage space. The products are compatible with mainstream H.265 video decoding technology, 4G network technology, GPS/BD positioning technology, WIFI technology, etc., which are suitable for all kinds of road patrol vehicles, mixing trucks, logistics vehicles and other industrial vehicles.
l Support 4-channel video and 2-channel audio
l Support 4-channel AHD 1080P
l Support large-capacity SD card, up to 128G
l 8 to 36V wide voltage input, overload protection, short circuit protection, reverse connection protection
l Support WIFI function
l Quick startup
l Equipped with 4-channel synchronous playback analysis software
l Support function expansion, can connect oil volume, temperature, LED screen, etc.
l SD*2; GPS+4G
Product Features
【APC】With passenger flow statistics function: Adopt deep learning technology to realize real-time recognition and motion tracking of people in the collected images, so as to achieve passenger flow statistics with high accuracy
【AI algorithm】Integrated with AI ADAS+DMS+BSD algorithms, realizing driving assistance, fatigue monitoring, blind spot detection and other functions
【Video recording function】Full high definition image; Support multiple modes to trigger recording; Support 10s pre-record, convenient to obtain evidence
【H.264/H.265】Support dual compression, improving the usage of storage space and wireless network traffic
【Fleet management】PC/mobile terminal remote real-time monitoring, historical track and video query, dangerous events can be uploaded to the vehicle monitoring platforms to achieve efficient fleet management
【Support API expansion】MDVR can be linked to the server to provide API for customers to realize the docking with customer systems.
【Data Security】Super capacitor power-off protection, ensuring comprehensive data security
【IPC Input】Expandable 1-4 IPC camera inputs

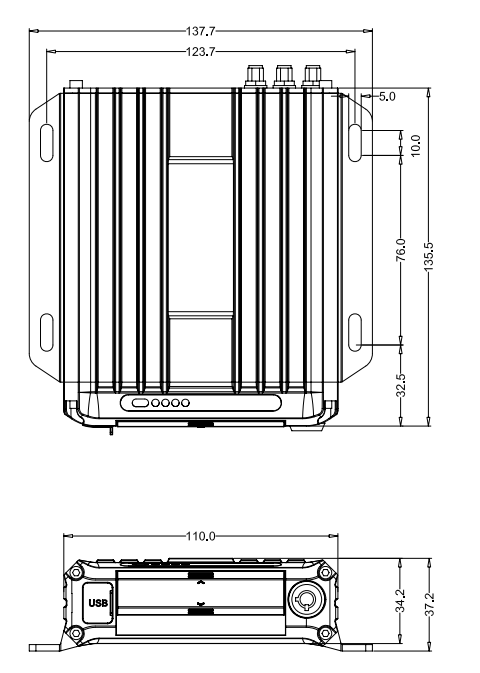

(Size)

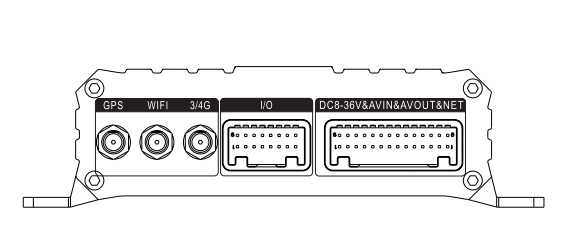

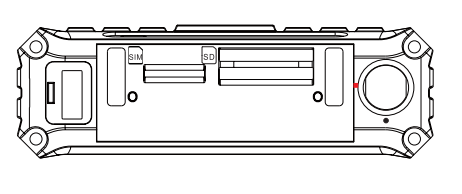

(Panel&interface)
Product Specification Parameters
|
Item |
parameters |
|
|
Audio and Video Inputs |
Video input |
AHD：4ch 1080/25fps IPC：Scalable 1-4ch |
|
Audio input |
3ch audio input，Mic input |
|
|
Audio and Video outputs |
Video output |
Default 1ch CVBS output (VGA output optional) |
|
Audio output |
1ch audio output |
|
|
Audio and video parameter coding |
video coding |
H.264 Main Profile/H.265 |
|
Resolution |
1080P/720P/D1 optional |
|
|
audio coding |
default G.726,G.711A optional |
|
|
storage space |
SD card |
support 2 SD card |
|
wireless network |
4G wireless |
support 1 SIM card，optional：All the major communication modules in the world |
|
WIFI |
2.4/5.8Goptional |
|
|
locate mode |
BD/GPS |
Positioning, speed detection, time synchronization |
|
Interface |
serial port |
Support 1 RS232, 1 RS485 can be external sensor |
|
I/O |
Support 4 level input, 1 output |
|
|
network interface |
Support external IPC, support hybrid NVR function |
|
|
USB |
USB2.0 interface, support export data, external engineering treasure |
|
|
Intercom |
1 special intercom hand mark interface |
|
|
Physical Specifications |
Size |
135.5mm（L）*137.7mm（W）*36.5mm（H） |
|
Weight |
NW：0.5kg GW：0.75 kg（SA-MH4104F-DGNE- L as a standard） |
|
|
work environment |
Operating Temperature |
-20〜+70℃ |
|
operating humidity |
· 8%〜90%（No condensation） |
|
|
Other |
operator schema |
Remote control |
|
· Gravity sensor |
Built in G-Sensor |
|
|
AI algorithm |
ADAS |
Lane departure detection, pedestrian detection, vehicle distance detection |
|
DSM |
Fatigue driving test and unsafe driving behavior test |
|
|
BSD |
Left blind area, right blind area detection |
|
|
APC |
Cooperate with passenger flow cameras |
|
