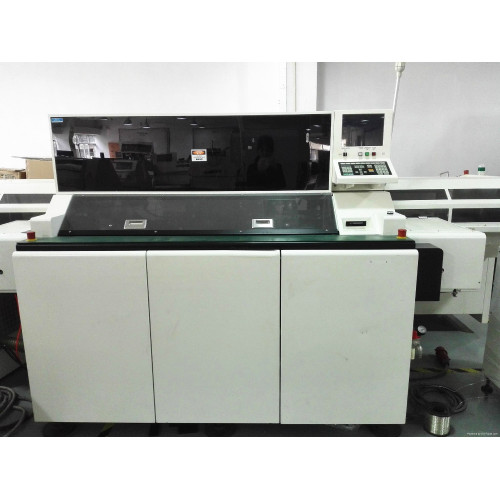

Panasonic Axial Lead Component Insertion Machine AVK2

Features

1.Longitudinal component feeders increase feeder carriage capacity for con-tinuous operation.

2.AVK2's Split feeder carriage system dramatically increases operation rate.

3.This is a variable pitch insertion machine, which still maintains the trade-mark random access system of the Panasert series.

    So a sequence tapingmachine is unnecessary, and reinsertion can be performed immediatelywith a single switch when an

    insertion error has occurred.

4.Self-correction function realizes high-quality insertion and high insertionrate.

5.The machine provides operation guidance on the color LCD screen, thusenabling interactive operation.

6.Information needed by the operator or for production management (errormessage, production management information, etc.)

   can be displayed onthe monitor and can be printed out.

7.The AVK can be combined and finked with other Panasert machines.

Machine Specifications

Applicable Electronic Parts	Taped axial lead parts (carbon resistor, cylindrical ceramic capacitor, solid resistor, diode and taping jumper wire) Jumper wire (optional) Refer to 'Insertion Part Specifications'  in this section for part dimensions.
No. of Part Inputs	1. Taping width 26 mm   •120 inputs (60 + 60) + Reel type jumper wire    (optional) 2. Taping width 52 mm (Pack width: Max. 80)   •120 inputs (60 + 60) + Reel type jumper wire   (optional) 3. Taping width 26 mm and 52 mm can be used.
Part Packaging	Flat pack
Insertion Angle	4 angles (X, Y, -X, -Y)
Insertion Tact Time	Max. tact time: 0.15 s/point Max. tact time conditions according to part type and insertion angle
	Applicable                                part Insertion  angle	Axial lead part	Jumper wire
	X direction (0°)	0.18 sec/point	0.15 sec/point
	Y direction (90°)	0.15 sec/point	0.22 sec/point
	-X direction (180°)	0.30 sec/point	-
	-Y direction (270°)	0.27 sec/point	-
	Other conditions for max. tact time   •Feeder carriage (both 26 and 52 mm component feeders)     fixed   •XY table movement: Max. 30mm for both X and Y     (However,within 15mm for both X and Y when there are parts     above 3mm high on the PC board. )
Pitch Switchover within the Tact	5 mm within the tact (0.15 sec/part)
Direction of PC Board Flow	Right to left
PC Board Replacement Time	Approx. 2 sec
Applicable PC Board Dimensions	Max. 508x381 mm            Min. 50x50 mm
Insertion Area	Max. 508x371 mm            Min. 50x40 mm
Insertion Pitch	5 to 26 mm (Can be set freely by 0.01 mm increments.) 5 to 26 mm for jumper wire (optional)
Insertion Height	Insertion height programmable according to the part diameter and lead diameter
Part Fixing System	Cut and Clinch system (piezoelectric detection system)
Clinching Angle	15° to 30° inner clinching
Clinching Length	1.2 to 1.8 mm Note:The above numerical range indicates the variation which arise          due to difference in the shape or material of insertion part          leadsand the diameter of holes of PC Boards.
