PH5.2-7.8 advertising Transparent LED Display side lighting

PH5.2-7.8 Advertising Transparent LED Display with side lighting 1000x500mm

●Main Specification

Pixel Pitch: Horizontal 5.2 mm  Vertical 7.8 mm

Pixel Density: 24576 dot/㎡

Cabinet Size:1000x500mm

Cabinet Resolution: 192*64 Pixel

Weight: 13kg / ㎡

View Angle: 160°/160°

Average power consumption : 100W/㎡

Max power consumption: 600W/㎡

Transparent rate: ≥72%

Refresh Rate(HZ): ≥1920HZ

Brightness: 5500 cd / ㎡

●Simple and fashion

Transparent led screen, simple and fashionable design and innovative technical elements. Improve the advertising effect and highlight

your own brands.

●Technical upgrades

Over 72% transparent rate favorable daylight effect, You can hardly see the screen, but you can see the image clearly in the air.

●Light,thin and durability

Cabinet material is polymethyl methacrylate+Super composite material, high durability and tension resistance. Cabinet weight 13kg/sqm, thickness is 20mm which very light weight.

●High Brightness, Good Permeability

PH5.2-7.8 Side luminous transparent screen brightness is 5500 cd / ㎡, transparent rate is 72%, high clear picture to ensure high quality output.

●Fast Installation and Easy to use

The Transparent screen with thin size and ultra-lightweight modules makes it easy to carry, transport and install. Everything is inbuilt, and you only need a simple screwdriver to install it in a few minutes.

●No noise

Special design with good heat dissipation and no noise.

●Cost saving

No steel structure is required and no complex support structures need to be changed, resulting in significant installation cost savings.

●Energy saving and environment friendly

The power consumption is 40% lower than a traditional common screen of the same size. A truly energy-efficient display.

●Application

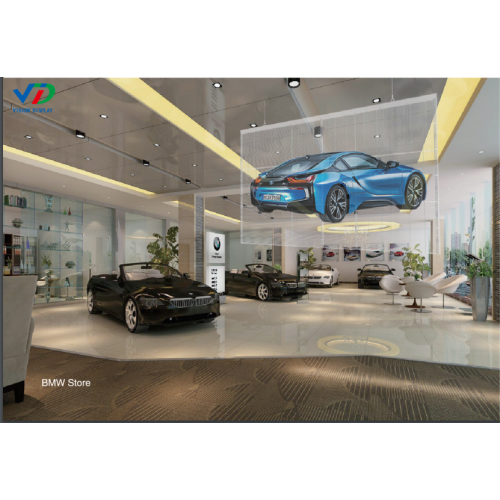

The PH5.2-7.8 Transparent LED Screen Suitable for Curtain wall building,Store window,Technology exhibition, Commercial space, Creative Presentation ect.

●Packing

In order to avoid product damage in transit, ensure the safety of the product. Our company uses wooden case packing or aviation case packing.

●Fastest Delivery and Best Online Services

Vision provides all-day online services to the clients,and we are always ready to assist you when you need us.Also,we take care of the safety of the products,we work with the leading logistics who ensure fastest and safest delivery of your products.

●After-sales service

1.Spare parts

We will send some spare parts for our clients after you take an order.

2.One or two years warranty

One or two years warranty for all led display.We are committed to free repair or replacement during warranty.

3.Lifetime maintenance

If our client can`t solve the technical problems,we will send our engineer to guide you to solve the problem by remote network operations for free.
