PH31.25-15.625 Outdoor LED Curtain screen

PH31.25-15.625 Outdoor LED Curtain screen

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB

Min. Order:: 1 Square Meter

Min. Order:: 1 Square Meter

Delivery Time:: 15 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen Yantian Port, Shenzhen Shekou Port, Shenzhen Fuyong Port

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	shenzhen,guangdong,china
Productivity:	1000㎡/day
Supply Ability:	300000㎡/year
Payment Type:	L/C,T/T
Incoterm:	FOB
HS Code:	4403960FZG
Transportation:	Ocean,Land,Air
Port:	Shenzhen Yantian Port,Shenzhen Shekou Port,Shenzhen Fuyong Port

Product Description

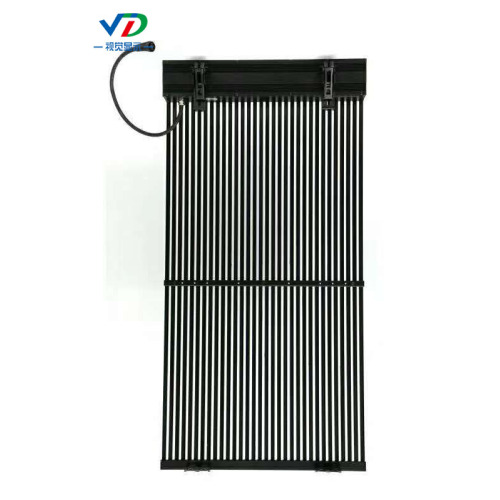

PH31.25-15.625 Outdoor LED Curtain screen

●Customized design

PH31.25-15.625 outdoor curtain led screen suitable for different places, can be customized according the needs.

Suitable for outdoor environment ,like high building roof, glass wall, stadium, shipping center, hotel, flyover etc.

Led Curtain Screen

●Main Specification

Item	Unit	Parameter
Type of product		PH31.25-15.625
Pixel pitch	mm	Horizontal 31.25 Vertical 15.625
Pixel configuration	DIP	1R1G1B
Resolution	dot/㎡	2048
Unit cabinet size	mm	500(W) X 1000(H)
Unit cabinet pixels	dot	1024
Unit cabinet resolution	dot	16(W) X64(H)
Unit cabinet weight	Kg/pc	6.5
Cabinet weight	kg/㎡	13
Unit cabinet thickness	cm	6.8
Installation thickness	cm	12.8 (including the frame thickness 6cm)
Max consumption	W/㎡	370
Average consumption	W/㎡	120
Screen brightness	CD/㎡	8000cd
Gray lever	bit	14
View angle	°	Horizontal ≥130° vertical ≥130°
The best view distance	m	15-200
Drive mode		current static drive
Input Voltage	VAC	100-240
Input Power frequency	HZ	50-60
Transparent rate	%	60%
IP rate	IP	IP67
Operating / Storage Temperature	°C	-20 ~ + 50°C / -55 ~ + 120°C
MTBF	H	≥100000H
Installation form		Tool free quick installation
Maintenance speed		10S / unit
Maintenance mode		Front side and Back side

●Light weight and thin

Led curtain screen thickness is only 68mm, 13kg/sqm of led curtain screen which lighter 30-60% to the traditional led display.

Reduce the construction load efficiency and reduce installation costs.

Light Weight And Thin

●High transparency

LED curtain screen with ventilation, light transmission design, to achieve led display and the air natural convection cooling, anti-typhoon and fireproof.

High Transparency

●resistance to harsh environment

Aluminum alloy cabinet structure with high strength, no deformation, anti-corrosion characteristic. Adapt to a variety of climatic conditions, especially high temperature, high humidity environment.

Resistance To Harsh Environment

●Packing

Case Packing

In order to avoid product damage in transit, ensure the safety of the product. Our company uses wooden case packing or aviation case packing.

●Fastest Delivery and Best Online Services

Fastest Delivery

Vision provides all-day online services to the clients,and we are always ready to assist you when you need us.Also,we take care of the safety of the products,we work with the leading logistics who ensure fastest and safest delivery of your products.

●After-sales service

After Sales Service
