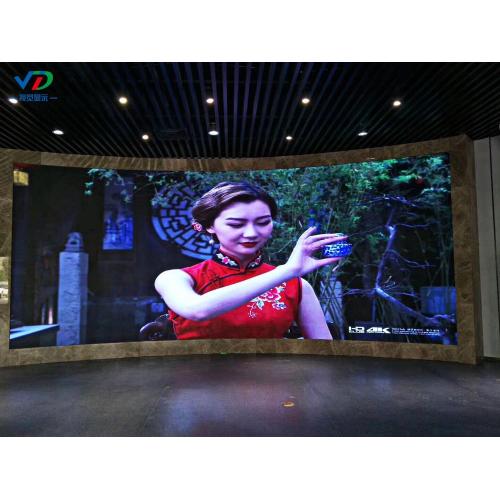

PH2 HD Small Pitch LED Display 512x512mm/640x640mm

LED display automatic brightness adjustment With automatic brightness adjustment function, you can get the best playback effect in different brightness environments.

PH2 HD Small Pitch LED Display 512x512mm/640x640mm

●Main Specification:

Pixel pitch:2mm

Pixel density: 250000dot/㎡

Module size(W*H): 256x 128 mm/320x 160 mm

Refresh rate: 1920HZ

Brightness: ≥ 1100 cd/㎡

Cabinet size: 512x512mm/640x640mm

Cabinet Material: Die-casting aluminum

View angle(H/V): 140°/140°

Operating Voltage: AC100V±10% or 220V ±10%; 50---60HZ

Power: 110V/220V±15% 50--60Hz

Protection level: IP43

Operating temperature: -20°C----+60°C

●FEATURES

1.Cabinet thickness <40mm;

2.Cabinet power no cascade output,lower risk of connection defectives;

3.Secondary class power supply design,low voltage power supply inside cabinet,high efficiency module power,low heat radiation;

4.The module apply magnesium alloy die-casting bottom base,good flatness,the bottom base dings;

5.Module intelligent detection and data;

6.Board-to-board professional connector for module and HUB,the performance is more reliable;

7.Control card and power supply using dual backup design,it can be applied to a variety of high demand places;

8.Concealed HDMI connection for signal more stable performance and cleaver joint;

9.Front and after maintenance for control cards;

10.High gray level,high refresh, high contrast,low brightness design.

●Small Pitch LED Display for Clearer Pictures

The Small Pitch LED Display uses small pixel modules which presents clearer and vivid images even in low brightness

and dark environments.

●Super light and slim

CNC precision processing 0.1mm ultra-light and ultra-thin, unit cabinet can easy to achieve 4: 3 or 16: 9 ratio, saving

cost of splicing.

●Easy installation and simple maintenance

The cabinet is composed of three parts: module, middle frame and back cover. The module adopts magnetic suction or

screw structure to facilitate installation and maintenance.

If there is a problem with the control card, it only needs a simple replacement and can be resumed.

●Strict Aging Test

All products have undergone a 72-hour aging test to ensure that without die lamps, moldless lamps, dimming lamps,

color aberration, Mosaic, to provide you with the best quality products.

●Application

PH2 LED Displays are widely used Urban Command System, Police Command System, Monitoring Security System,

High-end Exhibition, High-end Meeting, Commercial Display System, Information pressing System ect.

●Packing

In order to avoid product damage in transit, ensure the safety of the product. Our company uses wooden case packing,

Mobile display uses aviation case packing.

●Fastest Delivery and Best Online Services

Vision provides all-day online services to the clients,and we are always ready to assist you when you need us.Also,we take

care of the safety of the products,we work with the leading logistics who ensure fastest and safest delivery of your products.

●After-sales service

1.Spare parts

We will send some spare parts for our clients after you take an order.

2.One or two years warranty

One or two years warranty for all led display.We are committed to free repair or replacement during warranty.

3.Lifetime maintenance

If our client can`t solve the technical problems,we will send our engineer to guide you to solve the problem by remote network operations for free.
