PH1.25 HD Small Pitch LED Display 400x300mm

PH1.25 HD Small Pitch LED Display 400x300mm

●Main Specification:

Pixel pitch: 1.25mm

Pixel density: 640000dot/㎡

Module size(W*H): 200x 150 mm/400x 300 mm

Refresh rate: 1920HZ

Brightness: ≥ 1000 cd/㎡

Cabinet size: 400x300mm/600x337.5mm

Cabinet Material: Die-casting aluminum

View angle(H/V): 140°/140°

Operating Voltage: AC100V±10% or 220V ±10%; 50---60HZ

Power: 110V/220V±15% 50--60Hz

Protection level: IP43

Operating temperature: -20°C----+60°C

●FEATURES

1.Cabinet thickness <40mm;

2.Cabinet power no cascade output, lower risk of connection defectives;

3.Secondary class power supply design, low voltage power supply inside cabinet, high efficiency module power, low heat radiation;

4.The module apply magnesium alloy die-casting bottom base, good flatness, the bottom base dings;

5.Module intelligent detection and data;

6.Board-to-board professional connector for module and HUB, the performance is more reliable;

7.Control card and power supply using dual backup design, it can be applied to a variety of high demand places;

8.Concealed HDMI connection for signal more stable performance and cleaver joint;

9.Front and after maintenance for control cards;

10.High gray level, high refresh, high contrast, low brightness design.

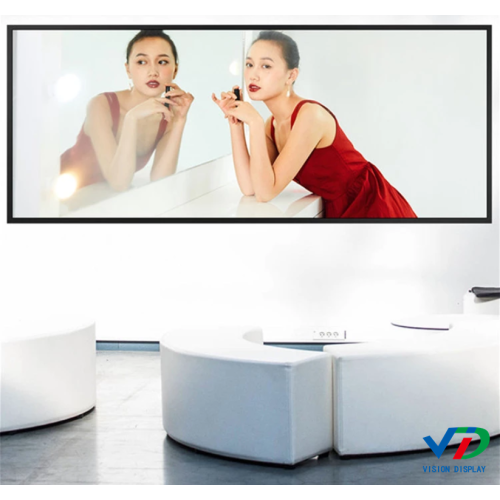

●Small Pitch LED Display for Clearer Pictures

HD small pitch pixel  screen uses small pixel modules which presents clearer and vivid images even in low brightness and dark environments.

●Super light and slim

CNC precision processing 0.1mm ultra-light and ultra-thin, unit cabinet can easy to achieve 4: 3 or 16: 9 ratio, saving cost of splicing.

●Easy installation and simple maintenance

The cabinet is composed of three parts: module, middle frame and back cover. The module adopts magnetic suction or screw structure to facilitate installation and maintenance.

If there is a problem with the control card, it only needs a simple replacement and can be resumed.

●Strict Aging Test

All Hd Digital Led Display products have undergone a 72-hour aging test to ensure that without die lamps, moldless lamps, dimming lamps, color aberration, Mosaic,to provide you with the best quality products.

●Application

PH1.25 Digital Led Displays are widely used Urban Command System, Police Command System, Monitoring Security System, High-end Exhibition, High-end Meeting, Commercial Display System, Information pressing System ect.

●Packing

●Fastest Delivery and Best Online Services

In order to avoid product damage in transit, ensure the safety of the product. Our company uses wooden case packing, Mobile display uses aviation case packing.

Vision provides all-day online services to the clients, and we are always ready to assist you when you need us. Also, we take care of the safety of the products, we work with the leading logistics who ensure fastest and safest delivery of your products.

●After-sales service

1.Spare parts

We will send some spare parts for our clients after you take an order.

2.One or two years warranty

One or two years warranty for all led display. We are committed to free repair or replacement during warranty.

3.Lifetime maintenance

If our client can`t solve the technical problems, we will send our engineer to guide you to solve the problem by remote network operations for free.
