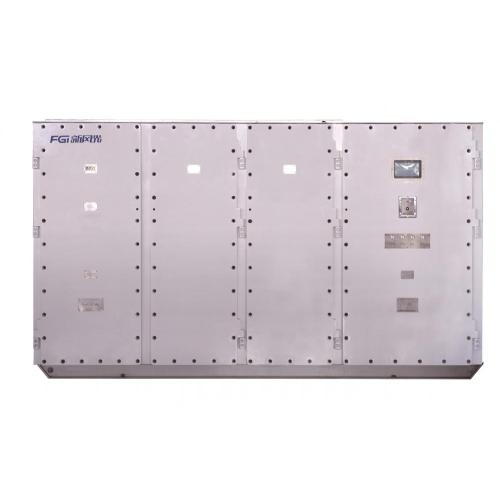

3.3kV / 6kV / 10kV mine flameproof and intrinsically safe frequency converter series

$40000.00

≥1 Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Land, Ocean

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T
Incoterm:	FOB,CIF
Transportation:	Land,Ocean

Product Description

Product overview

The product adopts SPWM technology, high-performance V / F control and speed sensor-less vector control technology, multi-unit cascade topology structure, equipped with dry film capacitor, cold resistance

The water cooling mode is adopted; It is suitable for 6kV or 10kV input voltage power supply, 3.3kV, 6kV, 10KV voltage level motor drive control, especially suitable for coal mine

It can be used for long-distance drive control of heavy-duty motors such as high-power scraper conveyor, crusher, transfer machine and belt conveyor; It has the advantages of large starting torque, high power factor and soft start

It has many excellent characteristics, such as dynamic, long-distance power supply, multi machine power balance function and so on.

Product structure

3 3 6 10 Enclosure Back

Product features

High speed DSP control core adopts SPWM modulation technology;

Using space voltage vector control technology, it has the advantages of small starting current, large output torque, smooth speed regulation, small impact on power grid and easy centralized control;

The built-in PID function can adjust the voltage and frequency of the motor working power supply according to the change of the motor load or the change of external variables (such as pipeline pressure), so as to achieve the desired goal torque demand, obvious energy saving effect, economic and stable operation;

Using power unit series multilevel technology, high reliability and easy operation;

Meet all kinds of load speed regulation requirements of users, improve the production process;

The harmonic index is far less than the harmonic standard of IEEE 519-2014, the input power factor is high, the output waveform quality is good, and it is unnecessary to use the input harmonic filter and power factor compensation

Compensation device and output filter; There are no additional heating, torque ripple, noise, output DV / DT, common mode voltage and other problems caused by harmonics.

Perfect protection mechanism: the power unit includes a variety of protection functions, such as phase loss, over-voltage, over-current, under voltage, communication fault, etc. The machine can still bypass automatically; The whole machine protection includes input over-voltage, input under voltage, output phase loss, software over-current, motor overload, output short circuit, instantaneous power failure and leakage current lock, insulation monitoring, protective grounding, power electronic power device overheating and other protection functions.

Current limiting technology: if the current exceeds the limit value, the increase of current is limited by frequency reduction until the current is less than the limit value, the frequency converter returns to normal operation frequency.

Acceleration and deceleration adaptive function: the product adjusts the acceleration time or limits the motor operation frequency according to the motor current, so as to limit the current and realize no over current during acceleration and deceleration. In the process of frequency reduction, the frequency reduction time is adjusted according to the bus voltage, so as to achieve the function of no overvoltage in the process.

Vibration suppression function: when the motor is under light load or no-load, local instability will occur. At this time, the current amplitude fluctuates greatly, which may cause the system to be damaged by over-current or over-voltage trigger protection and current oscillation suppression function can effectively suppress the current oscillation and ensure the stable and reliable operation of the system.

Over voltage stall Technology: in the process of frequency reduction, the motor is in power generation state, forcing the bus voltage to be raised. This function will automatically lengthen the frequency reduction time to prevent the shutdown problem caused by bus overvoltage.

Technical parameter

Input

Phase, Frequency, Voltage

Three phase, 50/60Hz、3.3kV/6kV/10kV

Tolerance

Supply voltage ± 20%，50～60Hz ± 5%, voltage unbalance rate < 3%

Output

Rated voltage

3.3kV/6kV/10kV

Rated current

100% rated current continuous

Output frequency

0～120Hz

Output waveform

Multiplex SPWM sine wave

Basic control performance

Control mode

V/F, SVC

Carrier frequency

0.5kHz~16kHz(can be adjusted automatically according to the load)

Frequency resolution

Digital setting: 0.01Hz Analog setting: maximum frequency × 0.025%

Speed range

1:100（SVC）

Steady speed accuracy

± 0.5%（SVC）

Torque control accuracy

± 5%

Overload capacity

150% / 1min (120% - 250% optional)

Torque boost

Automatic torque boost; Manual torque boost by 0.1% ～ 30.0%

Simple PLC, multi speed operation

built-in PLC or control terminal to achieve up to 16 speed operation

Built-in PID

can easily realize the closed-loop control

Automatic voltage regulation (AVR)

keeps the output voltage constant when the grid voltage changes

Over voltage and over current stall control

Automatically limited during operation to prevent frequent over-voltage and over-current fault tripping

Fast current limiting function

Minimize the over-current fault and protect the normal operation of frequency converter

Torque limitation and control

Automatically limited torque during operation to prevent frequent over-current trip.

Special functions

Point to point communication

Can realize master-slave control

Multi communication protocol

Modbus, Canlink and Ethernet

Fast current limiting

Avoid frequent over-current fault of frequency converter

Motor type

AM,PM motor

Input

Digital input

8 channels

Analog input

4 channels:0-10V/2-20mA selectable

Output

Digital output

6 channels

Analog output

4 channels: 0-10V/2-20mA selectable

Protection

Over voltage, under voltage, over-current, overload, short circuit, over temperature, leakage blocking, lack of phase protection and other functions

Running

Control command

Keypad, Terminal, Communication(switching)

Speed command

10 kinds of frequency sources: digital, analog voltage, analog current, communcation. It can be switched in many ways

Display

LED display

Display setting parameters

HMI

Display operation status: output frequency, output current, temperature, operation curve, alarm information, fault analysis, etc

Environment

Location

Underground coal mine, no corrosive gas, in the environment with explosive mixture of coal dust and gas, in the environment without damaging the insulation of gas or steam.

Altitude

Less than 2000 meters; atmospheric pressure is (0.08 ~ 0.11) MPa;

Temperature

0 ℃ ~ + 40 ℃ (above 40 ℃, derating)

Humidity

Less than 95% RH (+ 25 ℃), no condensation

Vibration

In the place without significant vibration and impact

Storage temperature

- 20 ℃～ + 60 ℃

Structure

IP degree

IP54

Explosion proof grade

Exd [ib] I Mb

Cooling method

Water cooling

Model No.

Dimension

Outline dimension diagram

3.3kV series mine flameproof and intrinsically safe inverter

Model No.	Rated power(kW)	Rated input voltage(kV)	Rated output voltage(kV)	Running quadrant	Cooling mode	Dimension
Model No.	Rated power(kW)	Rated input voltage(kV)	Rated output voltage(kV)	Running quadrant	Cooling mode	W	H	D
BPBJV1-525/10/3.3 ~BPBJV1-2000/10/3.3	525~2000	10	0~3.3	Two quadrant	Water cooling	3494	1748	1500
BPJ1-3×525/3.3 ~BPJ1-3×2200/3.3	3×(525~2000)	3.3	0~3.3	Two quadrant	Water cooling	3900	1400	1300

6kV / 10kV series mine flameproof and intrinsically safe inverter

Model No.	Rated power(kW)	Rated input voltage(kV)	Rated output voltage(kV)	Running quadrant	Cooling mode	Dimension
Model No.	Rated power(kW)	Rated input voltage(kV)	Rated output voltage(kV)	Running quadrant	Cooling mode	W	H	D
BPJV1-710/6 ～BPJV1-1200/6	710～1200	6	0～6	Two quadrant	Water cooling	3600	1800	1400
BPJV1-710/10 ～BPJV1-2000/10	710～2000	10	0～10	Two quadrant	Water cooling	3600	1800	1400

Note:

1. The above dimensions are for reference only, please refers to the real object for details;

2. Due to product upgrading, the contents of this manual will be updated regularly. If you need to buy our products, please refer to the latest product manual;

Applications:

Explosion proof variable frequency speed regulation is a high efficiency and high performance speed regulation mode. By controlling the asynchronous motor (or synchronous machine), it can realize step-less smooth speed regulation and meet the requirements of various production machinery. The use of variable frequency speed regulation in coal mine has become the current trend of mine equipment speed regulation. The main equipment loads of explosion-proof inverter used in underground are: belt conveyor, scraper, winch (monkey car), shearer, all kinds of fans, water supply and drainage pump, emulsion pump, etc.;

The explosion-proof frequency converter is suitable for the speed regulating operation of the motor driven by various mining, transportation, ventilation, drainage and other equipment under the condition of coal dust and gas explosion gas content not exceeding the specified safety content in the coal mine, realizing the functions of motor heavy load soft start and soft stop, step-less speed regulating, energy feedback and energy saving.
