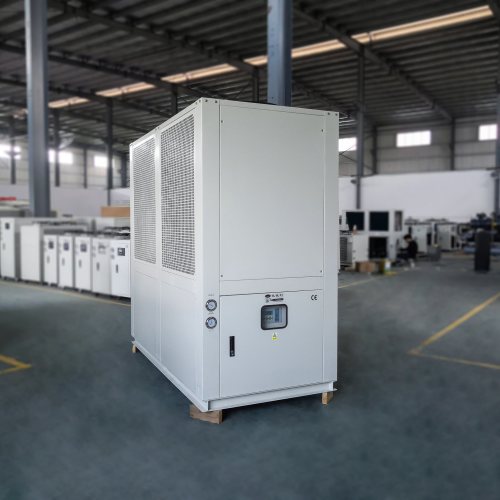

Air Water Industrial Chiller Price
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CFR, CIF, EXW, FCA
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Shekou, Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 500sets/Mont3 |
| Supply Ability: | 500sets/Mont3 |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,EXW,FCA |
| Certificate: | ISO9001 |
| HS Code: | 8418692090 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Shekou,Yantian |
Design Features:
¨ W shape aluminum fin type condenser, assuring adequate heat exchanging area within smaller unit size
¨ High efficient evaporator with internal thread copper tube.
¨ Large air volume axial fan with metal blades. Motor separated from net-cover, fixed on exhaust port by metal
¨ Siemens PLC control, LCD touch screen interface.
¨ Standard design charged R22, CFC Free R407C, R410A,R404A,R134A for option.
¨ 380V-415V/50HZ 3PH for standard design. Different design on customers' request.
| Model |
KDCS
-050
|
||
| cooling capacity | kW | 148.0 | |
| 50HZ | |||
| kcal/h | 127,280 | ||
| 50HZ | |||
| Input power | kW | 48.2 | |
| Chilled fluid flow | m3/h | 43.8 | |
| Power | 3PH-380V-50HZ（200V/220V/415V 50HZ/60HZ） | ||
| Compressor | Type | Hermetic scroll type (Piston) | |
| Start-up mode | Sequential start | ||
| Power(kW) | 22.5 | ||
| Refrigerant | Type | R-22(R407c/R134a) | |
| Control mode | Expansion valve | ||
| Filling amount(kg) | 26.0 | ||
| Evaporator | Type | Shell and Tube | |
| Pipe | B | PT 3" | |
| Condenser | Type | High efficient finned copper tube | |
| Surface area / row(M2) | 4.52/3R | ||
| Cooling fan | Type | Low noise axial flow(Low noise outer rotor fan) | |
| Air wolume(CMM) | 940 | ||
| Power(kW) | 1.1x4 | ||
| Protective device | Compressor overheating,over current,high and low pressure,over temperature,flow switch,phase sequence,phase-missing,exhaust overheating,anti-freezing. | ||
| Dimension | L | mm | 2450 |
| W | mm | 2300 | |
| H | mm | 1900 | |
| Weight | kg | 1680 | |
FAQ:
Q1. Do you have any MOQ limit for chiller?
A: Low MOQ, 1pc for sample checking is available.
Q2. How do you ship the goods and how long does it take to arrive?
A: We usually ship by sea, Asia place cost within 10 days, other places some 15days,
or 30 days, or 45 days if too far, DHL, UPS, Fedex or TNT are also available.
Q3. Do you offer guarantee for the products?
A: Yeas, we offer 12 months warranty to our products.
Q4: Where the application?
A: Our products have been widely used in many industries, like machine tool, data processing,
telecommunications, financial, metallurgy, medical, building material, cars and war industry and etc.
Q5: Are your products can be customized?
A: Yes. Also welcomed to customized non-standard products, can achieve to -180 degree Celsius.
Q6: Whats your payment term?
A: International term-30% deposit for production, 70% balance before shipment.
