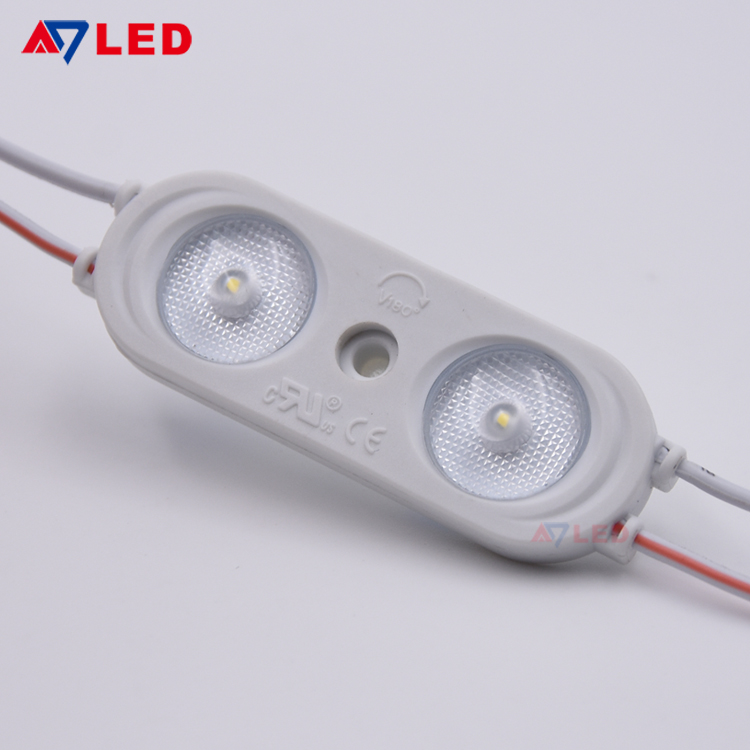

Adled smd2835 white led backlight led module 12v for frame signs

Adled smd2835 white led backlight led module 12v for frame signs



Parameters:

Name	Super bright SMD2835 led module
Model	AD6221-2835-2
Led type	SMD 2835 LED
Work voltage	DC12V
Power	2W
Led QTY	2leds
Beam angle	180°
IP grade	IP67
Lumen	200lm
Size	62*21*8.1 mm
Warranty	5 years
HS code	9405409000
Other service	OEM & ODM,One to One communication,Free Samples
Application	Recommended depth 8-25cm channel letters and light boxes



Features:

1. Top-tier LED chip

2. DC12V low-voltage power supply,security and energy efficiency

3. Micro prism lens producing a wide, even light spread,Max:P:D=3.5:1

4. Versatile mounting options

5. Constant Current Technology

6. 180 degree lens





Comparison of lens and luminous efficiency:

Led module light distribution graph:



Mode of connection:





Related Products:



Applications:

12v 2835 smd led module light suitable for channel letter lighting
12v 2835 smd led module light suitable for lightbox lighting source
12v 2835 smd led module light suitable for advertising signs
12v 2835 smd led module light suitable for led signage
12v 2835 smd led module light suitable for exterior and interior banner lighting
12v 2835 smd led module light suitable for commercial signs
12v 2835 smd led module light suitable for decorative lights
12v 2835 smd led module light suitable for indoor and outdoor illuminated signs
