36W 24V 1500mA Constant Voltage Led Lighting Driver
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Air, Express, Land, Others
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 300000 |
| Supply Ability: | 500000 |
| Payment Type: | T/T,Paypal,Others |
| Incoterm: | FOB,EXW,Express Delivery,DDP,DDU |
| Certificate: | ISO9001:2015, UL, CE, RoHS... |
| HS Code: | 850440 |
| Transportation: | Ocean,Air,Express,Land,Others |
| Port: | Shenzhen |

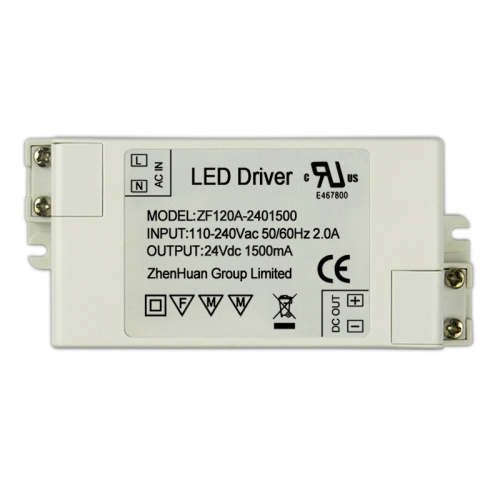

36W 24V 1500mA Constant Voltage Led Lighting Driver
The constant voltage led driver is a low cost, 36W 24vdc 1500ma single output AC/DC LED power supplies. The led power supply using rectangular plastic material case with IP20 level for indoor led products use. Featuring UL/cUL Class 2 rated and exploiting Class II design (without FG pin). The Led driver 24v 1.5a also provides over voltage protection, over current protection, over power protection and short circuit protection and 1 year warranty.
Features
◆ Constant voltage design
◆ Rectangular plastic case with IP20 level
◆ Universal AC input / Full range
◆ Protections: Short circuit / Over voltage / Over current
◆ Class II power (without earth pin)
◆ Class 2 power unit
◆ Suitable for indoor LED lighting and moving sign applications
◆ 1 year warranty
Specifications
|
Color: White |
| Dimensions LxWxH (in): 4.134 x 1.929 x 1.259 |
| Dimensions LxWxH (mm): 105 x 49 x 32 |
| Input: 100-240V AC±10% 47~63Hz |
| Output type: DC and Single output |
| Working Environmen: 0℃-40℃ (0%-90%RH) |
| Storage Environment:-20℃-60%℃ (0%-90%RH) |
| Load Regulation: ±5% |
|
RoHS Compliant: Yes |
| Ripple & Noise(max): < 150mVp-p |
|
Safety Approvals: UL/cUL 8750 FCC CE ...
Mechanical Specification
|
Package
Piece/Carton(pcs)
Dimension/Carton(mm)
Dimension/White Box(mm)
Piece Weight(KG)
Gross Weight/Carton(KG)
OEM package
100
295 x 270 x 225
100 x 55 x 24
0.14
15
