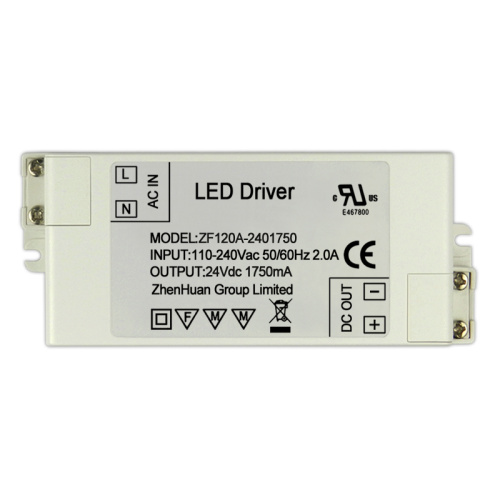

42W 24VDC 1.75A ZF120A-2401750 LED Bulb Driver
The single output led driver is one 42W 24V DC 1750mA constant voltage mode single output AC/DC LED power supplies. It accepts the universal AC input range from 90VAC to 264VAC and provides three models with different output voltage, 5V, 12V, 24V, 36V respectively, that the small wattage LED applications employ the most frequently. ZF120A-2401750 LED driver is a Class II design without FG pin and adopting the 94V-0 flame retardant plastic enclosure, led power driver is suitable for LED relatedfixture or appliance.
Features
◆ Constant voltage design
◆ Rectangular plastic case with IP20 level
◆ Universal AC input / Full range
◆ Protections: Short circuit / Over voltage / Over current
◆ Class II power (without earth pin)
◆ Class 2 power unit
◆ Suitable for indoor LED lighting and moving sign applications
◆ 1 year warranty
Specifications
|
Color: White |
| Dimensions LxWxH (in): 4.724 x 1.574 x 1.259 |
| Dimensions LxWxH (mm): 120 x 50 x 32 |
| Input: 100-240V AC±10% 47~63Hz |
| Output type: DC and Single output |
| Working Environmen: 0℃-40℃ (0%-90%RH) |
| Storage Environment:-20℃-60%℃ (0%-90%RH) |
| Load Regulation: ±5% |
|
RoHS Compliant: Yes |
| Ripple & Noise(max): < 150mVp-p |
|
Safety Approvals: UL/cUL 8750 FCC CE ...
Mechanical Specification
|
Package
Piece/Carton(pcs)
Dimension/Carton(mm)
Dimension/White Box(mm)
Piece Weight(KG)
Gross Weight/Carton(KG)
OEM package
50
380 x 290 x 145
55 x 35 x 125
0.165
10
