6W 12V 0.5A Mini Constant Voltage LED Driver
-
$1.80≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Air, Express, Land
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Supply Ability: | 500000 |
|---|---|
| Payment Type: | T/T,Paypal,Others |
| Incoterm: | FOB,EXW,Express Delivery |
| Transportation: | Ocean,Air,Express,Land |
| Port: | Shenzhen |

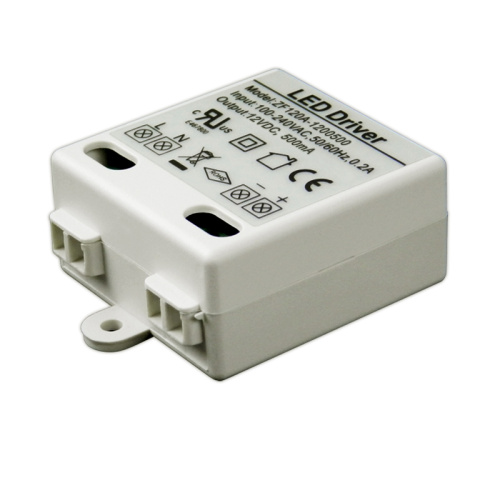

6W 12V 0.5A Mini Constant Voltage LED Driver
The mini LED Driver is one low cost, 6W 12Volt 500ma constant voltage mode single output AC/DC LED lighting power supply. This HS Code led driver is class 2 power rated (without FG pin), accepts 110VAC to 240VAC full range AC input voltage and adopts stable raw material purchasing. The led strip driver use square plastic case with IP20 level suitable for the entry-level LED applications. The LED power supplies also passed UL/cUL CE RoHS certifications.
Features
◆ Constant voltage design
◆ Square plastic case with IP20 level
◆ Universal AC input / Full range
◆ Protections: Short circuit / Over voltage / Over current
◆ Class II power (without earth pin)
◆ Class 2 power unit
◆ Suitable for indoor LED lighting and moving sign applications
◆ 1 year warranty
Specifications
|
Color: White |
| Dimensions LxWxH (in): 1.653 x 1.574 x 0.787 |
| Dimensions LxWxH (mm): 42 x 40 x 20 |
| Input: 100-240V AC±10% 47~63Hz |
| Output type: DC and Single output |
| Working Environmen: 0℃-40℃ (0%-90%RH) |
| Storage Environment:-20℃-60%℃ (0%-90%RH) |
| Load Regulation: ±5% |
|
RoHS Compliant: Yes |
| Ripple & Noise(max): < 150mVp-p |
|
Safety Approvals: UL/cUL 8750 FCC CE ...
Mechanical Specification
|
Package
Piece/Carton(pcs)
Dimension/Carton(mm)
Dimension/White Box(mm)
Piece Weight(KG)
Gross Weight/Carton(KG)
OEM package
200
490 x 235 x 145
43 x 22 x 60
0.045
10
