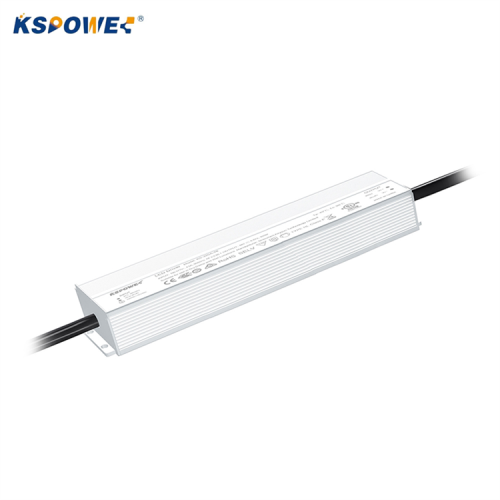

KSPOWER Single Output 240W 12V IP67 power supply
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Air, Express, Land, Others
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 300000 pcs/month |
| Supply Ability: | 300000 pcs/month |
| Payment Type: | T/T,Paypal,Others |
| Incoterm: | FOB,EXW,Express Delivery,DDP,DDU |
| Certificate: | ISO9001:2015, UL cUL CE GS FCC RoHS |
| HS Code: | 850440 |
| Transportation: | Ocean,Air,Express,Land,Others |
| Port: | Shenzhen |
The KSPOWER - H series non dimming LED driver 240 Watt 12 Volt is one black color, universal AC input voltage range from 100V-277VAC constant voltage led driver certified to meet UL cUL and CE GS safety approvals. The led power supplies 12V use low profile aluminum case with junction box makes led dc driver the power solutions for LED strips, LED sign, billboard and landscape lighting. Featuring built-in PFC function and NEMA 3R / IP65 IP67 environment Protection Rating for indoor or outdoor use, the H series 12VDC LED non dimmable drivers provide 5 years warranty and outstanding led lighting peformance.
Features:
． Super compact Aluminum case
． UL/cUL CE GS FCC RoHS LPS
． IP65 - Outdoor Use
． Flicker free
． Auto-Reset Protection for input/output overvoltage protection, input/output overcurrent protection, over temperature
protection, over power protection and short circuit protection
Specification:
| Input Voltage |
100~277V AC 47~63Hz |
|||
| Power Factor |
PF≧0 98/115VAC, PF≧0 95/230VAC, PF≧0.9/277VAC, full load |
|||
| Output Voltage | 12VDC | 24VDC | 36VDC | 48VDC |
| Rated Current | 20A | 10A | 6.67A | 5A |
|
Rated Power |
240W | |||
|
Ripple & Noise (max.) |
200mVp-p |
250mVp-p |
250mVp-p |
250mVp-p |
| Dimenion |
367*68*41mm(L*W*H)
|
|||
Wiring Connect Drawing:
Dimension Drawing:
Package
Piece/Carton(pcs)
Dimension/Carton(mm)
Dimension/Brown Box(mm)
Piece Weight(KG)
Gross Weight/Carton(KG)
OEM package
15
400 x 400 x 165
382 x 74 x 45
1.46
22.5
