48V/60W Outdoor LED Power Driver with High PFC
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Air, Express, Land, Others
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 300000 pcs/month |
| Supply Ability: | 300000 pcs/month |
| Payment Type: | T/T,Paypal,Others |
| Incoterm: | FOB,EXW,Express Delivery,DDP,DDU |
| Certificate: | ISO9001:2015, UL/cUL CE GS FCC RoHS Listed |
| HS Code: | 850440 |
| Transportation: | Ocean,Air,Express,Land,Others |
| Port: | Shenzhen |

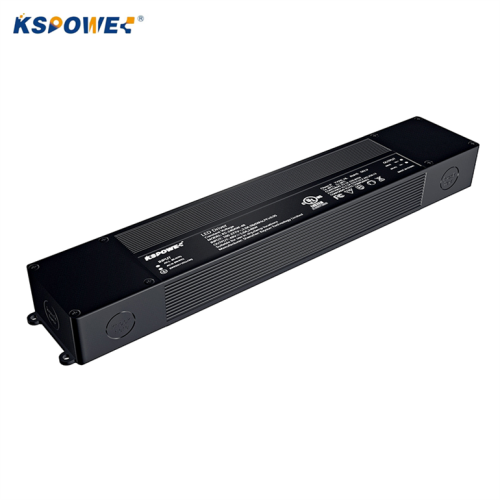

The KSPOWER - H series Non-dimmable LED driver 60Watt 48Volt is one black color, universal AC input voltage range from 100V-277VAC constant voltage waterproof led driver certified to meet UL cUL Class 2 and CE GS safety approvals. The 48v led power driver use low profile aluminum case with junction box makes 48 voltage outdoor led driver the power solutions for LED strips, LED sign, billboard and landscape lighting. Featuring PFC function of up to 0.95 and higher, IP65 environment Protection Rating for indoor or outdoor use, the H series non dimmable led power supply provide 5 years warranty and outstanding led lighting peformance.
Features:
． Super compact Aluminum case
． UL/cUL CE GS CLASS 2 FCC RoHS LPS
． IP65 - Outdoor Use
． Flicker free
． Auto-Reset Protection for input/output overvoltage protection, input/output overcurrent protection, over temperature
protection, over power protection and short circuit protection
Specification:
| Input Voltage |
100~277V AC 47~63Hz |
|||
| Power Factor |
PF≧0 98/115VAC, PF≧0 95/230VAC, PF≧0.9/277VAC, full load |
|||
| Output Voltage | 12VDC | 24VDC | 36VDC | 48VDC |
| Rated Current | 5.0A | 2.5A | 1.6A | 1.25A |
|
Rated Power |
60W | |||
|
Ripple & Noise (max.) |
200mVp-p |
250mVp-p |
250mVp-p |
250mVp-p |
| Dimenion |
297*58*36mm(L*W*H)
|
|||
Wiring Connect Drawing:
Dimension Drawing:
Package
Piece/Carton(pcs)
Dimension/Carton(mm)
Dimension/Brown Box(mm)
Piece Weight(KG)
Gross Weight/Carton(KG)
OEM package
20
355 x 330 x 195
313 x 64 x 40
0.8
17
