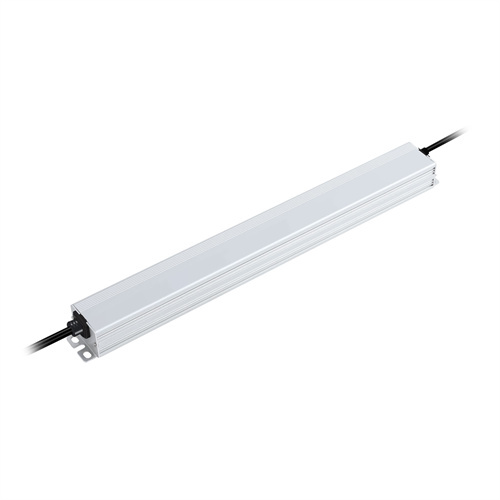

36V 0-10V 1-10V Dimmable Outdoor LED Driver 60W

KSPOWER LO SERIES – CONSTANT VOLTAGE
The LO series 4 IN 1 Dimmable LED Drivers is one 60W slim Class 2, Class P, TYPE HL, 0-10V / 1-10V / Resistance / PWM dimmable LED driver compatible with most AC wall dimmers including Lutron, Leviton and most other household dimmers making it the perfect choice for LED tape lighting, tube lighting, linear lighting and multiple other commercial lighting applications. The LO series 36V LED drivers is also available in a non-dimmable version.The UL cUL FCC CE Listed led driver aluminum enclosure is rated IP65 for indoor or outdoor installations and includes a separate input and output wiring compartment for clean and easy installation. The RoHS LED driver transformer features hiccup mode, over current and short circuit protections, as well as an efficiency over >88% resulting in a low operating case temperature.

Universal 100-277VAC Input | Single Channel 12V, 24V, 36V, 48V Output | Listed Enclosure

Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use

Output Voltage: 12Volt, 24Volt, 36Volt, or 48Volt

Enclosure: LISTED Enclosure

Dimming:  PWM, 0/1-10V or Resistor Dimmable; Non-Dimmable Available

Environmental: Dry and Damp

IP Rating: IP65 IP67

Features:

• Ultra slim height to 24.5mm

• Wiring Compartments with Knock-Outs for Clean and Easy Installation

• Current Limiting Overload Protection

• Flicker-Free

• Smooth Ripple Free Output Voltage

• IP65 IP67 Rated Enclosure for Indoor and Outdoor Use

• 5-Years Warranty

• UL/cUL CE FCC RoHS Listed, SELV, Type HL

Wiring Drawing OPTIONS:

Dimension Drawing(mm):

Package:
