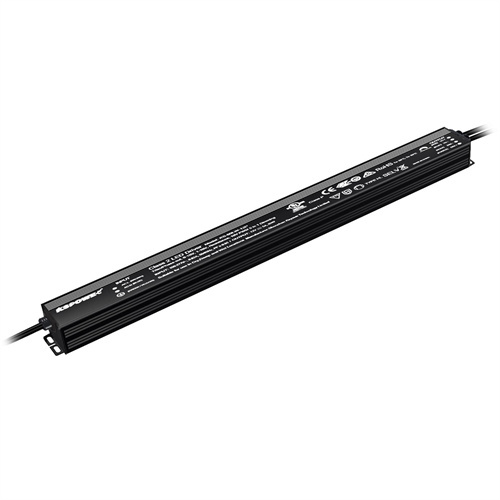

24V96W Class 2 0/1-10V Dimming Slim LED Driver

KSPOWER LO SERIES – CONSTANT VOLTAGE
The LO series 4 IN 1 Dimmable LED Driver is one 96Watt 24Volt slim SELV, Class 2 Class P, TYPE HL, 0-10V / 1-10V / Resistance / PWM dimmable LED driver compatible with most AC wall dimmer including Lutron, Leviton and most other household dimmers making it the perfect choice for tape lighting, tube lighting, linear lighting and multiple other commercial lighting applications. The UL cUL Class 2 FCC CE Listed led driver aluminum enclosure is rated IP65 IP67 for indoor or outdoor installations and includes a separate input and output wiring compartment for clean and easy installation. The 24VDC LED driver transformer features hiccup mode, over current and short circuit protection, as well as an efficiency over >88% resulting in a low operating case temperature.

Universal 100-277VAC Input | Single Channel 12V, 24V, 36V, 48V Output | Listed Enclosure

Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use

Output Voltage: 12Volt, 24Volt, 36Volt, or 48Volt

Enclosure: UL Class 2 LISTED Enclosure

Dimming:  PWM, 0/1-10V or Resistor Dimmable; Non-Dimmable Available

Environmental: Dry and Damp

IP Rating: IP65 IP67

Features:

• Ultra slim height to 24.5mm

• Wiring Compartments with Knock-Outs for Clean and Easy Installation

• Current Limiting Overload Protection

• Flicker-Free

• Smooth Ripple Free Output Voltage

• IP65 IP67 Rated Enclosure for Indoor and Outdoor Use

• 5-Years Warranty

• UL/cUL FCC CE Listed, SELV, Type HL

Wiring Drawing:

Dimension Drawing(mm):

Package:
