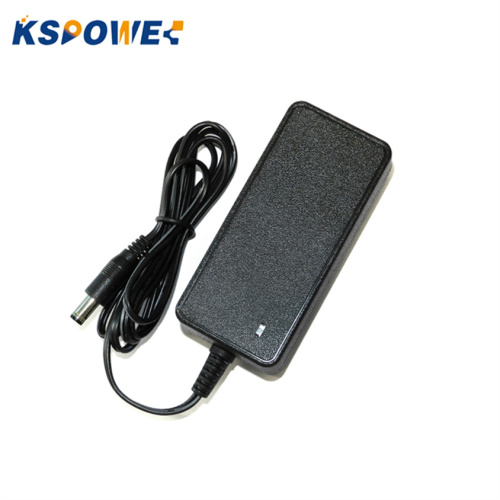

8.4V DC 3.5A Power Charger for Aromatherapy Machine

8.4V DC 3.5A Power Charger for Aromatherapy Machine

The ac to dc battery charger is a constant voltage and constant current mode, 8.4VDC 3.5A for 2S li-ion batteries full range ac input charger adapter with 3 years warranty. The charger power adapter have led indicators for power on, when the red light is charging, the green light is full. The external power supply is designed to meet US DoE Level VI efficiency standards, low no-load power sonsumption less than 0.15w. The li-ion battery charger is our latest charger product, includes 8 safety protections for over voltage, over current and short circuit.

Features

◆ Desktop style, charger for Li-ion batteries(lithium iron and lithium manganese)

◆ Constant voltage and constant current mode

◆ Universal AC input/ Full range

◆ Level VI energy efficiency

◆ Protections: Short circuit / Over voltage / Over current

◆ Class II power (without earth pin): IEC320-C8;

ClassⅠpower(with earth pin): IEC320-C6 or IEC320-C14

◆ Compact Size, fully enclosed plastic case

◆ 2 colors LED indicator for charging status(Green and Red light)

◆ 100% full load burn-in test

◆ 2 years Warranty

Specifications

Dimensions LxWxH (in): 3.740 x 1.772 x 1.259
Dimensions LxWxH (mm): 95 x 45 x 32
Color: Black/ White
Input: 100-240V AC±10% 50/60Hz
Output: Constant voltage and current mode
Working Environment: -10℃-40℃ 5%-90%RH
Storage Environment: -20℃-85%℃ 5%-95%RH
No load power consumption: below 1.0W
Cooling method: Natural Cooling down
RoHS compliant: Yes
Ripple/Noise: <150mV
Accuracy: ±2%
Safety Standards: UL1310, UL62368, CSA22.2, TUV-GS CE IEC/EN62368, AS/NZS 62368, GB4943, J62368, K60950
Safety Approvals: UL CUL CE KC GS SAA RCM CB FCC RoHS
Green adaptor with charging function
For high surge current equipment
