Basic Info

Place of Origin:	China
Productivity:	300000 pcs/month
Supply Ability:	300000 pcs/month
Payment Type:	T/T,Paypal,Others
Incoterm:	FOB,EXW,Express Delivery,DDP,DDU
Certificate:	ISO9001:2015, UL cUL CE GS FCC RoHS
HS Code:	850440
Transportation:	Ocean,Air,Express,Land,Others
Port:	Shenzhen

Product Description

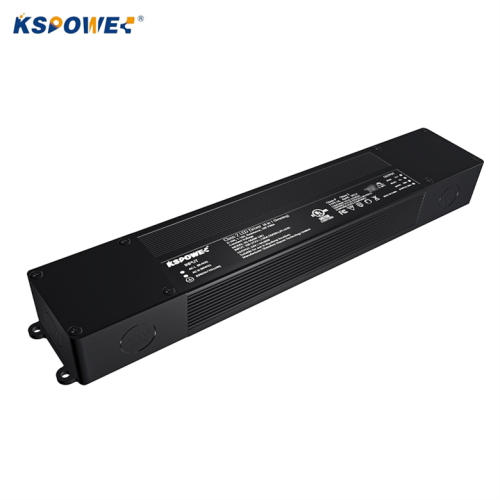

The KSPOWER - H series 0-10V/1-10V, 10V PWM signal, resistance dimming LED driver 320 Watt 36 Volt is one black color, universal AC input voltage range from 100V-277VAC constant voltage led driver certified to meet UL cUL and CE GS FCC RoHS safety approvals. The led dimmable power supplies 36V use low profile aluminum case with junction box makes led dimmable driver the power solutions for LED strips, LED sign, billboard and landscape lighting. Featuring built-in PFC function and NEMA 3R / IP65 environment Protection Rating for indoor or outdoor use, the H series LED 4 in 1 dimmable drivers provide 5 years warranty and outstanding led dimming peformance.

Features:

． Dimmable functions: 0-10v, 1-10v, 10v PWM signal, resistance

． Super compact Aluminum case

． UL/cUL CE GS FCC RoHS LPS Class P ENEC SELV

． IP65 - Outdoor Use

． Work in the temperature range of-40℃~+50℃ under natural air cooling and heat dissipation

． Auto-Reset Protection for input/output overvoltage protection, input/output overcurrent protection, over temperature

protection, over power protection and short circuit protection

Specification:

Input Voltage	100~277V AC 47~63Hz
Power Factor	PF≧0 98/115VAC, PF≧0 95/230VAC, PF≧0.9/277VAC, full load
Output Voltage	24V	36V	48V
Rated Current	13.3A	8.88A	6.67A
Rated Power	320W
Ripple & Noise (max.)	250mVp-p	250mVp-p	250mVp-p
Dimenion	3676841mm(LWH)
