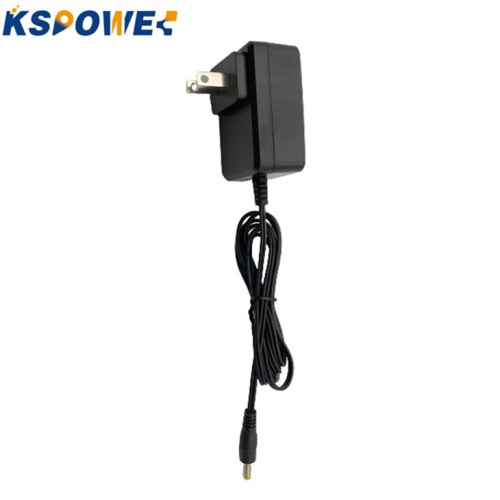

15V1A Wall Plug Class 2 Transformer Power Supplies
  • 15V1A Wall Plug Class 2 Transformer Power Supplies
  • 15V1A Wall Plug Class 2 Transformer Power Supplies
  • 15V1A Wall Plug Class 2 Transformer Power Supplies
  • 15V1A Wall Plug Class 2 Transformer Power Supplies
15V1A Wall Plug Class 2 Transformer Power Supplies
15V1A Wall Plug Class 2 Transformer Power Supplies
15V1A Wall Plug Class 2 Transformer Power Supplies
15V1A Wall Plug Class 2 Transformer Power Supplies

15V1A Wall Plug Class 2 Transformer Power Supplies

Get Latest Price
Min. Order:
500 Piece/Pieces
Min. Order:
500 Piece/Pieces
Transportation:
Ocean, Air, Express, Land, Others
Port:
Shenzhen
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 200000
Supply Ability: 500000
Payment Type: T/T,Paypal,Others
Incoterm: FOB,EXW,Express Delivery
Certificate: ISO9001:2015,UL cUL Class 2 CE FCC RoHS...
HS Code: 850440
Transportation: Ocean,Air,Express,Land,Others
Port: Shenzhen
Product Description
Product Description
The class 2 wall mounted power supply is a high quality, output 15V DC 1A 15W constant voltage mode universal input voltage ac to dc power supply to export for America, Canada. The ul class 2 power transformer has the complete UL/cUL Class 2 and FCC RoHS safety certifications to provides customers with this advantage to save large amounts of money on certification charge and reduce the complicated certificate programs for the end system. High efficiency level VI and low no-load power consumption allows the power supplies to operate at low temperatures.


5v1a Usa

Features


◆ US blade wall-mount style, up to 15W continuous power

◆ Universal AC input/ Full range

◆ Level VI energy efficiency

◆ Protections: Short circuit / Over voltage / Over current

◆ Class II power (without earth pin)

◆ Class 2 power units

◆ Pass LPS (Limited power source)

◆ Compact Size, fully enclosed plastic case

◆ 100% full load burn-in test

◆ 3 years Warranty


Specifications


Dimensions LxWxH (in): 2.953 x 1.575 x 1.181
Dimensions LxWxH (mm): 75 x 40 x 30
Color: Black/ White
Input: 100-240V AC±10% 50/60Hz
Output: Constant voltage mode and Single output
Working Environment: -10℃-40℃ 5%-90%RH
Storage Environment:-20℃-85%℃ 5%-95%RH
No load power consumption: below 0.15W
Overshoot: 15% Max. When power supply at turn on or turn off
Cooling method: Natural Cooling down
RoHS compliant: Yes
Ripple/Noise:<150mV
Accuracy:±1%

Safety Standards: UL1310, Class 2, Level VI, UL62368, TUV-GS CE IEC/EN62368,  J62368, K60950
Safety Approvals: UL CUL CE KC GS SAA RCM CB FCC RoHS

Applications: 3D Printer, Ultrasonic Humidifier, LCD Monitor, LED Lights, HDD Enclosure, CCTV, Car DVR, Digital Photo Frame, Mobile Phone, Laptop, Tablet PC, Refrigerators, Portable DVD, Set Top Box, Radio, Security System Products, Massage Products, Electronics Products etc


Mechanical Specification

12w Us


Package



Package
 Piece/Carton(pcs)
 Dimension/Carton(mm)
 Dimension/Brown Box(mm)
 Piece Weight(KG)
 Gross Weight/Carton(KG)
OEM package 60 360 x 352 x 250 68 x 55 x 115 0.15 10
