45W 12Volt Wall Mount Class 2 Power Supplies

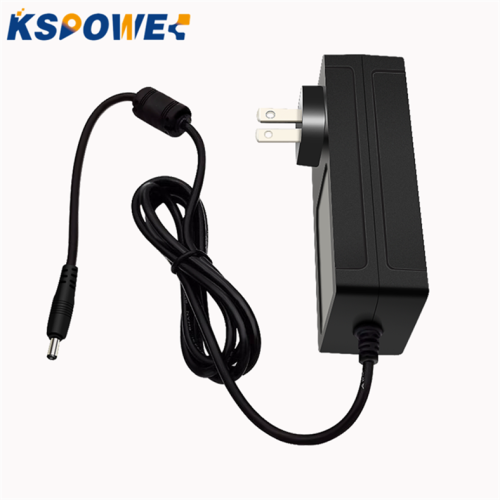

The power supplies is a highly reliable, 12V DC 3.75A 45W constant voltage mode wall-mounted style single-output AC DC power adaptor series. This class 2 power supply is equipped with an AC plug USA type and Class 2 rated without earth pin, accepting the universal AC input voltage range from 100-240V. Featuring the working efficiency of level V, low no-load power consumption below 0.3W, wall plug in power supply 12V 24V is compliant with the latest USA energy regulation. Universal ac dc adapter provides safety protections for over current, over voltage and short circuit.

Features

◆ US blade wall-mount style, up to 45W continuous power

◆ Universal AC input/ Full range

◆ Protections: Short circuit / Over voltage / Over current

◆ Class II power (without earth pin)

◆ Class 2 power units

◆ Pass LPS (Limited power source)

◆ Compact Size, fully enclosed plastic case

◆ 100% full load burn-in test

◆ 3 years Warranty

Specifications

Dimensions LxWxH (in): 3.937 x 2.007 x 1.220
Dimensions LxWxH (mm): 100 x 51 x 31
Color: Black/ White
Input: 100-240V AC±10% 50/60Hz
Output: Constant voltage mode and Single output
Working Environment: -10℃-40℃ 5%-90%RH
Storage Environment:-20℃-85%℃ 5%-95%RH
No load power consumption: below 0.15W
Overshoot: 15% Max. When power supply at turn on or turn off
Cooling method: Natural Cooling down
RoHS compliant: Yes
Ripple/Noise:<150mV
Accuracy:±1%

Safety Standards: UL1310, Class 2, Level VI, UL62368, TUV-GS IEC/EN62368,  J62368(H22), K60950
Safety Approvals: UL CUL CE KC GS SAA RCM CB FCC RoHS

Applications: 3D Printer, Ultrasonic Humidifier, LCD Monitor, LED Lights, HDD Enclosure, CCTV, Car DVR, Digital Photo Frame, Mobile Phone, Laptop, Tablet PC, Refrigerators, Portable DVD, Set Top Box, Radio, Security System Products, Massage Products, Electronics Products etc
