AC DC 24V/4.5A Power Supply for Fax Machines
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Air, Express, Others
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 200000 pcs/month |
| Supply Ability: | 500000 |
| Payment Type: | T/T,Paypal,Others |
| Incoterm: | FOB,EXW,Express Delivery,DDP,DDU |
| Certificate: | ISO9001:2015,UL CE FCC RCM KC GS RoHS... |
| HS Code: | 850440 |
| Transportation: | Ocean,Air,Express,Others |
| Port: | Shenzhen |

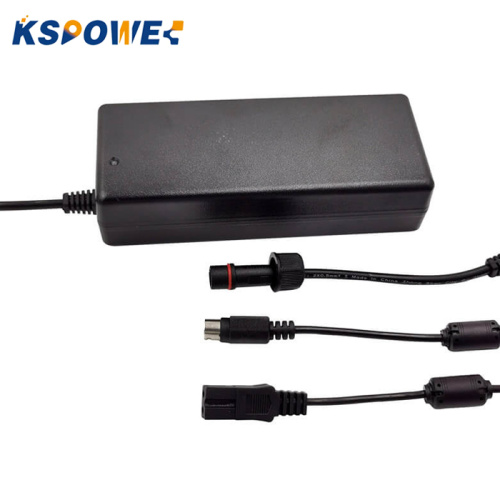

AC DC 24V/4.5A Power Supply for Fax Machines
The external dc power supply is a high quality and high PFC, black or white 24Volt 4.5Amp dc output 108w desktop style constant voltage adapter series with green LED indication for power on. This ac dc adapter 24v accepts full range from 100V to 240V AC input voltage and lock type DC connector options. The ac to dc power supply provides 3 years warranty and certified for UL/cUL, GS, CE, PSE, KC, CCC, RoHS safety approvals for I.T.E and Video/Audio applications. The safety mark power supply is also a class I or II rated and equipped with three standard AC inlets options for IEC320-C6, IEC320-C8 and IEC320-C14.
Features
◆ Desktop style, up to 108W continuous power
◆ Universal AC input/ Full range
◆ Level VI energy efficiency
◆ Protections: Short circuit / Over voltage / Over current
◆ Class II power (without earth pin): IEC320-C8;
ClassⅠpower(with earth pin): IEC320-C6 or IEC320-C14
◆ Pass LPS (Limited power source)
◆ Compact Size, fully enclosed plastic case
◆ LED indicator for power on
◆ 100% full load burn-in test
◆ 3 years Warranty
Specifications
Dimensions LxWxH (in): 6.732 x 2.795 x 1.653
Dimensions LxWxH (mm): 171 x 71 x 42
Color: Black/ White
Input: 100-240V AC±10% 50/60Hz
Output: Constant voltage mode and Single output
Working Environment: -10℃-40℃ 5%-90%RH
Storage Environment: -20℃-85%℃ 5%-95%RH
No load power consumption: below 0.1W
Overshoot: 15% Max. When power supply at turn on or turn off
Cooling method: Natural Cooling down
RoHS compliant: Yes
Ripple/Noise:<150mV
Accuracy:±1%
Safety Standards: UL1310, UL62368, IEC/EN62368 60950, IEC61558, AS/NZS62368, GB4943, J62368, K60950
Safety Approvals: UL CUL CE KC KCC GS SAA RCM CB FCC PSE CCC RoHS
Applications: 3D Printer, Ultrasonic Humidifier, LCD Monitor, LED Lights, HDD Enclosure, CCTV, Car DVR, Digital Photo Frame, Mobile Phone, Laptop, Tablet PC, Refrigerators, Portable DVD, Set Top Box, Radio, Security System Products, Massage Products, Electronics Products etc
|
Mechanical Specification
|
