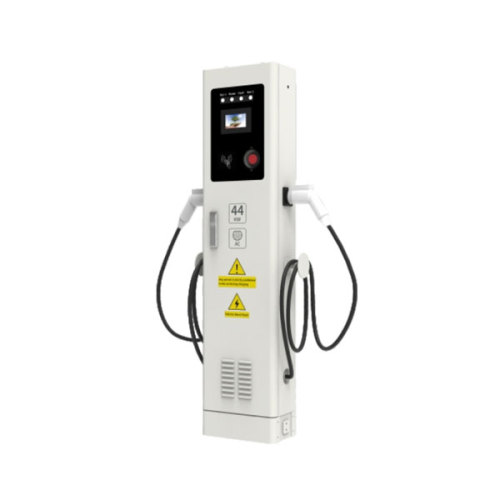

2*22KW ground mounted AC Chargring Pile
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | L/C,T/T,D/P,Paypal |
|---|---|
| Incoterm: | FOB,CFR,CIF,EXW,FCA,CPT,CIP |
2*22KW ground mounted AC Chargring Pile Applicable Scenes:
They are suitable for occasions such as city special chargingstations that provide charging for bus, taxi,public service vehicles, sanitation vehicles, logistics vehicles, etc.; city public charging stations that provide charging for private cars, commuter, bus;intercity highway charging stations and other occasions that need special AC fast charging.
2*22KW ground mounted AC Chargring Pile Technical Data
|
S. NO. |
Parameters |
Requirements |
| General Requirements | ||
| 1 |
EV charger Type |
AC |
| 2 |
Charger Capacity |
22KW*2 |
| 3 |
Model No. |
ENC-ACL044A / SAE- ACL044A |
| 4 |
Mounting |
Column type/Wall-mounted |
|
Input Requirements |
||
| 5 |
AC Supply System |
Three-Phase, 5 Wire AC system |
| 6 |
Nominal Input voltage |
380~400V ± 15% |
| 7 |
Input frequency |
50Hz, ±1.5Hz / 60Hz, ±1.5Hz |
|
Environmental Requirements |
||
| 8 |
Ambient Temperature
Range
|
-25 to 55°C |
| 9 |
Ambient Humidity |
5 to 95% |
| 10 |
Storage temperature |
-40 to 70°C |
|
Mechanical Requirements |
||
| 11 |
IP Ratings |
IP 54 |
| 12 |
Cooling |
Air cooled |
|
Output Requirements
|
||
| 13 |
Number of outputs |
2 |
| 14 |
Type of each output |
380~400V ± 15% three phase, 32Amp |
| 15 |
Output Current |
32 Amp |
| 16 |
Output Connector
Compatibility
|
SAE J1772 Type-1, IEC621196-2,Mode3,type2 |
|
User Interface & Display Requirements |
||
| 17 |
Display & touch-screen size |
4.3 inches/7inches |
| 18 |
User Authentication |
Mobile application or User interface / QR Code/RFID Card /Password Login |
| 19 |
Metering Information |
Consumption Units |
|
Communication Requirements |
||
| 20 |
Communication between
EVSE and Central Server
|
OCPP 1.6J protocol (optional) |
| 21 |
Interface between charger
and CMS
|
Ethernet and GPRS Modem |
|
Protection & Safety Requirements |
||
| 22 |
Safety Parameters |
Over current, under voltage, Residual current, Surge protection, leakage protection,
Short circuit, Over temperature, etc.
|
| 23 |
Power failure |
If there is a power failure, user is indicated about this. |
2*22KW ground mounted AC Chargring Pile Features:
1、Delicate appearance, simple operation, convenient installation;
2、High efficiency, reliable and stable performance;
3、Friendly interaction interface, 4.3-inch/7 inch color touch screen(optional);
4、Support multiple modes of charging, operation management and payment;
5、Support Ethernet or wireless telecommunication;
6、Support RFID Card/OCPP 1.6J (optional);
7、Support Type-2/type-1 connector(or Socket)optional;
8、Overload integrated Protection;
9、Support online data upgrade.
