Extruded Black POM Delrin Sheet

Get Latest Price

Min. Order:: 100 Kilogram

Min. Order:: 100 Kilogram

Transportation:: Ocean, Air

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	3000 Ton/month
Supply Ability:	3000 Ton/month
Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	SGS/TUV/ISO:2015
Transportation:	Ocean,Air
Port:	Shenzhen

Product Description

Pom Sheet is a better material having better mechanical values compared with polyamide and cast polyamide. it does not show the same resistance to the chemicals. Because its density is about 1.42 g/cm³, Polyoxymethylene Copolymer Sheet is heavier and more costly than polyethylene and Polyamide. It used for the manufacturing of gears, the parts that require very often removed and installed(like the fuel filler caps of cars) and the skids with bearings.

Main Properties:

Strong mechanical strength
High rigidity and hardness
Excellent elasticity
Good sliding performance
Abrasion resistance and creep resistance
High impact strength
Good dimensional stability,
Excellent mechanical performance
Physiological inertia and suitable to contact with food

Application:

Polyformaldehyde Board is widely used for sliding and rotating machinery, precision components, gears and bearings in automotive, electronics, garment, medical care, machinery, ans sports apparatus

Rom1

Pom Material Sheet Specification:

Item name	POM-C Rod
Type:	extruded
Diameter:	Ø15---200mm
Length:	1000mm
Density:	1.41 g/cm³
Color:	White, black
Brand name:	AHD
Material:	100% virgin material
Sample:	FREE
Acid resistance:	YES
Food Contact	YES

Physical Datasheet:

Item	POM (C)
Color:	white
Proportion:	1.41g/cm³
Heat resistance (continuous):	115℃
Heat resistance (short-term):	140℃
Melting point:	165℃
Linear thermal expansion coefficient (average 23~100℃):	110×10^-6 m/(m.k)
Average 23--150℃	125×10^-6 m/(m.k)
Flammability(UI94):	HB
Tensile modulus of elasticity:	3100MPa
Dipping into water at 23℃ for 24h	20%
Dipping into water at 23℃	0.85%
Bending tensile stress/ Tensile stress off shock	68/- Mpa
Breaking tensile strain	˃35%
Compressive stress of normal strain-1%/2%:	19/35 MPa
Pendulum gap impact test	7 KJ/m²
Friction coefficient:	0.32
Rockwell hardness:	M84
Dielectric strength:	20 kv/mm
Volume resistance:	10 ¹⁴Ω×cm
Surface resistance:	10 ¹³Ω
Relative dielectric constant-100HZ/1MHz:	3.8/3.8
Critical tracking index(CTI)	600
Bonding capacity:	+
Food contact:	+
Acid resistance:	+
Alkali resistance	+
Carbonated water resistance:	+
Aromatic compound resistance:	+
Ketone resistance:	+

Size Tolerance:

Extruded pom sheet stock

POM SHEET Goods Photos:

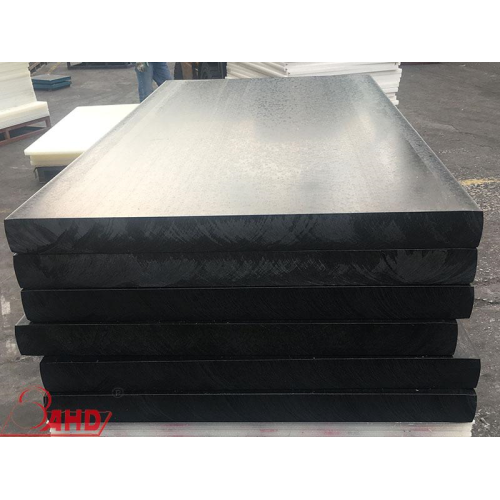

Black acetal delrin sheet

Acetal pom sheet

About us:

Established in Shenzhen in 1994, our company is a comprehensive company that is engaged in the R&D, production and distribution of semi-finished engineering plastic in China, including POM, PC, ABS, PP, PE, PVC, PA6 and PU sheet & rod. Our company has more than 250 plastic production lines of imported manufacturing equipment, and covers an area of 25000 square meters. With over 200 employees (a number of them are senior engineers), together with many years of experience and customers' feedback, we have been a leader in plastic industry field for the constant perfection of our service network, technical level and product scope.

We've obtained independent import and export rights and established various branches all over the country. Our products sell well in Europe, America and Southeast Asia. The proportion of export has increased over years. Shanghai is a larger city in China. Therefore, we moved our international department to Shanghai from Shenzhen for better communication with our customers in 2010.

We can meet customers' requirements, and we can find out the best solution for each application. Besides, we can also help our customers to maintain the competitive position and have every customer obtain benefits from the best products.
