Receiving card of curtain led screen RV902
Product Feature:Receiving card of curtain led screen RV902
1) Single card can output 16 groups serial data;
2) Single card can output 4 groups RGBR' data;
3) Single card can output 5 groups RGB data;
4Single card maximum supports 1024X256 pixel(s Please note that there
are recommended values depending on the design of LED screen);
5) Support pixel-by-pixel brightness calibration; single-card color space
conversion;
6) Support network cable BER test;
7) High refresh rate and high grey level with most of the driver ICs;
8) In line with EU standards RoHS;
9) In line with EU standards CE-EMC class B.
|

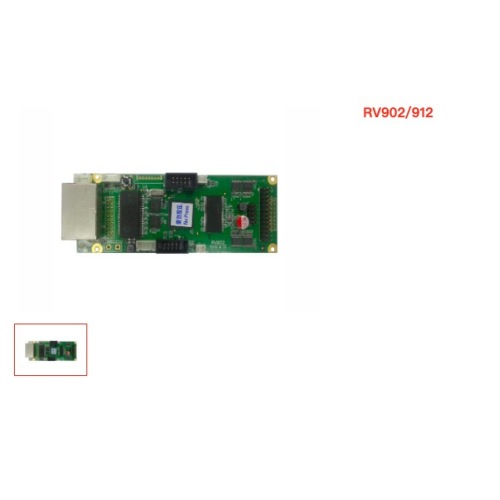

Product Image |
|
Product Parameters |
2.RV902 PINOUT
1)
Normal mode (default mode)
Support full-color screen and double-color display, 26-pin interface has 16
groups of full-color screen serial-data; 16-pin interface has 2 groups of
full-color screen parallel data.
In normal mode, 26pin is defined as follows
|
26PIN PINOUT |
16PIN PINOUT |
|||||||
|
D (CLK2) |
1 |
2 |
C(CLK3) |
D |
1 |
2 |
C |
|
|
B(CLK4) |
3 |
4 |
A |
B |
3 |
4 |
A |
|
|
LAT |
5 |
6 |
CLK(CL K1) |
OE |
5 |
6 |
CLK |
|
|
OE |
7 |
8 |
GND |
LAT |
7 |
8 |
R1 |
|
|
R8 |
9 |
10 |
R7 |
G1 |
9 |
10 |
U1 |
|
|
R6 |
11 |
12 |
R5 |
R2 |
11 |
12 |
G2 |
|
|
R4 |
13 |
14 |
R3 |
U2 |
13 |
14 |
GND |
|
|
R2 |
15 |
16 |
R1 |
GND |
15 |
16 |
GND |
|
|
GND |
17 |
18 |
R16 |
|||||
|
R15 |
19 |
20 |
R14 |
|||||
|
R13 |
21 |
22 |
R12 |
|||||
|
R11 |
23 |
24 |
R10 |
|||||
|
R9 |
25 |
26 |
R8 |
|||||
2)4 groups parallel data mode (4 data for RV902 in
LedSet/LEDStudioV12.60 or earlier)
Support full-color screen, virtual full-color screen and double-color display,
16P interface is invalid, 26P pin is defined as follow:
|
RGBR' PINOUT |
DOUBLE COLOR |
|||||||
|
D |
1 |
2 |
C |
D |
1 |
2 |
C |
|
|
B |
3 |
4 |
A |
B |
3 |
4 |
A |
|
|
LAT |
5 |
6 |
CLK |
LAT |
5 |
6 |
CLK |
|
|
OE |
7 |
8 |
GND |
OE |
7 |
89 |
GND |
|
|
U2 |
9 |
10 |
R2' |
G4 |
9 |
10 |
R4 |
|
|
G2 |
11 |
12 |
R2 |
G3 |
11 |
12 |
R3 |
|
|
U1 |
13 |
14 |
R1' |
G2 |
13 |
14 |
R2 |
|
|
G1 |
15 |
16 |
R1 |
G1 |
15 |
16 |
R1 |
|
|
GND |
17 |
18 |
U4 |
GND |
17 |
18 |
G8 |
|
|
R4' |
19 |
20 |
G4 |
R8 |
19 |
20 |
G7 |
|
|
R4 |
21 |
22 |
U3 |
R7 |
21 |
22 |
G6 |
|
|
R3' |
23 |
24 |
G3 |
R6 |
23 |
24 |
G5 |
|
|
R3 |
25 |
26 |
GND |
R5 |
25 |
26D |
GND |
|
3)5 groups parallel data mode (5 data for RV902 in
LedSet/LEDStudioV12.60 or earlier)
Support full-color screen display only. 16P interface is invalid;
26P pin is defined as follows
|
D |
1 |
2 |
C |
|
B |
3 |
4 |
A |
|
LAT |
5 |
6 |
CLK |
|
OE |
7 |
8 |
GND |
|
G3 |
9 |
10 |
R3 |
|
U2 |
11 |
12 |
G2 |
|
R2 |
13 |
14 |
U1 |
|
G1 |
15 |
16 |
R1 |
|
GND |
17 |
18 |
NC |
|
U5 |
19 |
20 |
G5 |
|
R5 |
21 |
22 |
U4 |
|
G4 |
23 |
24 |
R4 |
|
U3 |
25 |
26 |
GND |
3.Dimensions
4.Model table
RV902 is in stock and RV912 need to make order.
|
Model |
RJ45 or Pin |
output interface |
|
connector |
type |
|
|
RV902 |
RJ45 |
interface in front side |
|
RV912 |
Pin connector |
interface in front side |
5. Working Conditions
|
Rated voltage(V) |
5 |
maximu m value |
5.5 |
Minimu m value |
4.5 |
|
Rated current(A) |
0.80 |
maximu m value |
0.87 |
Minimu m value |
0.73 |
|
Rated power consumption(W) |
4.0 |
maximu m value |
4.8 |
Minimu m value |
3.3 |
|
Working temperature (°C) |
-20°C ~ 70°C |
||||
|
Working humidity(%) |
0% ~ 95% |
||||
|
Package case |
|
