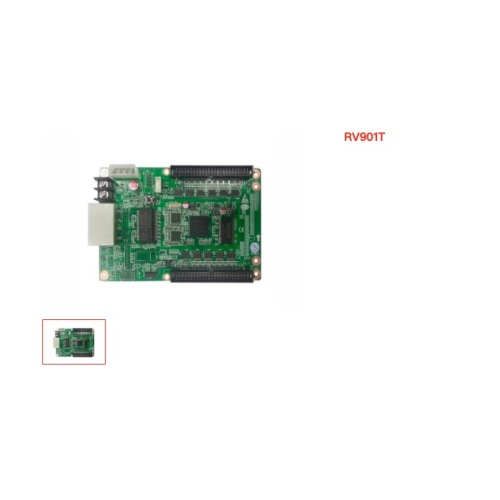

Upgraded receiving card of led display RV901T
Product Feature:Upgraded receiving card of led display RV901T
1)Single
card can output 16 groups RGBR' data;
2)Single card can output 20 groups RGB data;
3)Single card can output 32 groups serial data;
4)Single card maximum supports 1024X256 pixel(s
Please note
that there are recommended values depending on the design
of LED screen);
5) Support pixel-by-pixel brightness calibration; single-card
color
space conversion;
6) Support network cable BER test;
7) High refresh rate and high grey level with most of the driver
ICs;
8) In line with EU standards RoHS.
|
Product Image |
|
Product Parameters |
2. RV901T PINOUT
1)
Normal mode (default mode)
Support full-color screen, virtual full-color screen and double-color screen,
each 50-pin interface has 8 groups of full-color / virtual screen data or 16
groups of two-color screen data.
In normal mode, 50pin is defined as follows.
2)
20 groups parallel data mode (Select 20 data for RV905 in Card Mode option in
new version of LedSet/LEDStudioV12.60 or earlier)
Only for full-color screen
In this mode, 50pin is defined as follows.
|
GND |
1 |
2 |
VCC |
|
GND |
3 |
4 |
VCC |
|
GND |
5 |
6 |
SR |
|
NC |
7 |
8 |
NC |
|
U10 |
9 |
10 |
G10 |
|
R10 |
11 |
12 |
U9 |
|
G9 |
13 |
14 |
R9 |
|
U8 |
15 |
16 |
G8 |
|
R8 |
17 |
18 |
U7 |
|
G7 |
19 |
20 |
R7 |
|
U6 |
21 |
22 |
G6 |
|
R6 |
23 |
24 |
U5 |
|
G5 |
25 |
26 |
R5 |
|
U4 |
27 |
28 |
G4 |
|
R4 |
29 |
30 |
U3 |
|
G3 |
31 |
32 |
R3 |
|
U2 |
33 |
34 |
G2 |
|
R2 |
35 |
36 |
U1 |
|
G1 |
37 |
38 |
R1 |
|
D |
39 |
40 |
C |
|
B |
41 |
42 |
A |
|
LAT |
43 |
44 |
CLK |
|
OE |
45 |
46 |
GND |
|
VCC |
47 |
48 |
GND |
|
VCC |
49 |
50 |
GND |
3.
Model Table
RV901T and
RV921T are in stock. RV911T and RV931T need make to order.
|
Model |
RJ45 Direction |
output interface type |
|
RV901T |
90 Degree |
interface in front |
|
side |
||
|
RV911T |
180 Degree |
interface in front side |
|
RV921T |
90 Degree |
interface at the back side |
|
RV931T |
180 Degree |
interface at the back side |
4. Working Conditions
|
Rated voltage(V) |
5 |
maximu m value |
5.5 |
Minimu m value |
4.5 |
|
Rated current(A) |
0.80 |
maximu m value |
0.87 |
Minimu m value |
0.73 |
|
Rated power consumption(W) |
4.0 |
maximu m value |
4.8 |
Minimu m value |
3.3 |
|
Working temperature (°C) |
-20°C ~ 70°C |
||||
|
Working humidity(%) |
0% ~ 95% |
||||
|
Package case |
|
