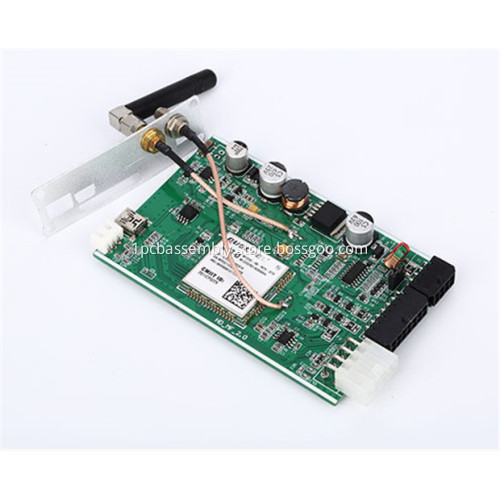

chinese xvideo audio pcba mobile phone pcb board
- Payment Type:
- T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 5-30 Days
- Transportation:
- Ocean, Land, Air, UPS
- Port:
- Shenzhen, HongKong
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen China |
|---|---|
| Productivity: | 500,000pcs per Month |
| Supply Ability: | 500,000pcs per Month |
| Payment Type: | T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | ISO9001, IATF16949, IPC-A-610F |
| HS Code: | 8517709000 |
| Transportation: | Ocean,Land,Air,UPS |
| Port: | Shenzhen,HongKong |
welding machine circuit board led pcb board
Before the development of printed circuit boards electrical and electronic circuits were wired point-to-point on a chassis. Typically, the chassis was a sheet metal frame or pan, sometimes with a wooden bottom. Components were attached to the chassis, usually by insulators when the connecting point on the chassis was metal.
It is important to use solder compatible with both the PCB and the parts used. An example is ball grid array (BGA) using tin-lead solder balls for connections losing their balls on bare copper traces or using lead-free solder paste.
Other platings used are OSP (organic surface protectant), immersion silver (IAg), immersion tin, electroless nickel with immersion gold coating (ENIG), electroless nickel electroless palladium immersion gold (ENEPIG) and direct gold plating (over nickel). Edge connectors, placed along one edge of some boards, are often nickel-plated then gold-plated. Another coating consideration is rapid diffusion of coating metal into tin solder. Tin forms intermetallics such as Cu6Sn5 and Ag3Cu that dissolve into the Tin liquidus or solidus(@50C), stripping surface coating or leaving voids
Our Services:
1. PCB Design: One-stop EMS manufacturer, speciallized in designing wireless charging PCBA, bluetooth earphone & Voice box PCBA and other consumer electronics products.
2. PCB Manufacture: Standard FR4 1-36layer PCB, Flex PCB, Rigid-Flex PCB, HDI PCB, Rogers PCB, Metal Core PCB, etc.
3. PCB Assembly: SMT and THT assembly, available for 01005, fine pitch and BGA assembly.
4. Components Sourcing: Available to source all components shown in BOM file (BOM Kitting), hard to find components and long lead time components, etc.
5. One-Stop Turnkey PCBA Manufacture: PCB design+PCB Manufacture+Components Sourcing+PCB Assembly+Electronic Assembly, or PCB Manufacture+Components sourcing+PCB Assembly, etc.
Technical Capabilities:
|
PCB Manufacture Capabilities |
|
|
Layers |
1-36 layers |
|
Material |
FR-4 (Standard FR4, Mid-Tg FR4, Hi-Tg FR4, Lead free assembly material) , Polymide, Metal Core, Rogers, etc. |
|
Board Thickness |
0.1mm-6.0mm (.016"-.126") |
|
Copper Thickness |
1/2oz-6oz(18um-210um) |
|
Board size |
600mm*1200mm |
|
Min Tracing/Spacing |
0.075mm/0.075mm (3mil/3mil) |
|
Min drilling Hole diameter |
0.15mm(6mil), 0.1mm(4mil)-laser drill |
|
Solder Mask |
LPI, different colors(Green, Green matt, Black, Black Matt, White, Red, Yellow, Blue) |
|
Silkscreen color |
White, Blue, Black, Red, Yellow |
|
Surface finish |
Lead free HASL, immersion gold, golden finger, immersion tin, immersion silver, OSP, Carbon oil, plated hard gold(up to 100u") |
|
Impedance tolerance |
+/-5%~+/-10% |
|
Chamfer of Gold Fingers |
20, 30, 45, 60 |
|
Test |
Flying probe or Testing fixture |
|
PCB Assembly Capabilities |
|
|
Quantity |
From prototype to big volume, no MOQ |
|
Assembly type |
SMT, THT or Hybrid |
|
Parts procurement |
Full turnkey (we provided all components) |
|
Partial turnkey ( Customer provide the main components and we provide the rest) |
|
|
Kitted (Customer provide all components) |
|
|
Component types |
SMT 01005, BGA 0.3mm pitch, QFP 0.3mm pitch, etc. |
|
Test |
Custom testing, ICT, FCT, AOI, Test jig |
Our Team and Office:
Our PCB Manufacture Factory:
Our PCB Assembly Factory:
FAQ:
Q: What files need for custom PCB manufacture?
A: Gerber or .pcb or .pcbdoc or .brd file is required.
Q: What files need for custom PCB assembly order?
A: Gerber and the BOM files are required, if you have pick&place file, send it to us as well.
Q: What is payment terms acceptable?
A: For new customer and the total amount within 10000usd, 100% payment in advance by PayPal or T/T or WU. For total amount beyond 10000usd, please contact us.
Q: What files need for PCB/PCBA clone services?
A: For PCB/PCBA clone service, send us the pictures for evaluate first, and we will need 1-2 samples of the PCB/PCBA board for copying.
Related Keywords
