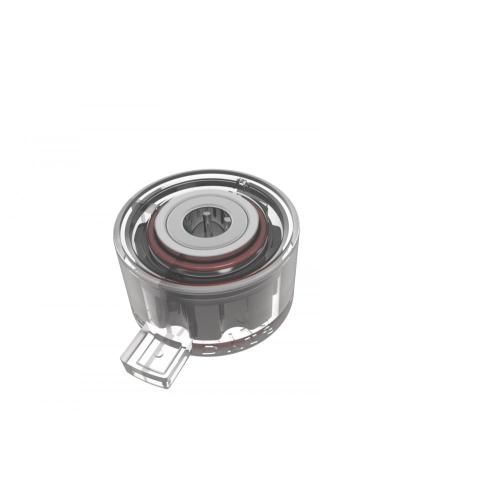

Rotary Damper Barrel Damper For display flip
- Min. Order:
- 1000 Piece/Pieces
- Min. Order:
- 1000 Piece/Pieces
- Transportation:
- Ocean, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000000 |
| Payment Type: | T/T |
| Incoterm: | FOB |
| Certificate: | ISO9001:2015 |
| HS Code: | 3926901000 |
| Transportation: | Ocean,Air |
| Port: | Shenzhen |
Display flip dampers are rotary dampers that mount at the hinge-point and are designed to fit into computer conference table. A typical application is display flip. The design of middle through hole is easy to install. The damping direction of the rotary dampers with continuous rotation can be uni-directional, bi-directional. In rotary dampers with continuous rotation, a fluid damping is produced by the shearing or braking force of silicon fluids resistance between the surfaces of a rotor and a stator. The damping moment is determined by the viscosity of the fluid and the size of the orifice or gap.
Welcome to purchase high quality and display flip barrel dampers from A.B.D. Equipment Co., Ltd. - one of the leading such manufacturers and suppliers. Our products with advantages of excellent quality, competitive price, and best service are your first choice. If you have interest in our display flip barrel dampers or require any further information, please do not hesitate to contact me.
Specifications
|
Applied Torque(T)
(gf.cm ) |
|
| 301 | 300±70gf.cm |
| 701 | 700±100gf.cm |
| 102 | 700±100gf.cm |
NOTE:
1. Please contact the corresponding product engineer for specific torque products.
2. Max. rotation speed: 50r/min
3. Max. circle rate: 6 cycle/min ( Clockwise360 °, 360 ° anti-clockwise for 1 cycle)
4.Operating temperature: -10~50℃
5.Storage temperature: -30~80℃
Drawings
Materials
| 3 | Cover | POM |
| 2 | Shaft | PC |
| 1 | Shell | PC |
| NO. | Description | Material |
Damper Characteristics
Applied torque: (T)
Test Temperature: 23+/-5℃
Rotating speed: 20r/min
Durability test Method:Clockwise 360 °, 360 ° anti-clockwise
Rotating speed:20r/min
Test Frequency: 1cycle/min
Test Temperature: 23±5℃
Durability test cycle: 50000cycle
Test result criteria: Store in the room temperature for 24 hours or more after the test, recording to the torque T=T±30%T.
Applications
Car video screen, computer conference table,keyboard, display flip,vending machine, middle-size and small-size cover plate slow bounce, middle-size and small-size cover plate soft close, etc.
Caution
1. Do not operate without sufficient mounting strength.
2. Do not operate without an external stopper.
3. Using dampers beyond the specified.
4. Please do not use under the oil or vacuum environment.
5. Do not discard abandoned damper.
6. Radial load to the shaft.
7. Over-tightening of mounting screws.
8. Using dampers beyond the durability.
Our Company
ABD Equipment Co., Ltd. focuses on lean manufacturing of precision components in molding, assembly and quality management. The main products we develop and design include precision motion hinges, damping components, motor gearbox drive components, lock bodies and stop mechanisms for motion control related products.
ABD's products are widely used in household appliances, electrical products, industrial manufacturing, furniture decoration, hutch defends equipment, public facilities, etc. Our products is conducive to performing structural movement in soft, silent and safe environment, mitigating impact load, avoiding strike damage, prolonging mechanical life, reducing noise disturbance, improving product quality and improve customer satisfaction.
Our products range from barrel damper, vane damper, stop damper, gear damper, disk damper, shaft damper, shock damper, damping gas spring. Feel free to contact us if you are interested in any of the ABD products and services.
