Solid carbide taps straight flute
- Payment Type:
- L/C, T/T, D/P, Western Union
- Incoterm:
- FOB, CFR, CIF, FCA
- Min. Order:
- 10 Piece/Pieces
- Min. Order:
- 10 Piece/Pieces
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Yantian, Shekou, Chiwan
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000month/pieces |
| Supply Ability: | 10000month / pieces |
| Payment Type: | L/C,T/T,D/P,Western Union |
| Incoterm: | FOB,CFR,CIF,FCA |
| HS Code: | 108040399 |
| Transportation: | Ocean,Land,Air |
| Port: | Yantian,Shekou,Chiwan |

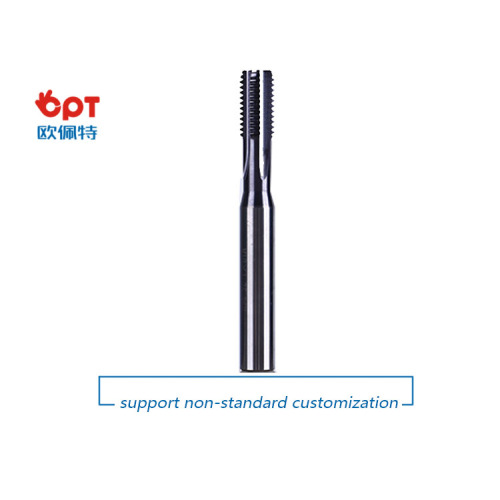

Solid carbide taps straight flute
Type: threaded hole machining, tungsten steel wire tapping, tungsten steel wire cone, carbide tap, chipless wire tapping, chipless tap,
Applicable machine tools: horizontal milling machine, additive center, turning and milling compound center, lathe
For carbide taps, we provied regular stock, and we also provide customization for your designs and logo. It is important to choose a professinonal manufacture to work with you, in order to communicate every details in the design. Our reputation has been built on quality, design and service – all at a competitive price. No matter you are a agent buyer or a factory source for self-use, we will be your most trusted partner.
Cutter Taps is a tool for processing internal thread. According to the shape, it can be divided into a spiral tap and a straight blade tap. According to the use environment, it can be divided into a hand tap and a machine tap. According to the specifications, it can be divided into metric, American and British taps. Taps are the primary tool for manufacturing operators to machine threads.
| Size | Pitch | Flute | O.A.L | Effective Dia | Shank Dia | Model No. | |
| M | P | Z | L1 | L2 | D2 | Uncoated | Coated |
| M3 | 0.5 | 3 | 48 | 11 | 2.24 | 4135-030A | ■ 4135T-030A |
| M3.5 | 0.6 | 3 | 50 | 13 | 2.5 | 4135-035B | ■ 4135T-035B |
| M4 | 0.7 | 3 | 53 | 13 | 3.15 | 4135-040C | ■ 4135T-040C |
| M4X0.5 | 0.5 | 3 | 53 | 13 | 3.15 | 4135-040A | ■ 4135T-040A |
| M4.5 | 0.75 | 3 | 53 | 13 | 3.55 | 4135-045D | ■ 4135T-045D |
| M4.5X0.5 | 0.5 | 3 | 53 | 13 | 3.55 | 4135-045A | ■ 4135T-045A |
| M5 | 0.8 | 3 | 58 | 16 | 4 | 4135-050E | ■ 4135T-050E |
| M5X0.5 | 0.5 | 3 | 58 | 16 | 4 | 4135-050A | ■ 4135T-050A |
| M5.5X0.5 | 0.5 | 3 | 62 | 17 | 4 | 4135-055A | ■ 4135T-055A |
| M6 | 1 | 3 | 66 | 19 | 4.5 | 4135-060F | ■ 4135T-060F |
| M6X0.75 | 0.75 | 3 | 66 | 19 | 4.5 | 4135-060D | ■ 4135T-060D |
| M7 | 1 | 4 | 66 | 19 | 5.6 | 4135-070F | ■ 4135T-070F |
| M7X0.75 | 0.75 | 4 | 66 | 19 | 5.6 | 4135-070D | ■ 4135T-070D |
| M8 | 1.25 | 4 | 72 | 22 | 6.3 | 4135-080G | ■ 4135T-080G |
| M8X0.75 | 0.75 | 4 | 66 | 19 | 6.3 | 4135-080D | ■ 4135T-080D |
| M8X1 | 1 | 4 | 72 | 22 | 6.3 | 4135-080F | ■ 4135T-080F |
| M9 | 1.25 | 4 | 72 | 22 | 7.1 | 4135-090G | ■ 4135T-090G |
| M9X0.75 | 0.75 | 4 | 66 | 19 | 7.1 | 4135-090D | ■ 4135T-090D |
| M9X1 | 1 | 4 | 72 | 22 | 7.1 | 4135-090F | ■ 4135T-090F |
| M10 | 1.5 | 4 | 80 | 24 | 8 | 4135-100H | ■ 4135T-100H |
| M10X0.75 | 0.75 | 4 | 73 | 20 | 8 | 4135-100D | ■ 4135T-100D |
| M10X1 | 1 | 4 | 80 | 24 | 8 | 4135-100F | ■ 4135T-100F |
| M10X1.25 | 1.25 | 4 | 80 | 24 | 8 | 4135-100G | ■ 4135T-100G |
| M11 | 1.5 | 4 | 85 | 25 | 8 | 4135-110H | ■ 4135T-110H |
| M11X0.75 | 0.75 | 4 | 80 | 22 | 8 | 4135-110D | ■ 4135T-110D |
| M11X1 | 1 | 4 | 80 | 22 | 8 | 4135-110F | ■ 4135T-110F |
| M12 | 1.75 | 4 | 89 | 29 | 9 | 4135-1201 | ■ 4135T-120I |
| M12X1 | 1 | 4 | 80 | 22 | 9 | 4135-120F | ■ 4135T-120F |
| M12X1.25 | 1.25 | 4 | 89 | 29 | 9 | 4135-120G | ■ 4135T-120G |
| M12X1.5 | 1.6 | 4 | 89 | 29 | 9 | 4135-120H | ■ 4135T-120H |
| M14 | 2 | 4 | 95 | 30 | 11.2 | 4135-1401 | ■ 4135T-140I |
| M14X1 | 1 | 4 | 87 | 22 | 11.2 | 4136-140F | ■ 4135T-140F |
| M14X1.25 | 1.25 | 4 | 95 | 30 | 11.2 | 4135-140G | ■ 4135T-140G |
| M14X1.5 | 1.6 | 4 | 95 | 30 | 11.2 | 4135-140H | ■ 4135T-140H |
| M15X1.5 | 1.5 | 4 | 95 | 30 | 11.5 | 4136-150H | ■ 4135T-150H |
| M16 | 2 | 4 | 102 | 32 | 12.5 | 4135-160J | ■ 4135T-160J |
| M16X1 | 1 | 4 | 92 | 22 | 12.5 | 4135-160F | ■ 4136T-160F |
| M16X1.5 | 1.6 | 4 | 102 | 32 | 12.5 | 4136-160H | ■ 4136T-160H |
| M17X1.5 | 1.5 | 4 | 102 | 32 | 12.5 | 4136-170H | ■ 4135T-170H |
| M18 | 2.6 | 4 | 112 | 37 | 14 | 4136-180K | ■ 4135-180K |
| M18X1 | 1 | 4 | 97 | 22 | 14 | 4135-180F | ■ 4136-180F |
| M18X1.5 | 2 | 4 | 112 | 37 | 14 | 4135-180H | ■ 4136-180H |
| M18X2 | 2 | 4 | 112 | 37 | 14 | 4136-180J | ■ 4136-180J |
| M20 | 2.5 | 4 | 112 | 37 | 14 | 4136-200K | ■ 4136-200K |
| M20X1 | 1 | 4 | 102 | 22 | 14 | 4136-200F | ■ 4136-200F |
| M20X1.5 | 1.5 | 4 | 104 | 37 | 14 | 4135-200H | ■ 4135-200H |
| M20X2 | 2 | 4 | 112 | 37 | 14 | 4136-200J | ■ 4135-200J |
ABOUT US :
We are specialize in manufacturing PCD diamond tools and Carbide tools. Our major product inclulde PCD inserts, PCD Reamers, PCD End Mills, PCD Taps, Cabide Inserts,Carbide Drills, Carbide Reams, Taps etc.,
We also offered customized cutting tools per drawings, and provide package according to customer requirements. We manufacture a series range of cutting tools for machining of Cast iron, Aluminium alloy and Non-Ferros metal, it is widely used in all major sectors like Automobiles, Engineering, Aerospace, Aviation and 3C industry. Premium quality of raw material is used in the production and strict examination during processing with advanced equipment, so our client are satisfied with our reliable quality and on-time delivery.
Our best selling of cutting tools include PCD Inserts, PCD End Mill, PCD Ball Nose Mill, PCD Reamer, Carbide Taps, Carbide End Mill, Special Form Cutter and many more. For these years we have been made a large forward in the technologies of manufacturing cutting tools. With high quality on performance and price, our product sells well both on domestic and overseas market. And we will always focus on the quality and best service, to make long business relationship.
