Customizing cutter taps
- Payment Type:
- L/C, T/T, D/P, Western Union
- Incoterm:
- FOB, CFR, CIF, FCA
- Min. Order:
- 10 Piece/Pieces
- Min. Order:
- 10 Piece/Pieces
- Delivery Time:
- 30 Days
- Port:
- Yantian, Shekou, Chiwan
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000month/pieces |
| Supply Ability: | 10000month / pieces |
| Payment Type: | L/C,T/T,D/P,Western Union |
| Incoterm: | FOB,CFR,CIF,FCA |
| HS Code: | 108040399 |
| Port: | Yantian,Shekou,Chiwan |

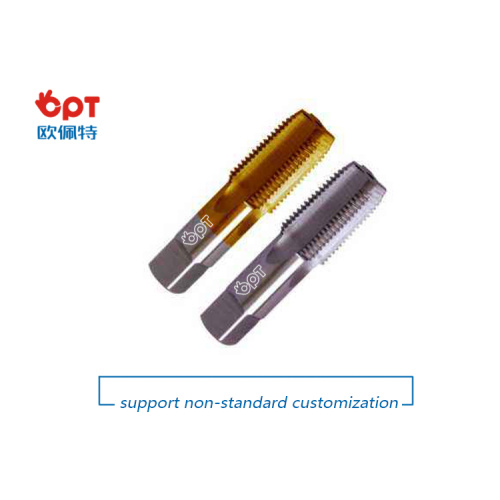

Cutstomized thread taps
Cutting taps can provide a wide range of threading in the world, metric teeth M, British teeth BSW/BSF, American teeth UNC/UNF/UNEF/UN/UNS, bicycle thread BC, needle SM thread, tire valve CTV thread, etc. .
Fold edit this paragraph features
Taps are usually divided into single or groups. The through-hole thread of the small and medium size can be tapped once with a single tap. When processing a blind hole or a large-sized screw hole, a group of taps is commonly used, that is, one screw hole is sequentially processed by using two or more taps. Group taps are available in both equal and unequal diameters. The taps of the equal-diameter design have different lengths of the cutting cones only; the taps of the unequal-diameter design have different thread sizes, and only the last one has a complete tooth shape. The tap cutting load of the unequal diameter design is reasonable, the processing quality is high, but the manufacturing cost is also high. Trapezoidal thread taps are often designed with unequal diameters.
| Code | Effective Dia | pitch | size | ModelNo. | ||||||
| D | 25.4mm | P | D1 | L1 | L2 | Uncoated | Coated | |||
| G1/16 | Q1/16D | p1/16 | 7.723 | 28 | 0.97 | 5.6 | 55 | 14 | 4G35-077F | ■ 4G35T-077F |
| G1/8 | G1/8D | Rp1/8 | 9.728 | 28 | 0.97 | 8 | 59 | 15 | 4G35-097F | ■ 4G35T-097F |
| G1/4 | G1/4D | Rp1/4 | 13.157 | 19 | 1.337 | 10 | 67 | 19 | 4G35-131G | ■ 4G35T-131G |
| G3/8 | G3/8D | Rp3/8 | 16.662 | 19 | 1.337 | 12.5 | 75 | 21 | 4G45-166G | ■ 4G45T-166G |
| G1/2 | G1/2D | Rp1/2 | 20.955 | 14 | 1.814 | 16 | 87 | 26 | 4G45-209J | ■ 4G45T-209J |
| QS/4 | G3/4D | Rp3/4 | 26.441 | 14 | 1.814 | 20 | 96 | 28 | 4G45-264J | ■ 4G45T-264J |
| G1 | G1D | Rp1 | 33.249 | 11 | 2.309 | 25 | 109 | 33 | 4G46-264K | ■ 4G45T-264K |
ABOUT US :
We are specialize in manufacturing PCD diamond tools and Carbide tools. Our major product inclulde PCD inserts, PCD Reamers, PCD End Mills, PCD Taps, Cabide Inserts,Carbide Drills, Carbide Reams, Taps etc.,
We also offered customized cutting tools per drawings, and provide package according to customer requirements. We manufacture a series range of cutting tools for machining of Cast iron, Aluminium alloy and Non-Ferros metal, it is widely used in all major sectors like Automobiles, Engineering, Aerospace, Aviation and 3C industry. Premium quality of raw material is used in the production and strict examination during processing with advanced equipment, so our client are satisfied with our reliable quality and on-time delivery.
Our best selling of cutting tools include PCD Inserts, PCD End Mill, PCD Ball Nose Mill, PCD Reamer, Carbide Taps, Carbide End Mill, Special Form Cutter and many more. For these years we have been made a large forward in the technologies of manufacturing cutting tools. With high quality on performance and price, our product sells well both on domestic and overseas market. And we will always focus on the quality and best service, to make long business relationship.
