CALB LiFePO4 Battery CA180 3.2V 180Ah A Grade
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000pcs/day |
| Supply Ability: | 1000pcs/day |
| Certificate: | ISO9001 |
| HS Code: | 8507600090 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |

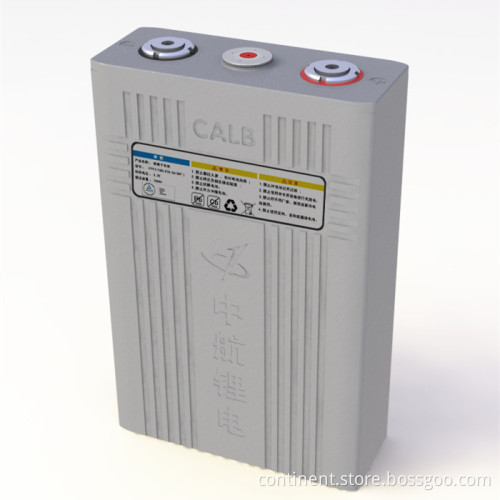

Brand new and original CALB LiFePO4 battery 3.2V 180Ah model number CA180
Technical Parameters
|
NO. |
Items |
Parameter |
Remarks |
|
|
1 |
Nominal Capacity |
180Ah |
Standard Discharge |
|
|
2 |
Minimal Capacity |
180Ah |
Standard Discharge |
|
|
3 |
Work Voltage |
2.5~3.65V |
|
|
|
4 |
Internal Resistance(Ac. 1kHz) |
0.1~0.5mΩ |
Fresh Cell,30%SOC |
|
|
5 |
Charging Time |
Standard Charge |
~4h |
Reference Value |
|
|
|
Fast Charge |
~1h |
|
|
6 |
Recommended SOC Window |
SOC :10%~90% |
|
|
|
7 |
Operating Temperature |
Charging Temperature |
0~45°C |
Refer to section 4.2 |
|
|
|
Discharging Temperature |
-20~55°C |
Refer to section 4.4 |
|
8 |
Weight |
About 5.6kg |
|
|
|
9 |
Shell Material |
Plastic |
||
CA180 Discharging Model
|
NO. |
Parameter |
Specifications |
Remarks |
|
4.4.1 |
Standard Discharging Model |
At room temperature, discharged to 2.5V at a constant current of 54A. |
|
|
4.4.2 |
Maximum Constant Discharging Current |
180A |
|
|
4.4.3 |
Maximum Pulse Discharging Current(Long Pulse) |
360A |
Maximum duration: 3min |
|
4.4.4 |
Maximum Pulse Discharging Current(Short Pulse) |
540A |
When battery temperature is below 50 ℃, the maximum discharge can last 10s |
|
4.4.5 |
Standard Discharging Temperature |
25±2℃ |
Cell Temperature |
|
4.4.6 |
Absolute Discharging Temperature |
-20~55℃ |
No matter what the discharging model is, once the temperature of the cell is above the absolute discharging temperature, discharging should be stopped. |
