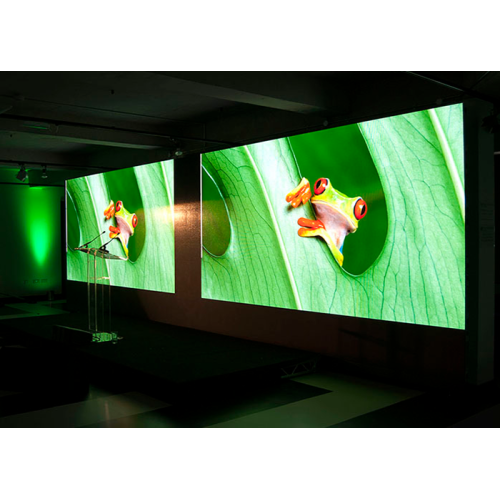

Indoor High Refresh Rate UHD LED Display

Indoor High Refresh Rate UHD LED Display

Get Latest Price

Payment Type:: L/C

Incoterm:: FOB, CFR, CIF, FCA, CPT

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 30 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	6000m²/Month
Supply Ability:	6000m²/Month
Payment Type:	L/C
Incoterm:	FOB,CFR,CIF,FCA,CPT
Certificate:	CCC FCC ETL CE EMC RoHS
HS Code:	8528591090
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Guangzhou

Product Description

Specification
*Optional of Convex Shaped, Concave Shaped and Wave Shaped screens
*Application: Indoor/Fixed
*Ultra high-definition
*Excellent thermal management
*Quick lock system allowing fast rigging
*Extremely close view distances and view angles
*Clear and exquisite
*Good flatness
*Vivid mixed colors
*Convenient use
*High stability
*Lightweight and seamless
*Long life span
*Low consumption
*Easy to assembly, install and transport
*Shorter MTBF
*Lightweight and seamless
*Front service&Rear service

Details

Model	IU-1.5
Pixel Pitch	1.56mm
Pixel Density	409,600px/m²
LED Type	SMD1010
LED Configuration	1R1G1B
Cabinet Dimension	400*300
Cabinet Resolution	192*128
Cabinet Weight	4.6kg/panel
Cabinet Material	die-casting
Ingress Protection(front/rear)	IP30
Brightness	>800nits
Contrast ratio	4000:1
Colours	281 trillion
Viewing Angle(H/V)	140°/140°
Driving Method	1/32 Scan
Power Consumption(avg.)	220w/m²
Power Consumption(max.)	800w/m²
Frame Refresh	≥ 60Hz
Data Refresh Rate	≥ 1500Hz
Gray Scale	16bit
Power Supply	AC 110/220±10% 50~60Hz
Temperature (operating/storage)	-20~50°C -40~60°C
Humidity(operating/storage)	10%~90%RH 10%~85%RH
MTBF	≥1000 Hours
Life Span	≥50000 Hours
Service	Front/Rear
Certification	CCC,TUV-CE,ETL

With a wide viewing angle of 140 degrees(both vertical / horizontal), the audience can get the clearest visual enjoyment from any direction,guarantee the maximize range the viewer.

wide viewing angle .

Package: Wooden package, Flight case.

High brightness led screen

Services
*Warranty
1) We provide warranty of all components for 2 full years. During this time, we will replace or repair our goods for free if there is something wrong with them.
2) We will provide maintenance for a lifetime and charge for the raw materials only.
*Technology Training
1) We provide the technology training for free, which contains the installation of software and hardware, as well as the daily operation and troubleshooting of the LED display.
2) We also provide lifetime consultation by E-mail, Skype, WhatsApp or other ways for free.
*Certification
We provide the operation manual and all kinds of certification such as CE, RoHS EMC UL and so on.

Tips
*Payment: T/T, 30% deposits, 70% balance before delivery
*Shipping port: Shenzhen
*Warranty time: 2years
*Delivery time: 30 working days
