High Gray Scale Transparent LED Video Displays
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CFR, CIF, FCA, CPT
- Min. Order:
- 1 Square Meter
- Min. Order:
- 1 Square Meter
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Guangzhou
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | China |
---|---|
Productivity: | 6000m²/month |
Supply Ability: | 6000m²/month |
Payment Type: | L/C,T/T |
Incoterm: | FOB,CFR,CIF,FCA,CPT |
Certificate: | CCC,FCC,ETL,CE,EMC,RoHS |
HS Code: | 8528591090 |
Transportation: | Ocean,Land,Air |
Port: | Shenzhen,Guangzhou |

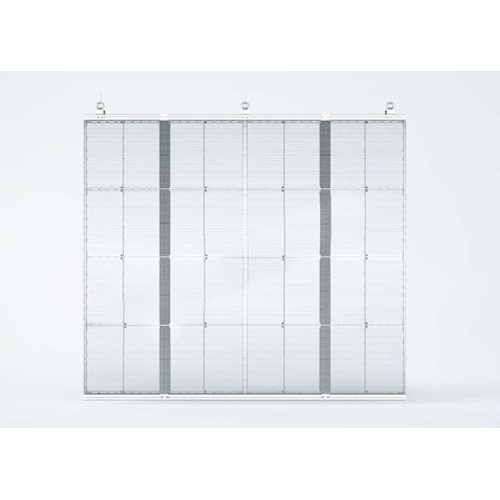

Transparent LED Display offer unparalleled transparency (>70%). Traditional LED window displays act as a dark wall, so shoppers can`t see in, and they block sunlight, so your indoor areas need to rely on unnatural lighting. Transparent LED window displays are virtually unnoticeable, from five meters and more away, and offer your indoor shopping space the best of both worlds: natural sunlight can filter through for a pleasant indoor shopping experience, while outdoors passers-by can see in.
Feel the difference-lightweight and compact
Designed with efficiency and functionality in mind, transparent LED displays are constructed using lightweight engineered aluminum and proprietary LED technology. This means our display modules weigh as little as 10 kg per square meter, making them highly cost efficient to transport and easier and safer to assemble.
Outstanding appearance-simple and sleek
Transparent LED display modules have been designed to take up the minimum of space yet deliver maximum impact. The support frames are simple, lightweight, and elegantly constructed, making your displays clean and unobtrusive-even the noise-free power box is hidden within the display support frames.
Updates made easy-when you want them
Program updates to your transparent LED display screen (static and video) are simple. A control system unit, connected to your computer, allows you to make changes when you want, with an intuitive software interface that makes it easy for you to update sign displays real time, remotely, or program in advance, so your sign is always up-to-date.
Low touch-easy to maintain
Transparent LED displays require minimal maintenance-LED strips have a long life expectancy and can be replaced quickly and easily as required without the need to replace the entire module. With repairs done in minutes and at a very low-cost, your digital LED sign will last for years.
Specifications:
Technical Specifications
P3.75
P5
P7.5
P10
Physical Parameters
Pixel Pitch
3.75mm
5mm
7.5mm
10mm
Pixel Configuration
SMD1921
SMD3528
SMD3528
SMD3528
Pixel Density
40000dots/m²
25000dots/m²
16667dots/m²
10000dots/m²
Cabinet Material
Aluminium
Module Size
480mm*320mm
Cabinet Size
1920mm*640mm/960mm*640mm
Electronic Parameters
Gray Scale
16 Bits
Gray Scale per Color
65536
Data Refresh Rate
>1920Hz
Frame Rate
50/60Hz
Scan Mode
1/8
1/6
1/4
1/3
Optical Parameters
Brightness
5500-6000CD/m²
Module Resolution
128*48
96*48
64*40
48*32
Cabinet Resolution
512*96
384*96
256*80
192*64
Horizontal Viewing Angle
160°
Vertical Viewing Angle
140°
Electrical
Parameters
AC Input Voltage
100-240V
AC Input Frequency
50/60Hz
Maximum Power Consumption
690W/m²
696W/m²
670W/m²
650W/m²
Average Power Consumption
207W/m²
209W/m²
204W/m²
195W/m²
Environmental Parameter
Storage Temperature
-40~60℃
Operating Temperature
-20~50℃
Humidity
10%~90%
IP Rating
IP30
Life Span
100,000 Hours
MTBF
1000Hours
OUR SERVICE:
PRE-PRODUCING:
1. Get complete requirements of clients
1. Producing progress updating for clients
2. To do a thorough analysis
3. Offer a most reasonable and scientific solution
4. Customized design
IN PRODUCING:
2. Particular Installation CAD and Design Diagram for clients
2. 7 days a week, 24 hours a day for 5 years on-line service for any technical support for any customers
3. Free training for customers in factory
4. Local Partner Installation Service
