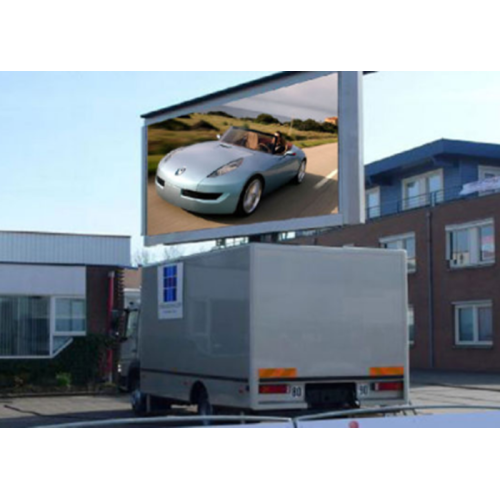

Mobile LED Screen Trailer Advertising Video Wall Screen
  • Mobile LED Screen Trailer Advertising Video Wall Screen
  • Mobile LED Screen Trailer Advertising Video Wall Screen
  • Mobile LED Screen Trailer Advertising Video Wall Screen
Mobile LED Screen Trailer Advertising Video Wall Screen
Mobile LED Screen Trailer Advertising Video Wall Screen
Mobile LED Screen Trailer Advertising Video Wall Screen

Mobile LED Screen Trailer Advertising Video Wall Screen

Payment Type:
L/C, T/T
Incoterm:
FOB, CFR, CIF, FCA, CPT
Min. Order:
1 Piece/Pieces
Min. Order:
1 Piece/Pieces
Delivery Time:
30 Days
Transportation:
Ocean, Air
Port:
Shenzhen, Guangzhou
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 6000m²/Month
Supply Ability: 6000m²/Month
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,FCA,CPT
Certificate: CCC FCC ETL CE EMC RoHS
HS Code: 8528591090
Transportation: Ocean,Air
Port: Shenzhen,Guangzhou
Product Description
Product Description

The products are mobile display device which popularly used for mobile trailer LED display traffic management, public notice of upcoming events like large meetings and sport events, commercial advertising LED display screen, shopping mall LED display, LED screen for mobile media.

Features
1.Convenient: It designed as a fully integrated mobile LED video solution.The unit is engineered for rapid setup and teardown and features an even-ready control room.
2.Adaptability: No matter it is sunny or rainy, it does not affect the movement of the truck and the viewing effect of the audience.
3.High flatness precision: with die-cast aluminum technology, the tolerance of cabinet and module are controlled within 0.1mm, screen flatness and split joint gap are controlled within 0.5mm.
4.Movement: The product has good shockproof due to the mobility of the truck. For mobile trailer led display, Its main feature is high level anti-shake, this is very important for movable led screen.
5.Clear view:High refresh, high gray scale, high color contrast, and high quality picture effect.
6.Ingress protection:The ingress protection of the front is IP65 as well as the IP54 of the rear,which meets the standard of outdoor LED Display.
7.Customized:we can customize the screen size for any trailer model to accommodate the needs of individual customers at any event in as little time as possible.


Details

Pixel Pitch

8mm

10mm

Pixel Density

15625 px/m²

10000 px/m²

LED Type

SMD3535

SMD3535

LED Configuration

1R1G1B

1R1G1B

Module Dimension

256*256mm

320*320mm

Cabinet Dimension

1280*768mm

1280*960mm

Cabinet Resolution

160*96px

128*96px

Cabinet Weight

70kg

80kg

Cabinet Material

steel/aluminum

steel/aluminum

Ingress Protection

(front/rear)

IP65/IP54

IP65/IP54

Brightness

>6500nits

>6500nits

Viewing Angle(H/V)

140°/140°

140°/140°

Driving Method

1/4 Scan

1/4 Scan

Power Consumption(avg.)

360w/m²

360w/m²

Power Consumption(max.)

900w/m²

900w/m²

Frame Refresh

≥ 60Hz

≥ 60Hz

Data Refresh Rate

≥ 1500Hz

≥ 1500Hz

Gray Scale

16bit

16bit

Colours

281 trillion

281 trillion

Contrast Ratio

2000:1

2000:1

Power Supply

AC 110/220±10%
50~60Hz

AC 110/220±10%
50~60Hz

Temperature
(operating/storage)

-20~50°C / -40~60°C

-20~50°C / -40~60°C

Humidity(operating/storage)

10%~90%RH
10%~85%RH

10%~90%RH
10%~85%RH

MTBF

≥1000 Hours

≥1000 Hours

Life Span

≥100,000 Hours

≥100,000 Hours

Pixel Failure

<0.0003

<0.0003



Shows

IP65 LED display

Trailer LED Panel

Front Service Available


Advantages
1. As a special vehicle for advertising, generally used for the product promotion, brand promotion, draft activities , live shows sales, sporting events, vocal concerts, concerts,ect.
2. Anti-corrosion, Antifogging,and excellent waterproof and dustproof
3. Achieve low heat, low noise and low radiation: Through the good structure design, ensure Low decibel value and stable performance when it works in the normal temperature; Passed the EMC test.

About us
1. Bakovision has a complete product line which include indoor and outdoor full color screen, LED background curtain wall, LED curved display, LED strip information screen.
2. Bakovision owns its diversified business philosophy, group management mode protect each display item excellent quality, high-quality service for customers to worry about lifting .
3. We own more than 10000 square meters. Our production capacity reaches 8,000 square meters per month.It ensure that we could to meet customer needs.
4. The indoor full color LED Display mounted adopts aluminum alloy mask, which has excellent thermal management.

    As for Outdoor full color screen, We design and produce it strictly according to the standard of IP65.
5. Reliable quality, advanced technology, stable technology, automated production equipment, and reasonable price.
6. During the installation of the display screen, We will do a simple training about system and the working principle of LED display.

    It including the installation of display system and daily maintenance, as well as simple software and hardware troubleshooting.
