Full color Outdoor Rental LED Display
- Payment Type:
- L/C, T/T, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW
- Min. Order:
- 1 Square Meter
- Min. Order:
- 1 Square Meter
- Delivery Time:
- 20 Days
- Transportation:
- Ocean, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | China |
---|---|
Productivity: | 8,000 m²/month |
Supply Ability: | 10,000m²/month |
Payment Type: | L/C,T/T,Western Union |
Incoterm: | FOB,CFR,CIF,EXW |
Transportation: | Ocean,Air |
Port: | Shenzhen |

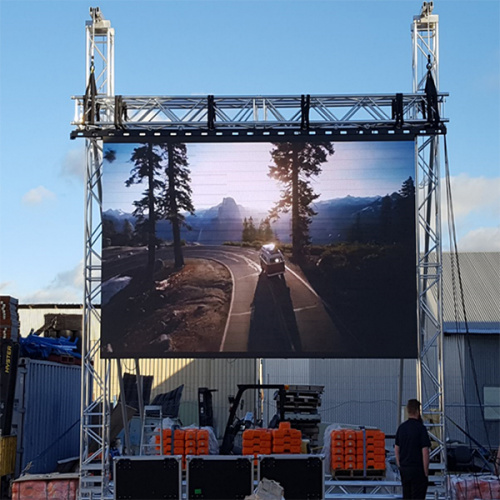

Ultra Lightweight and High definition screen with unique color calibration process. Our LED Display is availble for truss hanging and ground support.
Feature:
1.Light weight: it can be loaded by one person, quick assembling, quick maintain, reduce. carrying, save costs.

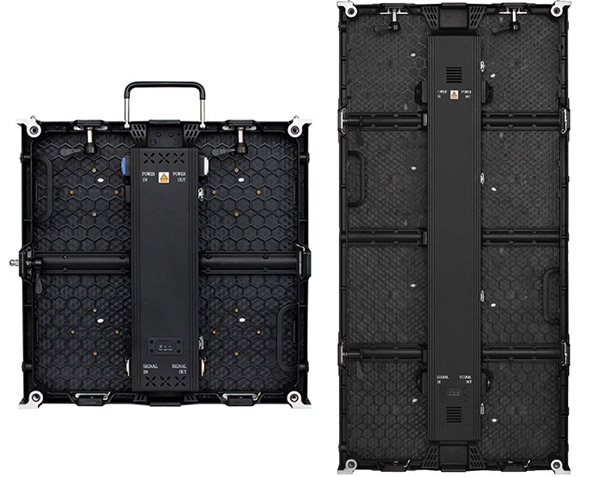

2.Thin cabinet: the thickness is only 80mm, the space of the screen is small , and the entire screen will be more beautiful.

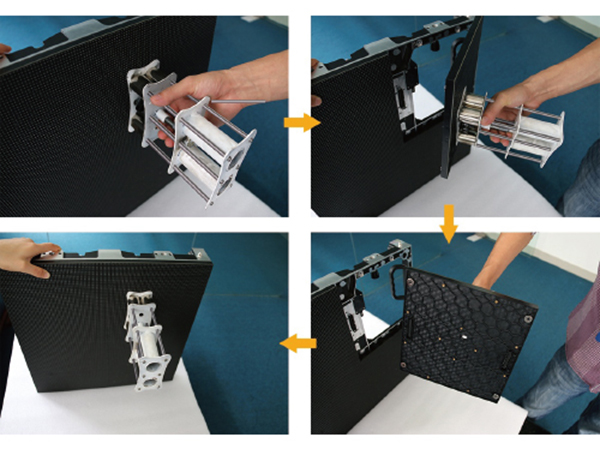

3.Quick dismounting: adopt fast locking structure connected, firm, quick, beautiful. Tools free installation. Cable-less between modules.

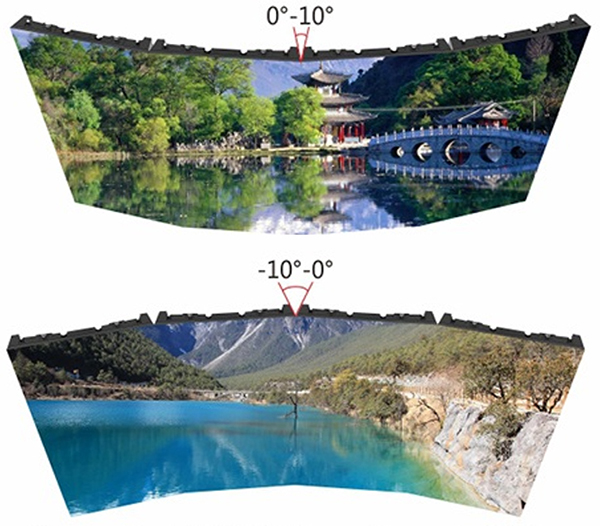

4.Concave and convex setup support: client can asselbly any shape of the led wall display to make different show effect compare with common led display panel.

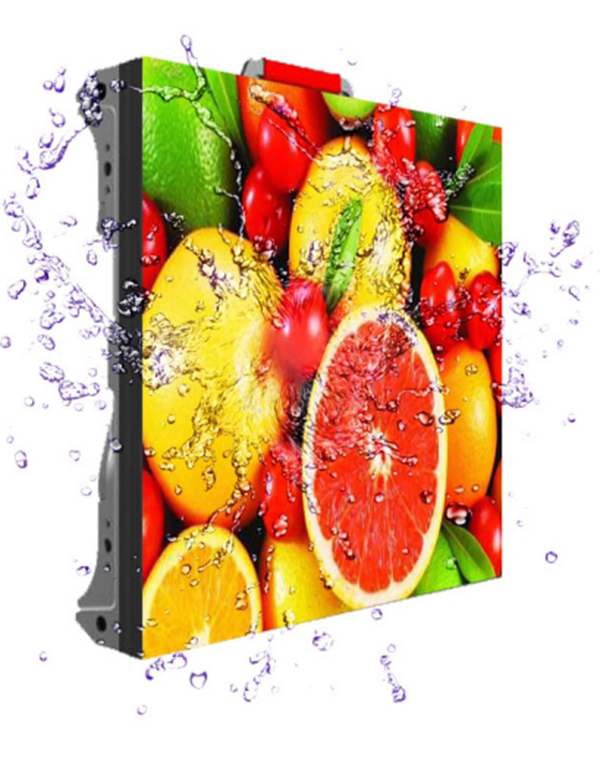

5.Outdoor Rated:out door waterproof with IP65; suitable brightness adjustable for outdoor day and night; deep black levels, contrast ratio 4000:1.
6. High Refresh Rate:
Parameter:
|
BOR-II-3 | BOR-II-4 | BOR-II-5 | BOR-II-6 |
Physical Pitch | 3.91mm | 4.81mm | 5.95mm | 6.25mm |
Pixel Configuration | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
Pixel Density | 65,536 pixels/m² | 43,264 pixels/m² |
28,224 pixels/m² |
25,600 pixels/m² |
Module Dimensions(W*H)(mm) | 250*250 | 250*250 | 250*250 | 250*250 |

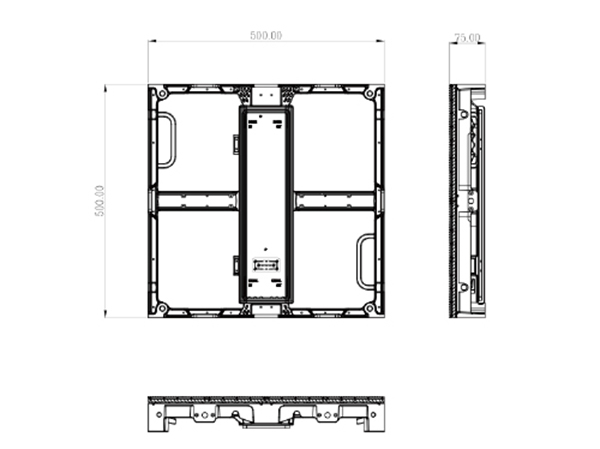

Panel Dimensions(mm) | 500*500*75/500*1000*75 | 500*500*75/500*1000*75 | 500*500*75/500*1000*75 | 500*500*75/500*1000*75 |
NO. of Modules Per Panel (W*H) | 2*2/2*4 | 2*2/2*4 | 2*2/2*4 | 2*2/2*4 |
Physical Resolution of Module(W*H)(mm) | 64*64 | 52*52 | 42*42 | 40*40 |
Physical Resolution of Panel(W*H)(mm) | 128*128/128*256 | 104*104/104*208 | 84*84/84*168 | 80*80/80*160 |
Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
Single Cabinet Weight | 9/15kg/panel | 9/15kg/panel | 9/15kg/panel | 9/15kg/panel |
Processing | 16bit | 16bit | 16bit | 16bit |
Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
Contrast Ratio | 4,000:1 | 4,000:1 | 4,000:1 | 4,000:1 |
Average Power Consumption | 75/150 W/panel | 75/150 W/panel | 75/150 W/panel | 75/150 W/panel |
Max Power Comsunption | 225/550 W/panel | 225/550 W/panel | 225/550 W/panel | 225/550 W/panel |
Operating Temp/Humidity | -20ºC-60ºC/10%-60% | -20ºC-60ºC/10%-60% | -20ºC-60ºC/10%-60% | -20ºC-60ºC/10%-60% |
Storage Temp/Humidity | -30ºC-60ºC/10%-60% | -30ºC-60ºC/10%-60% | -30ºC-60ºC/10%-60% | -30ºC-60ºC/10%-60% |
Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz | >1,920 Hz |
Brightness | >6,000 nits | >6,000 nits | >6,000 nits | >6,000 nits |
Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
Vertical Viewing Angle | 140° | 140° | 140° | 140° |
Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
Max Stacking | 20/10 | 20/10 | 20/10 | 20/10 |
Max Hanging | 20/10 | 20/10 | 20/10 | 20/10 |
Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
IP Rating(Front/Rear) | IP 65/IP54 | IP 65/IP54 | IP 65/IP54 | IP 65/IP54 |
Certification | CCC,CE,ETL,RoHS | CCC,CE,ETL,RoHS | CCC,CE,ETL,RoHS |
CCC,CE,ETL,RoHS |
FAQ:
Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer.
Q2. What is your terms of payment?
A: T/T or Western Union 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. Do you provide samples ? is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q8: How can I get technology support?
A:1,We will train in our factory and send video for showing. The training include system use, system maintenance and equipment protection.
