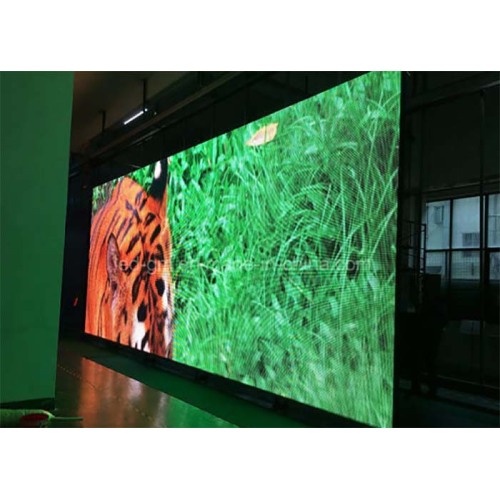

Ultra Clear Outdoor Rental LED Display
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CFR, CIF, FCA, CPT
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Land, Air
- Port:
- ShenZhen, GuangZhou
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | CHINA |
---|---|
Productivity: | 6000m²/Month |
Supply Ability: | 6000m²/Month |
Payment Type: | L/C,T/T |
Incoterm: | FOB,CFR,CIF,FCA,CPT |
Certificate: | CCC,FCC,ETL,CE,EMC,ROHS |
HS Code: | 8528591090 |
Transportation: | Ocean,Land,Air |
Port: | ShenZhen,GuangZhou |
High refresh rate (>1500Hz) , high gray level(256 RGB each) , high resolution and high contrast ratio make the Rental LED Display more delicate , vivid .
Product description
- Ultra slim and lightweight : 13kg per Cabinet Weight(640x640mm), greatly saves transportation costs and labor costs.
- Rental die-casting aluminum structure: rock solid, not easy to deform.
- Seamless splicing : give you a better visual experience.
- Quick lock system, easy installation : quick installation, complete the installation in a few seconds.
- Wide viewing angle: both horizontal and vertical viewing angles are 140°
- Working status indicator available.
- High Ingress protection: IP65/IP54(front/rear).
- High Brightness: >6500nits,brightness automatically adjusted, Clearly visible even in direct sunlight.
- Lower power consumption: Average Power Consumption is 300w/m²,energy saving and environmental protection.
Service
- Our goal is not only to provide high quality steel structure building, but also to maintain a personalized and professional relationship with each customer.
- No matter how big or small your requirement we will do our best to meet your demand.
- One stop service from design, manufacture,deliver to installation and after-service.
- We can manufacture strictly according to your drawings and request.
- We can design product to supply you a most suitable proposal to you.
Model |
ORB-6.67 |
Pixel Pitch |
6.67mm |
Pixel Density |
22478 pixels/m² |
LED Type |
SMD3535 |
LED Configuration |
1R1G1B |
Cabinet Dimension |
640mmx640mm |
Cabinet Resolution |
96*96pixels |
Cabinet Weight |
13kg |
Cabinet Material |
die casting aluminum |
Ingress Protection(front/rear) |
IP65/IP54 |
Brightness |
>6500nits |
Viewing Angle(H/V) |
140°/140° |
Driving Method |
1/6 Scan |
Frame Refresh |
≥ 60Hz |
Data Refresh Rate |
>1500Hz |
Gray Scale |
16bit |
Power Consumption(avg.) |
300w/m² |
Input Voltage |
AC 110/220±10%, 50~60Hz |
Temperature(operating/storage) |
-20~50°C / -40~60°C |
Humidity(operating/storage) |
10%~90%RH / 10%~85%RH |
MTBF |
≥1000hrs |
Life Span |
≥100000hrs |
Pixel Failure |
<0.0003 |
