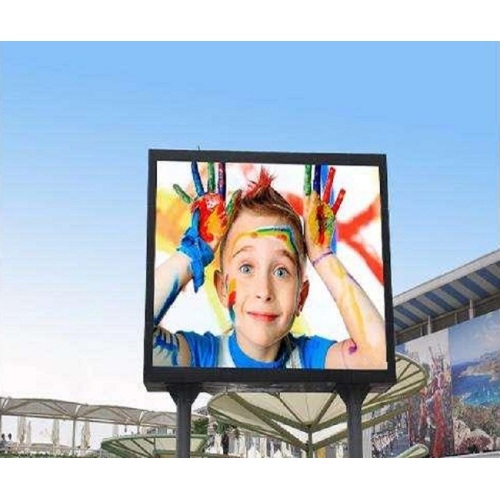

SMD3535 Outdoor LED Display Screen

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Incoterm:: FOB, CFR, CIF, EXW

Min. Order:: 1 Square Meter

Min. Order:: 1 Square Meter

Delivery Time:: 20 Days

Transportation:: Ocean, Air

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	8000 M²/month
Supply Ability:	10000 M²/month
Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	CCC.CE.ETL.FCC
Transportation:	Ocean,Air
Port:	Shenzhen

Product Description

SMD3535 Outdoor LED Display Screen

BOF Series
Robust, Strudy, Conventional
Outdoor Advertising Display

Specification

	BOF-4	BOF-6	BOF-8	BOF-10
Physical Pitch	4.81 mm	6.67 mm	8 mm	10 mm
Pixel Configuration	SMD 2727	SMD 2727	SMD 3535	SMD 3535
Pixel Density	43,264 pixels/m²	28,224 pixels/m²	15,625 pixels/m²	10,000 pixels/m²
Module Dimensions (W × H) (mm)	250 × 250	320 × 320	256 × 256	320 × 160
Panel Dimensions (mm)	1000 × 1000 × 187	1280 × 960 × 187	1280 × 960 × 187	1280 × 960 × 187
NO .of Modules Per Panel (W × H)	4 × 4	4 × 3	5 × 3	3× 6
Physical Resolution of Module (W × H)	52 × 52	48 × 48	32 × 32	32 × 16
Physical Resolution of Panel (W × H)	208 × 208	192 × 144	160 × 96	96 × 96
Panel Material	Steel / Aluminum	Steel / Aluminum	Steel / Aluminum	Steel / Aluminum
Weight	65/45	65/45	65/45	65/45
Processing	16 bit	16 bit	16 bit	16 bit
Colours	281 trillion	281 trillion	281 trillion	281 trillion
Contrast Ratio	2,000 : 1	2,000 : 1	2,000 : 1	2,000 : 1
Average Power Consumption	360 W/panel	360 W/panel	360 W/panel	360 W/panel
Max Power Consumption	900 W/panel	900 W/panel	900 W/panel	900 W/panel
Refresh Rate	>1,920 Hz	>1,920 Hz	>1,920 Hz	>1,920 Hz
Brightness	≥6500 nits	≥6500 nits	≥6500 nits	≥6500 nits
Horizontal Viewing Angle	160°	160°	160°	160°
Vertical Viewing angle	140°	140°	140°	140°
Expected Lifetime	100, 000 Hrs	100, 000 Hrs	100, 000 Hrs	100, 000 Hrs
Servicing	Front / Rear	Front / Rear	Front / Rear	Front / Rear
IP Rating (Front/Rear)	IP 65/ IP 54	IP 65/ IP 54	IP 65/ IP 54	IP 65/ IP 54
Operating Temp/Humidity	-20ºC - 50ºC / 10% - 90%	-20ºC - 50ºC / 10% - 90%	-20ºC - 50ºC / 10% - 90%	-20ºC - 50ºC / 10% - 90%
Storage Temp/Humidity	-20ºC - 50ºC / 10% - 90%	-20ºC - 50ºC / 10% - 90%	-20ºC - 50ºC / 10% - 90%	-20ºC - 50ºC / 10% - 90%

Feature
Multifunctional Module Buckle
Special multifunctional module buckle designed for adjusting gaps between module and cabinet to ensure the smoothness and alignment.

Frontg Service LED Display

Fast Installation and Easy Maintenance
Fast lock system design guarantees a quick and easy installation
Front access

Frontg Service LED Display (DIP) (1)

Outdoor Rated
IP65 rating for front and rear
Suitable brightness adjustable for outdoor day and night
Strong and high bright LED
Intelligent Software System
Intelligent control and player system by cloud technology
Time management and real time monitoring

installation

Company Introduction

Shenzhen BAKO VISION Technology Co.,Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, is SHENZHEN BAKO LTD holding end professional customers among domestic and overseas markets.
Do not be hesitate to contact us if you have any quiry!

factory

FAQ

Q1. Do you provide samples?is it free or extra?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q2.How to order?
A:Please send us your purchase order by Email or we can make you proforma invoice under your request.
We need to know the following information for your order before sending you PI.
1)Product information-Quantity,Specification(Size,Material,Technological if needed and Packing requirements etc.
2)Delivery time required.
3)Shipping information-Company name,Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if there's any in China.

Q3. Do you offer guarantee for the products?

A: Yes,we offer 2-5 years warranty to our products.
