Long Life Span Outdoor Curved LED Display

Long Life Span Outdoor Curved LED Display

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, FCA, CPT

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 30 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	6000m²/Month
Supply Ability:	6000m²
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,FCA,CPT
Certificate:	CCC, FCC, ETL, CE, EMC, ROHS
HS Code:	8528591090
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Guangzhou

Product Description

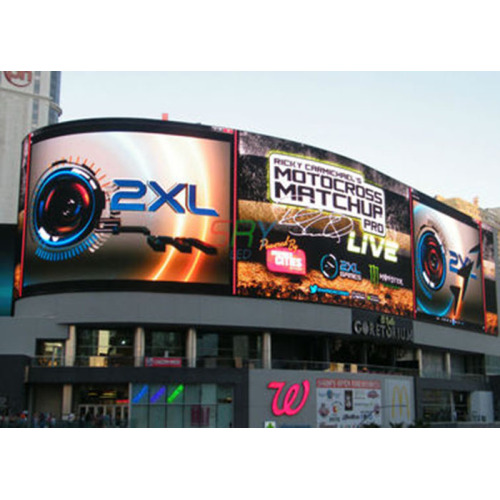

Outdoor Curved LED Display

Feature:
1. Lightweight, ultra slim and Seamless splicing
The weight of this LED display screen cabinet is only 9Kg/14kg, ultra slim, very easy to transport, stock and install. Seamless splicing advance visual performance.

2. Fanless design, silent operation low heat generated
Low voltage input, low heat generated and fanless design, advance LED Screen reliability.

3. IP65 rated Waterproof Class
Special designed cabinet for outdoor environment, waterproof LED module with Glue filling technology, standard signal & power interface with waterproof function.

4. Wide Viewing angles, High contrast ratio
Horizontally 140 degree, Vertically 140 degree wide viewing angles.

5. High brightness make sure visibility
Brightness is higher than 6500nits make sure visibility even directly under sun light.

Advantage:
1. Automatic brightness control,super processing ability,strong colour restoration.

2. Support various interfaces and signal sources.

3. Advance digital control technology, excellent effect.

4. High brightness,even in direct,full-on sunlight to ensure you attract more audience to get short ROI of your full color outdoor led display screen's investment.

5. Antiseptic and durable, can be used outdoor in all weather.

led display for outside

Technical Parameter:

Model	ODC-15.6
Pixel Pitch	15.6mm
Pixel Density	4109px/m²
LED Type	DIP346
LED Configuration	1R1G1B
Cabinet Dimension	1500*250mm
Cabinet Resolution	96*16px
Cabinet Weight	6.0kg
Cabinet Material	aluminum
Ingress Protection(front/rear)	IP65/IP54
Brightness	>6500nits
Viewing Angle(H/V)	110°/70°
Driving Method	Static driving
Frame Refresh	≥ 60Hz
Data Refresh Rate	>1500Hz
Gray Scale	16bit
Power Consumption(avg.)	250w/m²
Input Voltage	AC110/220±10% ,50~60Hz
Temperature(operating/storage)	-20~50°C / -40~60°C
Humidity(operating/storage)	10%~90%RH / 10%~85%RH
MTBF	≥1000hrs
Life Span	≥100000hrs
Pixel Failure	<0.0003

Trade Terms
1. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery
2. Shipping port: Shenzhen, Mainland China
3. MOQ: 1sqm

high brightness outdoor curved led display
