Windows Showcase Mesh Curtain LED Video Screen

Windows Showcase Mesh Curtain LED Video Screen

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, FCA, CPT

Min. Order:: 1 Square Meter

Min. Order:: 1 Square Meter

Delivery Time:: 30 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	6000m²/month
Supply Ability:	6000m²/month
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,FCA,CPT
Certificate:	CCC,FCC,ETL,CE,EMC,RoHS
HS Code:	8528591090
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Guangzhou

Product Description

Mesh Curtain LED Display is only 50% much lower power consumption comparing to conventional LED Display. It selected the special LED lamps and high efficiency power supplies.With over 70% high transparency rate,can see through and is suitable for glass wall mounting. Over 6500 nits high brightness and vivid color is suitable for all outdoor and indoor environment. Wide optional IP rating high protection level for whole of the screen, completely protected from water and dust of various weather condition also available with long life span. 10 to 18kg/m² gross lightweight and super slim screen body is easy to install and save installation space.Easy maintenance for both front and rear service.

curtain led video display

Description:

1.Outdoor decorative LED mesh curtain screen is the perfect architectural decoration patterns in the daytime and night. You can use both as glass wall or LED display screenAnd it becomes led display screen to display image and video at night.

2.Outdoor decorative LED curtain screen is ultra light weight design, which is easy to install. The convenient installation help everyone can install it easily by oneself. It can be packaged in one CMB which is save a lot in transportation. It is not only good for transport but also good for maintenance. Front and back maintain are available due to its special design.

3.LED curtain mesh screen can be installed directly on the wall or glass. The hollow design makes permeability up to 70% which is conducive to ventilation and lighting. The exquisite appearance is good for decoration of shopping mall, hotel, office building and 5s shop etc.

4.The frame shell save install material can be fixed easily. High-intensity sealed lamp with high quality up to IP67 protection level. The beautiful patterns can be customized for customer.

5.LED curtain mesh screen can display text, image and video. Low power consumption is also good for long life span.

6.IP67 protection rate features waterproof, anti-dust, wind resistant and anti-corrosion which is suitable for all kinds of using environment.

7.LED curtain mesh screen is very easy to set up. The cabinet was designed by our engineer very attentively and adopted advanced technology to manufacture which support front and rear installation. Cooling with wind is environment friendly and make noise free.

8.LED mesh curtain screen is widely used in stadium, shopping mall, 5s car shop and theme park etc.

Specifications:

	BG-3.75-6.67	BG-3.75-8	BG-5-6.67	BG-5-8
Physical Pitch	3.75*6.67mm	3.75*8mm	5*6.67mm	5*8mm
Pixel Configuration	SMD1921	SMD1921	SMD3528	SMD3528
Pixel Density	39,900 pixels/m²	33,250 pixels/m²	30,000 pixels/m²	25,000 pixels/m²
Module Dimensions(W*H)(mm)	480*320	480*320	480*320	480*320
Panel Dimensions(mm)	1920*640	1920*640	1920*640	1920*640
NO. Of Modules Per Panel(W*H)	4*2	4*2	4*2	4*2
Physical Resolution of Module(W*H)	128*48	128*40	96*48	96*40
Physical Resolution of Panel(W*H)	512*96	512*80	384*96	384*80
Panel Material	Aluminium	Aluminium	Aluminium	Aluminium
Single Cabinet Weight	11kg	10.2kg	10kg	9.5kg
Processing	14-16bit	14-16bit	14-16bit	14-16bit
Colour Number	281 trillion	281 trillion	281 trillion	281 trillion
Contrast Ratio	2000:1	2000:1	2000:1	2000:1
Average Power Consumption	207W/m²	201W/m²	209W/m²	203W/m²
Max. Power Consumption	690W/m²	670W/m²	696W/m²	670W/m²
Operating Temp/Humidity	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%
Storage Temp/Humidity	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%
Refresh Rate	＞1920Hz	＞1920Hz	＞1920Hz	＞1920Hz
Brightness	＞5500 nits	＞5500 nits	＞5500 nits	＞5500 nits
Horizontal Viewing Angle	160°	160°	160°	160°
Vertical Viewing Angle	140°	140°	140°	140°
Expected Lifetime	100,000Hrs	100,000Hrs	100,000Hrs	100,000Hrs
IP Rating	IP30	IP30	IP30	IP30
Servicing	Rear	Rear	Rear	Rear
Certification	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC

	BG-2525	BG-2535	BG-2550	BG-31.25	BG-3150
Physical Pitch	25mm	25mm(H), 35mm(V)	25mm(H), 50mm(V)	31.25mm	31.25mm(H), 50mm(V)
Pixel Configuration	1R1G1B
Pixel Density	1,600pixels/m²	1,120 pixels/m²	800 pixels/m²	1,024 pixels/m²	pixels/m²
Unit Size(W*H)(mm)	≥1500*250	≥1500*250	≥1500*250	≥1500*250	≥1500*250
Panel Dimensions(mm)	60*10	60*7	60*5	48*8	48*5
Panel Material	Aluminium	Aluminium	Aluminium	Aluminium	Aluminium
Weight	15kg/m²	10.6kg/m²	8.5kg/m²	15kg/m²	9.6kg/m²
Processing	14-16bit	14-16bit	14-16bit	14-16bit	14-16bit
Colour Number	281 trillion	281 trillion	281 trillion	281 trillion	281 trillion
Contrast Ratio	2000:1	2000:1	2000:1	2000:1	2000:1
Average Power Consumption	150W/m²	115W/m²	85W/m²	107W/m²	67W/m²
Max. Power Consumption	450W/m²	345W/m²	255W/m²	329W/m²	200W/m²
Operating Temp/Humidity	-30℃-60℃/ 10%-90%	-30℃-60℃/ 10%-90%	-30℃-60℃/ 10%-90%	-30℃-60℃/ 10%-90%	-30℃-60℃/ 10%-90%
Storage Temp/Humidity	-40℃-85℃/ 10%-95%	-40℃-85℃/ 10%-95%	-40℃-85℃/ 10%-95%	-40℃-85℃/ 10%-95%	-40℃-85℃/ 10%-95%
Refresh Rate	＞3840Hz	＞3840Hz	＞3840Hz	＞3840Hz	＞3840Hz
Brightness	＞7500 nits	＞6500 nits	＞5000 nits	＞6500 nits	＞4000 nits
Horizontal Viewing Angle	120°	120°	120°	120°	120°
Vertical Viewing Angle	60°	60°	60°	60°	60°
Expected Lifetime	100,000Hrs	100,000Hrs	100,000Hrs	100,000Hrs	100,000Hrs
IP Rating	IP67	IP67	IP67	IP67	IP67
Servicing	Front/Rear	Front/Rear	Front/Rear	Front/Rear	Front/Rear
Certification	CCC,CE,ETL, FCC,TUV	CCC,CE,ETL, FCC,TUV	CCC,CE,ETL, FCC,TUV	CCC,CE,ETL, FCC,TUV	CCC,CE,ETL, FCC,TUV

clear-led-wall-transparent-display-new-babylong-8

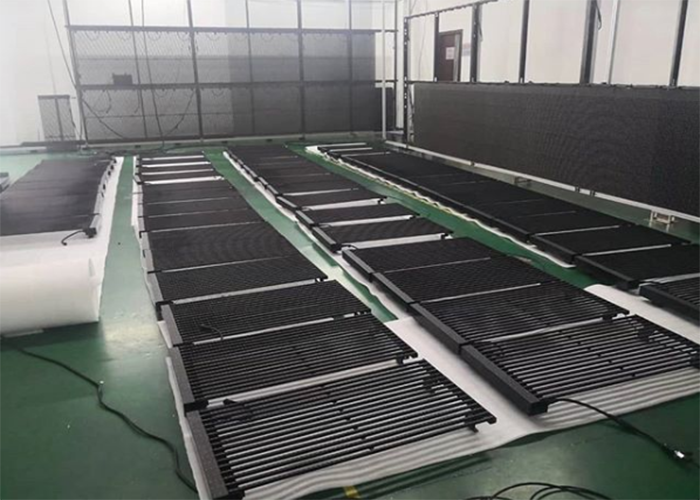

LED mesh screen panel

1. How to choose a proper led screen for your need?

You just need to consider three simple questions when you choose a led screen.

a.Will you use it indoor or outdoor?

b.Is it for rental usage(need to be moved from one place to another place very often) or for fixed installation (to be installed in one place forever)?

c.What is the approximate size of the whole led screen you would like to purchase?

2. How to install it after I received it?

We will offer you the drawing to guide you for installation, we could also offer drawing, software set up drawing or photo or arrange our engineer to help if needed.

3. How could I buy the products I need if there is no price in the website and could I get some samples first?

You can send your inquiry to us about the products you need,our sales will reply you within 24 hours to help you make the order.We welcome sample order to test and check quantity.

4. What is a custom LED display?

Custom LED displays can be designed to meet the needs of the user, taking into account all of the above for easy maintenance. Of course, maintenance can help to increase the service life of any electronic device, and measures are taken during the production process, so that maintenance costs are greatly reduced.

A custom LED display, as the name suggests, can control anything with any message you can think of. They are used in almost all industries, such as factories, banks, airports, universities, libraries, etc.

Custom LED displays are mounted on the wall or suspended from any ceiling for broadcasting information viewed from any distance. In addition, the brightness of these custom LED displays can be displayed very clearly at any distance.

5. I would like to ask you if it's possible to have my logo on the product.

A: We hope you know that our company perfectly support customized logo service. But, we also hope you know that it's an extra-service,so a little bit extra service fee is needed.
