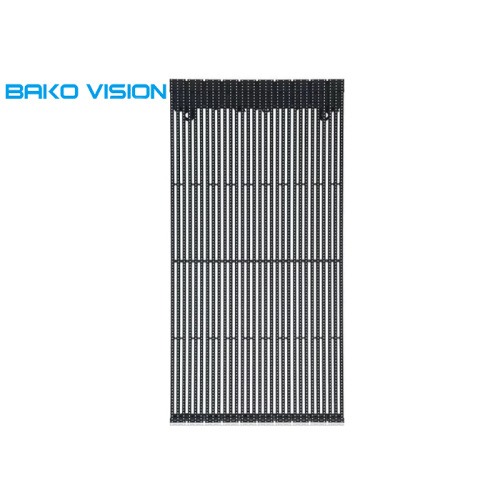

Window advertising Outdoor Mesh Curtain LED Display

Window advertising Outdoor Mesh Curtain LED Display

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, FCA, CPT

Min. Order:: 1 Square Meter

Min. Order:: 1 Square Meter

Delivery Time:: 30 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	6000m²/month
Supply Ability:	6000m²/month
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,FCA,CPT
Certificate:	CCC,FCC,ETL,CE,EMC,RoHS
HS Code:	8528591090
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Guangzhou

Product Description

Description: High transparency Outdoor Curtain LED Display screen, ultra flexible, easy to form a flat screen or curved to match with irregular shaped building facade, both pixel pitch, panel size and panel color can be customized.High transparency maximizes the natural light get inside of the building, also ensuring the screen has great ventilation and wind-resistance function.Fast inter-panel locks make installation quick and easy especially for a large-sized screen.Ultra light, a simple installation structure is enough to hold the screen, panels can be well fixed by locking the following two pieces of connector on installation structure. No need steel frame structure for installation, less impact on building.Both single LED strips and LED dot can be taken out for repair or replacement, which make service much more convenient.Head and tail of the panel with high quality components, product can be used in harsh various environment.

LED mesh screen display

BOC Series

High Transparency, High Brightness, Outdoor Curtain LED Display

Ultra lightweight and slim

High brightness for outdoor fixed installation High transparency

Lower Power Consumption

Only 50% power consumption comparing to conventional displays

Special LED selected and high efficiency power supply selected

High Protection Level

IP67 for whole screen, complete waterproof for various weather conditions

Screen life time is increased significantly

Exceptionally Lightweight and Slim

10-18 kg/m2 gross weight

Easy to install and save installation space

Fast Installation and Easy Maintenance

Both front and rear accessible for maintenance

Steel frame is canceled during installation

High Transparency and High Brightness

20-80% transparency rate, see through, suitable for glass wall mounting

>6500 nits brightness, for all outdoor environment Vivid colors

mesh LED display video wall

Specifications:

	BG-2525	BG-2535	BG-2550	BG-31.25	BG-3150
Physical Pitch	25mm	25mm(H), 35mm(V)	25mm(H), 50mm(V)	31.25mm	31.25mm(H), 50mm(V)
Pixel Configuration	1R1G1B
Pixel Density	1,600pixels/m²	1,120 pixels/m²	800 pixels/m²	1,024 pixels/m²	pixels/m²
Unit Size(W*H)(mm)	≥1500*250
Panel Dimensions(mm)	60*10	60*7	60*5	48*8	48*5
Panel Material	Aluminium
Weight	15kg/m²	10.6kg/m²	8.5kg/m²	15kg/m²	9.6kg/m²
Processing	14-16bit
Colour Number	281 trillion
Contrast Ratio	2000:1
Average Power Consumption	150W/m²	115W/m²	85W/m²	107W/m²	67W/m²
Max. Power Consumption	450W/m²	345W/m²	255W/m²	329W/m²	200W/m²
Operating Temp/Humidity	-30℃-60℃/ 10%-90%
Storage Temp/Humidity	-40℃-85℃/ 10%-95%
Refresh Rate	＞3840Hz
Brightness	＞7500 nits	＞6500 nits	＞5000 nits	＞6500 nits	＞4000 nits
Horizontal Viewing Angle	120°
Vertical Viewing Angle	60°
Expected Lifetime	100,000Hrs
IP Rating	IP67
Servicing	Front/Rear
Certification	CCC,CE,ETL, FCC,TUV
