Outdoor Curtain LED Display

Get Latest Price

Payment Type:: L/C, T/T, Paypal, Western Union

Incoterm:: FOB, CFR, CIF, FCA, CPT

Min. Order:: 1 Square Meter

Min. Order:: 1 Square Meter

Delivery Time:: Within 30 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	6000sqm/month
Supply Ability:	6000sqm/month
Payment Type:	L/C,T/T,Paypal,Western Union
Incoterm:	FOB,CFR,CIF,FCA,CPT
Certificate:	CCC,FCC,CE,ETL,RoHS,EMC
HS Code:	8528591090
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Guangzhou

Product Description

Bako Vision Outdoor CUrtain LED Display with outstanding feature of most transparent and lightest eight.Transparent Rate＞70%,similar product of other company transparent rate is ≤30%,Traditional outdoor cabinet=No transparent(need air conditioner in a sealed room).Vantilated and transparent, air convection design, heat dissipation quickly.It has wide application range: urban landscape modeling, the House of sculpture lighting, huge stage background, bridge rivers and dams landscape.

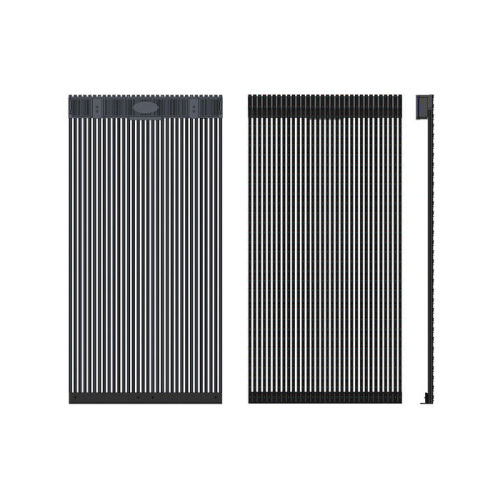

led curtain video display

BOC Series

High Transparency, High Brightness, Outdoor Curtain LED Display

Ultra lightweight and slim

High brightness for outdoor fixed installation High transparency

Lower Power Consumption

Only 50% power consumption comparing to conventional displays

Special LED selected and high efficiency power supply selected

High Protection Level

IP67 for whole screen, complete waterproof for various weather conditions

Screen life time is increased significantly

Exceptionally Lightweight and Slim

10-18 kg/m2 gross weight

Easy to install and save installation space

Fast Installation and Easy Maintenance

Both front and rear accessible for maintenance

Steel frame is canceled during installation

High Transparency and High Brightness

20-80% transparency rate, see through, suitable for glass wall mounting

>7500 nits brightness, for all outdoor environment Vivid colors

outdoor mesh led display screen

Specifications:

	BG-7.5-8	BG-10	BG-16	BG-20
Physical Pitch	7.5*8mm	10*10mm	16*16mm	20*20mm
Pixel Configuration	SMD3528	SMD3528	SMD3528	SMD3528
Pixel Density	16,625pixels/m²	10,000 pixels/m²	3,906 pixels/m²	2,500 pixels/m²
Module Dimensions(W*H)(mm)	480*320	480*320	480*320	480*320
Panel Dimensions(mm)	1920*640	1920*640	1920*640	1920*640
NO. Of Modules Per Panel(W*H)	4*2	4*2	4*2	4*2
Physical Resolution of Module(W*H)	64*40	48*32	30*20	24*16
Physical Resolution of Panel(W*H)	256*80	192*64	120*40	96*32
Panel Material	Aluminium	Aluminium	Aluminium	Aluminium
Single Cabinet Weight	9kg/m²	8kg/m²	7.2kg/m²	6.5kg/m²
Processing	14-16bit	14-16bit	14-16bit	14-16bit
Colour Number	281 trillion	281 trillion	281 trillion	281 trillion
Contrast Ratio	2000:1	2000:1	2000:1	2000:1
Average Power Consumption	204W/m²	195W/m²	218W/m²	218W/m²
Max. Power Consumption	670W/m²	650W/m²	650W/m²	650W/m²
Operating Temp/Humidity	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%
Storage Temp/Humidity	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%
Refresh Rate	＞1920Hz	＞1920Hz	＞1920Hz	＞1920Hz
Brightness	＞5500 nits	＞5500 nits	＞5500 nits	＞5500 nits
Horizontal Viewing Angle	160°	160°	160°	160°
Vertical Viewing Angle	140°	140°	140°	140°
Expected Lifetime	100,000Hrs	100,000Hrs	100,000Hrs	100,000Hrs
IP Rating	IP30	IP30	IP30	IP30
Servicing	Rear	Rear	Rear	Rear
Certification	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC

Description:

1.Ultra transparency and slim, simple structure and design, easy to assemble and disassemble.
2.Hollow cabinet design reduced the cabinet weight, less than 10kg per cabinet, ensure the stage transparency.
3.Professional flight case packing available, easy for transportation.
4.Smart design for the power box inside, low failure rate, more stable.
5.Fast lock design, quick install, save labor cost and time.
6.High gray scale and high refresh rate, brings fantastic showing effect.

Company Profile:

Welcome to Shenzhen Bako Vision Technology Co.Limited.
We are a full range manufacturer and LED display solutions provider and its ancillary systems worldwide since 2009, headquartered in Shenzhen with a 6,000m2 production state of the art facility to cover international demands. We provide a one-stop shopping in the design, production, and distributions of LED displays and solutions for our customers domestically and globally.
Our products include ranges of indoor, outdoor, fixed, rental and creative LED Solutions for various applications including sports, advertisement, concerts, shopping malls, stadiums, exhibitions or any other indoor and outdoor events that comes to your imagination.
We strictly follows ISO9001:2008 quality management system and passed CE,FCC,UL,ROHS,CCC etc. All of these factors ensure high quality LED products and effective services.
We keep the company culture ``Professional, Concentration, Focus`` aimed at LED. With the development of led technology and the perfervid competition in the LED field.

transparent LED video display
