Outdoor IP67 Waterproof Curtain Mesh LED Display

Outdoor IP67 Waterproof Curtain Mesh LED Display

Get Latest Price

Payment Type:: L/C, T/T, Paypal, Western Union

Incoterm:: FOB, CFR, CIF, FCA, CPT

Min. Order:: 1 Square Meter

Min. Order:: 1 Square Meter

Delivery Time:: Within 30 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	6000sqm/month
Supply Ability:	6000sqm/month
Payment Type:	L/C,T/T,Paypal,Western Union
Incoterm:	FOB,CFR,CIF,FCA,CPT
Certificate:	CCC,FCC,CE,ETL,RoHS,EMC
HS Code:	8528591090
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Guangzhou

Product Description

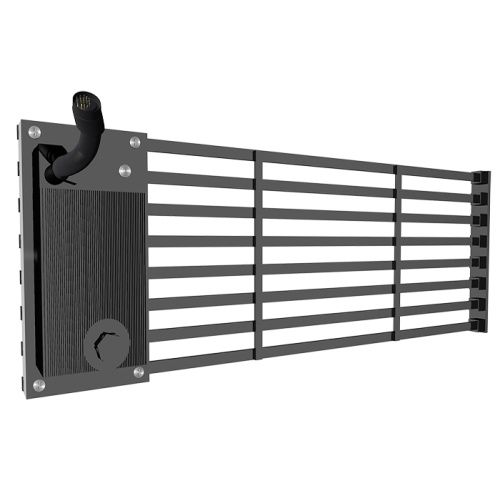

Bako Vision Curtain Mesh LED display has the ultimate lightweight and minimalist structure, transparent design makes the fantasy effect, supper protection and waterproof ,windproof and dustproof. LED Mesh Curtain LED Display pursue a minimalist design of LED display holding structure, minimalist holding structure, small size, easy installation, easy hoisting and replaceable. Best investment for the high big Mesh Curtain LED display.

outdoor mesh led display screen

BOC Seris

High Transparency, High Brightness, Outdoor Curtain LED Display

Ultra lightweight and slim

High brightness for outdoor fixed installation High transparency

mesh LED display

Lower Power Consumption

Only 50% power consumption comparing to conventional displays

Special LED selected and high efficiency power supply selected

High Protection Level

IP67 for whole screen, complete waterproof for various weather conditions

Screen life time is increased significantly

Exceptionally Lightweight and Slim

10-18 kg/m² gross weight

Easy to install and save installation space

Fast Installation and Easy Maintenance

Both front and rear accessible for maintenance

Steel frame is canceled during installation

High Transparency and High Brightness

20-80% transparency rate, see through, suitable for glass wall mounting

>7500 nits brightness, for all outdoor environment Vivid colors

led curtain video display

Specifications:

	BG-2525	BG-2535	BG-2550	BG-31.25	BG-3150
Physical Pitch	25mm	25mm(H), 35mm(V)	25mm(H), 50mm(V)	31.25mm	31.25mm(H), 50mm(V)
Pixel Configuration	1R1G1B
Pixel Density	1,600pixels/m²	1,120 pixels/m²	800 pixels/m²	1,024 pixels/m²	pixels/m²
Unit Size(W*H)(mm)	≥1500*250
Panel Dimensions(mm)	60*10	60*7	60*5	48*8	48*5
Panel Material	Aluminium
Weight	15kg/m²	10.6kg/m²	8.5kg/m²	15kg/m²	9.6kg/m²
Processing	14-16bit
Colour Number	281 trillion
Contrast Ratio	2000:1
Average Power Consumption	150W/m²	115W/m²	85W/m²	107W/m²	67W/m²
Max. Power Consumption	450W/m²	345W/m²	255W/m²	329W/m²	200W/m²
Operating Temp/Humidity	-30℃-60℃/ 10%-90%
Storage Temp/Humidity	-40℃-85℃/ 10%-95%
Refresh Rate	＞3840Hz
Brightness	＞7500 nits	＞6500 nits	＞5000 nits	＞6500 nits	＞4000 nits
Horizontal Viewing Angle	120°
Vertical Viewing Angle	60°
Expected Lifetime	100,000Hrs
IP Rating	IP67
Servicing	Front/Rear
Certification	CCC,CE,ETL, FCC,TUV
