IP65 Wide Viewing Angle Outdoor Billboard LED Display

IP65 Wide Viewing Angle Outdoor Billboard LED Display

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, FCA, CPT

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 30 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	6000 ㎡/ Month
Supply Ability:	6000 ㎡/ Month
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,FCA,CPT
Certificate:	CCC,FCC,ETL,CE,EMC,RoHS
HS Code:	8528591090
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Guangzhou

Product Description

IP65 Wide Viewing Angle Outdoor Billboard LED Display

Application
Stock exchange centers, customs, stadiums, studio, shopping malls, railways, airports, harbors,high way, commercial advertising, Stadium perimeter, mobile media, bus station,
schools,telecommunications,entertainment events, business establishments, such as banks, etc;

Our Services
1. Provides all LED display relative solution, like installation drawing etc.
2. Have free training about how to use and maintain LED display with our professional engineer.
3. Provide free spare parts for future urgent need.
4. Technical Support: We could send our engineer to guide the installation for you. But the relevant cost should be paid by your esteemed company such as accommodation & round-trip ticket.
5. Professional engineer in service after sales, 18/7 for any inquiry.
6. All other service request will be considered in BST , please contact with sales in details.

Technical support:
1. Installation and Maintain Manual
2. LED display system connection diagram
3. Data wire connection diagram
4. Power supply wire connection diagram
5. multi-language software Guidance

Warranty
We provide 2 years warranty. During the warranty time, we provide free parts for replacement , but we will charge you a productive cost for the parts when the warranty expires.

Case Show

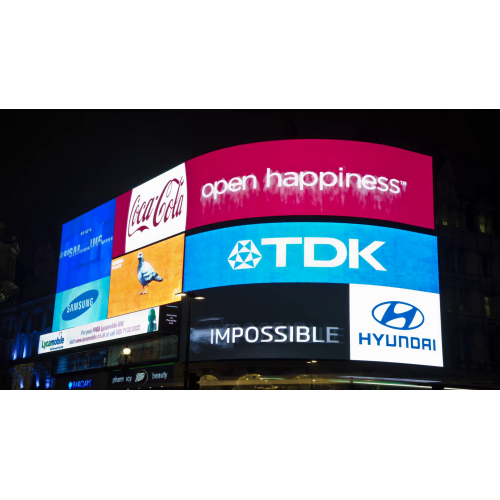

Billboard LED Display

Aging Test

Full Colour SMD Outdoor Billboard LED Panel

	BOF-10
Physical Pitch	10 mm
Pixel Configuration	SMD 3535
Pixel Density	10,000 pixels/m² 12,280 pixels/panel
Module Dimensions (W × H) (mm)	320 × 320
Panel Dimensions (mm)	1280 × 960 × 187
NO .of Modules Per Panel (W × H)	4 × 3
Physical Resolution of Module (W × H)	32 × 32
Physical Resolution of Panel (W × H)	128 × 96
Panel Material	Steel / Aluminum
Weight	80 kg/unit
Processing	16 bit
Colour	281 trillion
Contrast Ratio	2,000 : 1
Average Power Consumption	360 W /panel
Max Power Consumption	900 W /panel
Brightness	>6,500 nits
Refresh Rate	>1,500 Hz
Vertical Viewing angle	140°
Horizontal Viewing Angle	140°
Expected Lifetime	100,000 Hours
Servicing	Front / Rear
IP Rating (Front/Rear)	IP65 / IP54
Operating Temp/Humidity	-20℃- 50℃ / 10% - 90%
Storage Temp/humidity	-20℃- 50℃ / 10% - 90%
