High Contrast customizable Irregular Shape Display
  • High Contrast customizable Irregular Shape Display
  • High Contrast customizable Irregular Shape Display
  • High Contrast customizable Irregular Shape Display
High Contrast customizable Irregular Shape Display
High Contrast customizable Irregular Shape Display
High Contrast customizable Irregular Shape Display

High Contrast customizable Irregular Shape Display

Payment Type:
L/C, T/T
Incoterm:
FOB, CFR, CIF, FCA, CPT
Min. Order:
1 Piece/Pieces
Min. Order:
1 Piece/Pieces
Delivery Time:
30 Days
Transportation:
Ocean, Land, Air
Port:
ShenZhen, GuangZhou
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: CHINA
Productivity: 6000m²/Month
Supply Ability: 6000m²/Month
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,FCA,CPT
Certificate: CCC,FCC,ETL,CE,EMC,ROHS
HS Code: 8528591090
Transportation: Ocean,Land,Air
Port: ShenZhen,GuangZhou
Product Description
Product Description

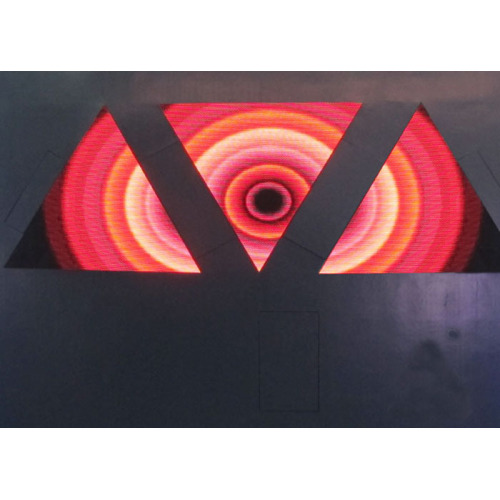

Apexls-P6 Triangle LED display is including upright and inverted triangle LED module. This kind of new designed LED module can be jointed to any polygon display. It is making a prominent characteristic and technology improvement in this area.

Apexls-P6 SMD triangle module main features

  1. It can be spliced into diamond, triangle and other polygon display according to different requirements, used for indoor decoration for wall or floor.
  2. High contrast, good flatness and no splicing gap.
  3. Display without mosaic phenomenon. Color uniformity, high contrast and high brightness make the screen show pictures clearly.
  4. Distributed scanning and individual module design make higher reliability stability.
  5. High gray scale and refresh rate make the display show images without ghosting phenomenon.
Applications


Science and technology museum, Galleries, Lounges, Hotels, Shopping malls, Bars and other


Pixel Pitch

6mm

Screen Resolution

192×192dots

LED Type

SMD3528

LED Configuration

1R1G1B

Screen  Size

1152×1152×1152mm

Screen area

2.03m²

Ingress Protection

IP31

Brightness

>1600nits

Data Refresh Rate

400-1500Hz

Power Consumption(avg)

1.45 KW/PC

Max Power Consumption

0.51 KW/PC

Input voltage

AC100-240V/50-60HZ

Working  Temperature

-20~60℃

Working  Humidity

10%RH~90%RH

Gray  Scale

14 bit


Customizable creative triangle screen



high gray scale irregular shape led display


customized size triangle led display full color


full color Customizable creative triangle screen
