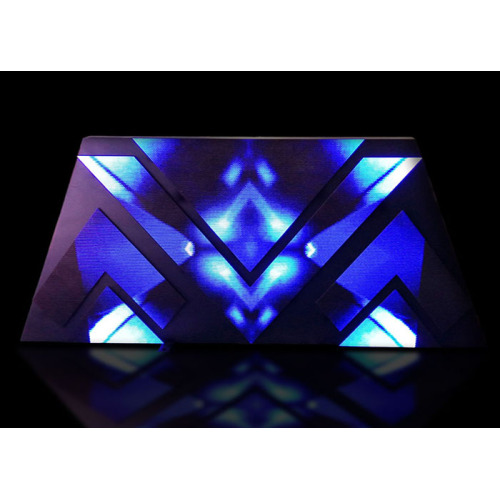

Easy installation customizable Shape LED Display

We can customize the display of various sizes and sizes according to your requirements.

Key Feature

1. Customized:Can be customized required as any sizes and any pixel pitches.
2. Application:For outdoor or indoor.
3. Structure:Aluminum material structure which lighter weighs and better for heat dissipation.
4. Design:Special PCB design which can make sure the showing picture distortionless.
5. Maintain:Support front and rear maintenance.
6. Installation:Support hanging installation, stand on ground or mobile using.
7. Controlling:Both synchronous and asynchronous control way is available for LED balls.
8. Effect:The creative appearance and wonderful showing effect attracts most attention during the usage.
9. Wide Viewing Angle for Broader Reach
10. Easy installation and operation.
11. Environmental-friendly and energy-saving.

Model	ODF-4	ODF-6	ODF-8	ODF-10
Pixel Pitch	4.81mm	6.67mm	8mm	10mm
Pixel Density	43264 px/m2	28224 px/m2	15625 px/m2	10000 px/m2
LED Type	SMD1921	SMD2727	SMD3535	SMD3535/DIP346
Cabinet Dimension	1000*1000mm	1280*960mm	1280*960mm	1280*960mm
Cabinet Resolution	208*208px	192*144px	160*120px	128*96px
Cabinet Weight	65kg	79kg	79kg	79kg
Cabinet Material	cold steel	cold steel	cold steel	cold steel
Ingress Protection (front/rear)	IP65/IP54	IP65/IP54	IP65/IP54	IP65/IP54
Brightness	>5500nits	>5500nits	>5500nits	>5500nits/>6500nits
Viewing Angle(H/V)	140°/140°	140°/140°	140°/140°	140°/140° / 120°/70°
Driving Method	1/9 Scan	1/4 Scan	1/4 Scan	1/2 Scan / 1/4 Scan
Frame Refresh	≥ 60Hz	≥ 60Hz	≥ 60Hz	≥ 60Hz
Data Refresh Rate	>1500Hz	>1500Hz	>1500Hz	>1500Hz
Gray Scale	16bit	16bit	16bit	16bit
Power Consumption(avg.)	250w/m2	250w/m2	250w/m2	250w/m2
Input Voltage	AC 110/220±10% 50~60Hz	AC 110/220±10% 50~60Hz	AC 110/220±10% 50~60Hz	AC 110/220±10% 50~60Hz
Temperature (operating/storage)	-20~50°C / -40~60°C	-20~50°C / -40~60°C	-20~50°C / -40~60°C	-20~50°C / -40~60°C
Humidity (operating/storage)	10%~90%RH 10%~85%RH	10%~90%RH 10%~85%RH	10%~90%RH 10%~85%RH	10%~90%RH 10%~85%RH
MTBF	≥1000hrs	≥1000hrs	≥1000hrs	≥1000hrs
Life Span	≥50000hrs	≥50000hrs	≥50000hrs	≥50000hrs
Pixel Failure	<0.0003	<0.0003	<0.0003	<0.0003

Q1: Are you a factory or just a trade company?
A1:We is a led display factory with R&D department and production line,professional engineering team and energetic sales team.Warmly welcome to visit our factory and have face-to-face business talk to better understand each other .Or when you are free ,we can have SKYPE VIDEO TALKING ,and show our factory.

Q2: What's the warranty of your LED Display ?

A2: 2-5 years warranty .and 100000 hours life span.During the warranty period ,we can offer you related after-sales service. Our professional engineering team are always ready to answer your questions.

Q3: How can I get technical support?
Q3: We treasure every customer that shake hands with us . We offer you TEAMVIEWER help by Online Video and can send professional engineer to your city to offer on-site guide .

Q4: What about your service?
A4: We have a professional 13 years technical team to solve your problem . We have an energetic and patient sales team .We can offer a complete LED design solution for your LED project before confirming the order . We can instruct you how to use, configure your led display , and do some maintenance with spare parts. Also, we can send professional engineer to your city to offer on-site guide and offer training.Mostly,our led display do not have big problems within warranty time.

Q5: Could you do the design for us ?

A5: Yes, we have a professional team having rich experience in design our products. You can tell us the ideas, we will help to carry out your idea into perfect boxes.

Q6: How can I confirm the quality of the products that I want?

A6 : We will make samples and send to you to confirm first; welcome to visit our factory and QC the products.
