Easy maintenance slim Irregular Shape LED Display

Easy maintenance slim Irregular Shape LED Display

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, FCA, CPT

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 30 Days

Transportation:: Ocean, Land, Air

Port:: ShenZhen, GuangZhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	CHINA
Productivity:	6000m²/Month
Supply Ability:	6000m²/Month
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,FCA,CPT
Certificate:	CCC,FCC,ETL,CE,EMC,ROHS
HS Code:	8528591090
Transportation:	Ocean,Land,Air
Port:	ShenZhen,GuangZhou

Product Description

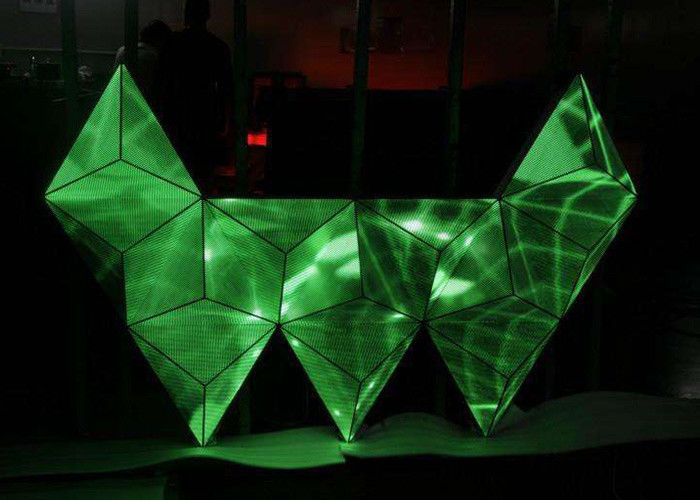

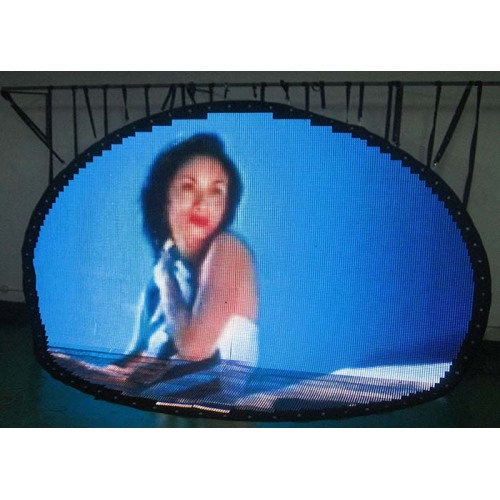

As shown below are some of our collections we custom-made for our clients. You can either select from our collections or customerize your own shape and size, just tell us your requirements or creative thoughts, we will try to deliver your creativeness.

Key Feature

Excellent heat sink performance, work properly in well-ventilated areas without air-conditioning;
Excellent energy-saving design, cut down on your electricity bills by 30%;
High reliability of back-up design, enjoy 24/7 continuous work;
Optional of Convex Shaped, Concave Shaped and Wave Shaped screens
High color fidelity and uniformity
Excellent waterproof structure
Wide viewing angle
Easy maintenance
Compact, rugged and light-weight construction, cut down on cost of supporting structure by 20%;
High refresh rate and large 16-bit gray-scale, high-contrast for crisper details and purer colors;
Strict quality control process, ensure 100,000 hours' service time, enjoy peace of mind for years to come;
Custom-made for your peculiar project case.

Model	OD-4	OD-6	OD-8	OD-10
Pixel Pitch	4mm	6mm	8mm	10mm
Pixel Density	62500 pixels/m²	27778 pixels/m²	15625 pixels/m²	10000 pixels/m²
LED Type	SMD1921/2525	SMD3535	SMD3535	SMD3535/DIP346
LED Configuration	1R1G1B	1R1G1B	1R1G1B	1R1G1B
Cabinet Dimension	1024mm*768mm	1152mm*960mm	1024mm*768mm	960mmx960mm
Cabinet Resolution	256*192pixels	192*160pixels	128*96pixels	96*96pixels
Cabinet Weight	50kg	65kg	51kg	60kg
Cabinet Material	cold steel	cold steel	cold steel	cold steel
Ingress Protection (front/rear)	IP65/IP54	IP65/IP54	IP65/IP54	IP65/IP54
Brightness	>6500nits	>6500nits	>6500nits	>6500nits
Viewing Angle(H/V)	140°/140°	140°/140°	140°/140°	140°/140°(120°/70°)
Driving Method	1/8 scan	1/6 scan	1/8 scan	1/4 Scan
Frame Refresh	≥ 60Hz	≥ 60Hz	≥ 60Hz	≥ 60Hz
Data Refresh Rate	>1500Hz	>1500Hz	>1500Hz	>1500Hz
Gray Scale	16bit	16bit	16bit	16bit
Power Consumption(avg.)	300w/m²	300w/m²	275w/m²	250w/m²
Input Voltage	AC 110/220±10% 50~60Hz	AC 110/220±10% 50~60Hz	AC 110/220±10% 50~60Hz	AC 110/220±10% 50~60Hz
Temperature (operating/storage)	-20~50°C / -40~60°C	-20~50°C / -40~60°C	-20~50°C / -40~60°C	-20~50°C / -40~60°C
Humidity(operating/storage)	10%~90%RH / 10%~85%RH	10%~90%RH / 10%~85%RH	10%~90%RH / 10%~85%RH	10%~90%RH / 10%~85%RH
MTBF	≥1000hrs	≥1000hrs	≥1000hrs	≥1000hrs
Life Span	≥100000hrs	≥100000hrs	≥100000hrs	≥100000hrs
Pixel Failure	<0.0003	<0.0003	<0.0003	<0.0003
