Full Color HD Flexible LED Display

Get Latest Price

Payment Type:: L/C, T/T, Paypal, Western Union

Incoterm:: FOB, CFR, CIF, FCA, CPT

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: Within 30 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	6000sqm/month
Supply Ability:	6000sqm/month
Payment Type:	L/C,T/T,Paypal,Western Union
Incoterm:	FOB,CFR,CIF,FCA,CPT
Certificate:	CCC,FCC,CE,ETL,RoHS,EMC
HS Code:	8528591090
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Guangzhou

Product Description

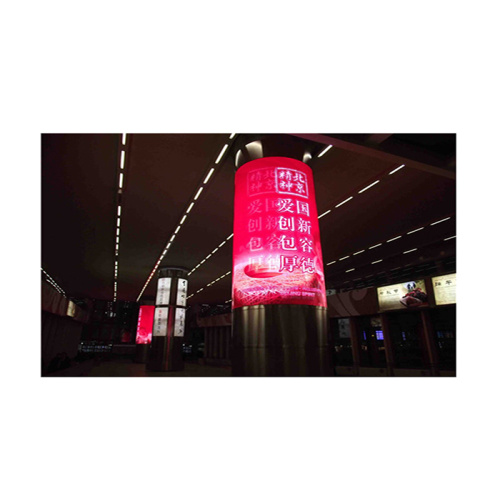

Bako Vision flexible Indoor Soft LED Display is mainly for indoor HD video wall usage, such as commercial advertising, conference, mobile media, night club, entertainment events, business establishments, can install in banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio, shopping, malls, railways, airports, harbors, etc.

soft led display panel

BS Series

Flexible Rubber Module, Creative Solutions

Convex, Concave or Twisted Available Module For Any Creative Shape and Size, For Unique Installations

Ultra Thin and Lightweight

Magnetic Connection for Easy Maintenance

Soft Ribbon Rubber

Durable soft rubber module, anti-static electricity Soft PCB and rubber material

Integrated SMD, IC, Circuit for easy maintenance and heat dissipation

Magnetic connection for easy maintenance

Creative and Customized Forms

For any convex, concave or twisted installations Customized pixel pitches available for variable installations

Slim and Lightweight and Quiet

5mm thickness, space efficiency

0.18kg per module, shipping cost and installation cost saving Fanless design

	BS-2	BS-3	BS-4	BS-6
Physical Pitch	2.5mm	3mm	4mm	6.66mm
Pixel Configuration	SMD2121	SMD2121	SMD2121	SMD3528
Pixel Density	160,000 pixels/m²	111,111 pixels/m²	62,500 pixels/m²	22,545 pixels/m²
Module Dimensions(W*H)(mm)	240*120	240*120	240*120	320*160
Panel Dimensions(mm)	Customized	Customized	Customized	Customized
Physical Resolution of Module(W*H)	96*48	80*40	60*30	48*24
Weight	8.2kg/m²	8.2kg/m²	8.2kg/m²	8.2kg/m²
Processing	14-16bit	14-16bit	14-16bit	14-16bit
Colour Number	281 trillion	281 trillion	281 trillion	281 trillion
Contrast Ratio	4000:1	4000:1	4000:1	4000:1
Average Power Consumption	9W/m²	10W/m²	10W/m²	10W/m²
Max. Power Consumption	12W/m²	13W/m²	13W/m²	13W/m²
Operating Temp/Humidity	-20℃-60℃/10%-60%	-20℃-60℃/10%-60%	-20℃-60℃/10%-60%	-20℃-60℃/10%-60%
Storage Temp/Humidity	-40℃-80℃/10%-90%	-40℃-80℃/10%-90%	-40℃-80℃/10%-90%	-40℃-80℃/10%-90%
Refresh Rate	＞1920Hz	＞1920Hz	＞1920Hz	＞1920Hz
Brightness	＞1000 nits	＞1000 nits	＞1500 nits	＞1500 nits
Driving Method	1/40	1/40	1/40	1/40
Horizontal Viewing Angle	160°	160°	160°	160°
Vertical Viewing Angle	140°	140°	140°	140°
Expected Lifetime	100,000Hrs	100,000Hrs	100,000Hrs	100,000Hrs
IP Rating	IP40	IP40	IP40	IP40
Servicing	Front	Front	Front	Front
Certification	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC

soft led display

After-sales Service

1: Warranty: 2 years

2: Service time: 24 hours*7 days.

3: All of our led display have proceeded aging test before shipment,

And we guarantee to use our products safety.

4: All the led display are inspected before shipment, If any problems happen, do not hesitate to contact with us, our team will do our best to solve for customer within 48hours.

Package:

package
