P3.91 HD Rental Indoor LED Display Panel

P3.91 HD Rental Indoor LED Display Panel

Get Latest Price

Payment Type:: L/C, T/T, Paypal, Western Union

Incoterm:: FOB, CFR, CIF, FCA, CPT

Min. Order:: 1 Square Meter

Min. Order:: 1 Square Meter

Delivery Time:: Within 30 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	6000sqm/month
Supply Ability:	6000sqm/month
Payment Type:	L/C,T/T,Paypal,Western Union
Incoterm:	FOB,CFR,CIF,FCA,CPT
Certificate:	CCC,FCC,CE,ETL,RoHS,EMC
HS Code:	8528591090
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Guangzhou

Product Description

Description:

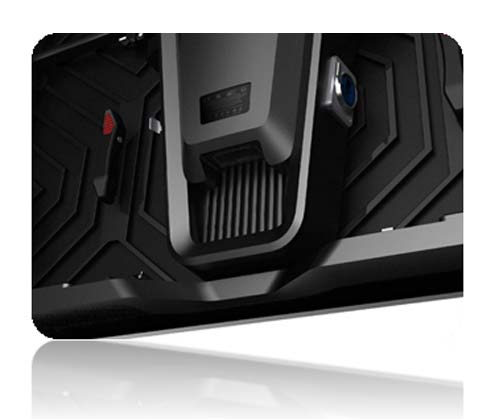

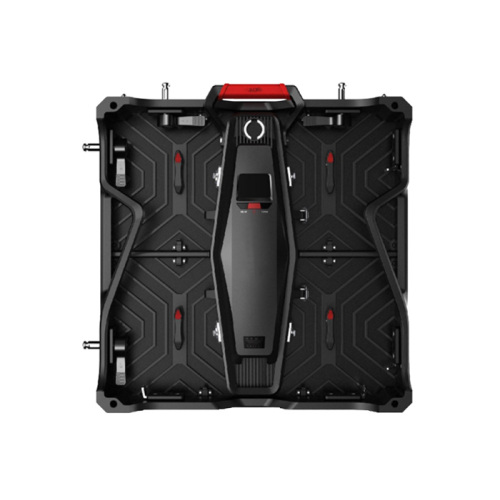

Our Indoor/Outdoor Rental LED Display have achieved Reddot Award. Indoor Rental LED Display cabinet is slim and rear design is smooth edged surface that makes you handle safely. Handle is innovative, grip and wide for easy handling. In the rear box there is a LCD display that it shows voltage, temperature, cabinet usage timing for every time used and total hours of usage. Power and signal lamps indicates cabinet status.

indoor rental led display

Key Feature

• Optional of Convex Shaped, Concave Shaped and Wave Shaped screens

• Optional of Front service and rear service

• Front service module design, easy for maintenance

• Extremely close view distances and view angles

• Quick lock system allowing fast rigging

• Silent operation

• Excellent thermal management

• Lightweight and seamless

• Application: Rental/Fixed

Specifications:

	BIR-Ⅰ-2	BIR-Ⅰ-3	BIR-Ⅰ-4	BIR-Ⅰ-6
Physical Pitch	2.97mm	3.91mm	4.81mm	6.25mm
Pixel Configuration	SMD2121	SMD2121	SMD2121	SMD3528
Pixel Density	112,896 pixels/m²	65,536pixels/m²	43,264 pixels/m²	25,000 pixels/m²
Module Dimensions(W*H)(mm)	250250/ 250500	250250/ 250500	250250/ 250500	250250/ 250500
Panel Dimensions(mm)	50050080/ 500100080	50050080/ 500100080	50050080/ 500100080	50050080/ 500100080
NO. Of Modules Per Panel(W*H)	2*2	2*2	2*2	2*2
Physical Resolution of Module(W*H)	8484/ 84168	6464/ 64128	5252/ 52104	4040/ 4080
Physical Resolution of Panel(W*H)	168168/ 168336	128125/ 128256	104104/ 104208	8080/ 80160
Panel Material	Die-casting Aluminium	Die-casting Aluminium	Die-casting Aluminium	Die-casting Aluminium
Single Cabinet Weight	7/13kg/panel	7/13kg/panel	7/13kg/panel	7/13kg/panel
Processing	14-16bit	14-16bit	14-16bit	14-16bit
Colour Number	281 trillion	281 trillion	281 trillion	281 trillion
Contrast Ratio	4000:1	4000:1	4000:1	4000:1
Average Power Consumption	60/120W/panel	60/120W/panel	60/120W/panel	60/120W/panel
Max. Power Consumption	110/400W/panel	110/400W/panel	110/400W/panel	110/400W/panel
Operating Temp/Humidity	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%
Storage Temp/Humidity	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%
Refresh Rate	＞1920Hz	＞1920Hz	＞1920Hz	＞1920Hz
Brightness	900-1200 nits	900-1200 nits	900-1200 nits	900-1200 nits
Horizontal Viewing Angle	160°	160°	160°	160°
Vertical Viewing Angle	140°	140°	140°	140°
Expected Lifetime	100,000Hrs	100,000Hrs	100,000Hrs	100,000Hrs
Max Stacking	20/10	20/10	20/10	20/10
Max Hanging	20/10	20/10	20/10	20/10
IP Rating (Front/Rear)	IP40/IP21	IP40/IP21	IP40/IP21	IP40/IP21
Servicing	Front/Rear	Front/Rear	Front/Rear	Front/Rear
Certification	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC

Dual data connection

There is optional data connecting port on cabinets under rear box, you can use it if standard one fails.

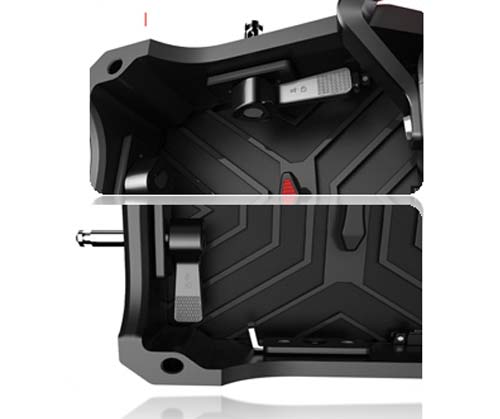

Strong Locks for hanging installation

The cabinets locks are smooth edged, easy handling and strong that you can hang up many cabinets in same row...

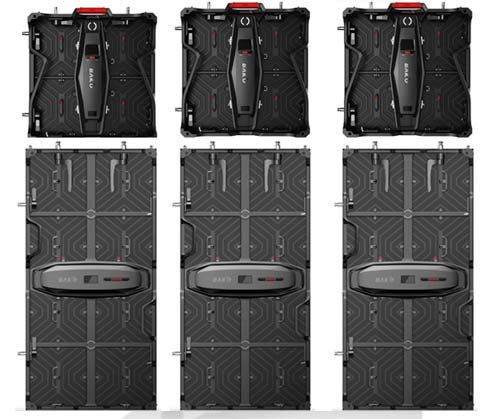

500*500 mm cabinets and 500*1000 mm cabinets can connect together easily.Special structural design that helps you to install the screen on ground without any tools. You can remove the modules diagonally for maintenance easily.
