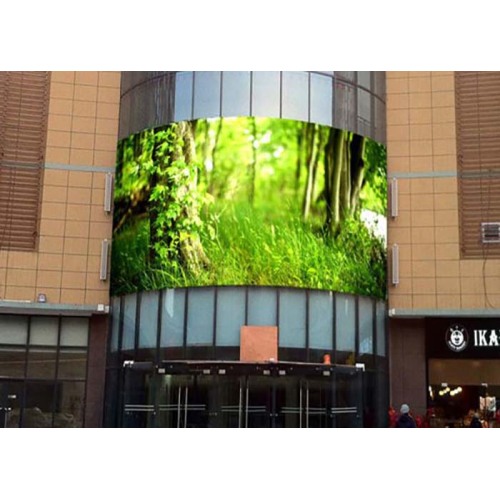

Full Color High Gray Scale Curved LED Display

Full Color High Gray Scale Curved LED Display

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, FCA, CPT

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 30 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	6000m²/Month
Supply Ability:	6000m²
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,FCA,CPT
Certificate:	CCC, FCC, ETL, CE, EMC, ROHS
HS Code:	8528591090
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Guangzhou

Product Description

Widely used in stage rental, singing and dancing events, various conferences, exhibitions, stadiums, theaters, auditoriums, lecture halls, multi-purpose halls, conference rooms, interpretation halls, di bars, nightclubs, high-end entertainment discs, etc.

Features

Optional of Convex Shaped, Concave Shaped and Wave Shaped screens
Ultra slim and lightweight
Rental Slim aluminum structure
Seamless splicing
Quick lock system, easy installation
High refresh rate and high contrast
Wide viewing angle
Working status indicator available

Warranty service

Free warranty for two year, providing lifetime maintenance service. A certain cost will be charged within a reasonable range after the warranty period. During the warranty period, we are responsible for the maintenance and maintenance of all equipment specified in the contract, and any replacement or repair of any equipment or components caused by product design, installation process, materials, product quality and components. Ensure that the system reaches the design life.
Responsible for technical support and version upgrade of related software.
During the maintenance period, if the customer has other transformation needs, our company will use its own technical advantages to help customers complete the transformation work in a timely, fast and safe manner.
For the original similar items of the customer, if the original manufacturer can not undertake the maintenance work, our company can assist in maintenance and negotiate the cost.
If the system fails, our company guarantees to respond within half an hour after receiving the notice.

Technical Parameter

Model	IRB-3
Pixel Pitch	3mm
Pixel Density	111110 pixels/m²
LED Type	SMD2121
LED Configuration	1R1G1B
Cabinet Dimension	576*576mm
Cabinet Resolution	192*192pixels
Cabinet Weight	8kg
Cabinet Material	aluminum
Ingress Protection(front/rear)	IP40/IP21
Brightness	>1200nits
Viewing Angle(H/V)	140°/140°
Driving Method	1/16 Scan
Frame Refresh	≥ 60Hz
Data Refresh Rate	>1500Hz
Gray Scale	16bit
Power Consumption(avg.)	300w/m²
Input Voltage	AC 110/220±10%, 50~60Hz
Temperature (operating/storage)	-20~50°C / -40~60°C
Humidity (operating/storage)	10%~90%RH /10%~85%RH
MTBF	≥1000hrs
Life Span	≥100000hrs
Pixel Failure	<0.0003

About Us

We are a full range manufacturer and LED display solutions provider and its ancillary systems worldwide since 2009, headquartered in Shenzhen with a 6,000m2 production state of the art facility to cover international demands. We provide a one-stop shopping in the design, production, and distributions of LED displays and solutions for our customers domestically and globally.

Our products include ranges of indoor, outdoor, fixed, rental and creative LED Solutions for various applications including sports, advertisement, concerts, shopping malls, stadiums, exhibitions or any other indoor and outdoor events that comes to your imagination.

full color high gray scale curved led display
