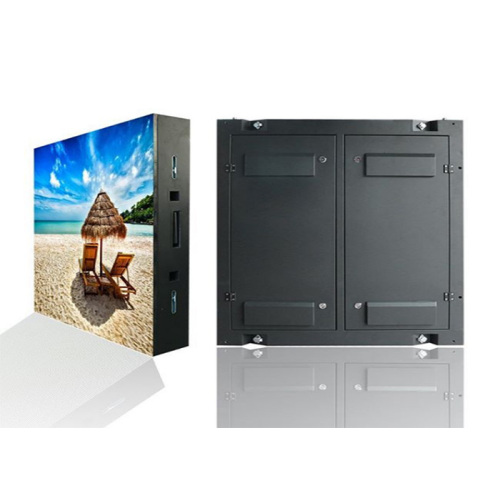

SMD1921 Outdoor LED Dsiplay
  • SMD1921 Outdoor LED Dsiplay
  • SMD1921 Outdoor LED Dsiplay
  • SMD1921 Outdoor LED Dsiplay
SMD1921 Outdoor LED Dsiplay
SMD1921 Outdoor LED Dsiplay
SMD1921 Outdoor LED Dsiplay

SMD1921 Outdoor LED Dsiplay

Payment Type:
L/C, T/T, Paypal, Western Union
Incoterm:
FOB, CFR, CIF, FCA, CPT
Min. Order:
1 Square Meter
Min. Order:
1 Square Meter
Delivery Time:
Within 30 Days
Transportation:
Ocean, Land, Air
Port:
Shenzhen, Guangzhou
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 6000sqm/month
Supply Ability: 6000sqm/month
Payment Type: L/C,T/T,Paypal,Western Union
Incoterm: FOB,CFR,CIF,FCA,CPT
Certificate: CCC,FCC,CE,ETL,RoHS,EMC
HS Code: 8528591090
Transportation: Ocean,Land,Air
Port: Shenzhen,Guangzhou
Product Description
Product Description


This outdoor Front Service LED Display can be widely used in many contexts such as: stock exchange centers, customs, stadiums, studio, shopping malls, railways, airports, harbors,high way, commercial advertising, Stadium perimeter, mobile media, bus station, schools, telecommunications,entertainment events, business establishments and so on.


Features:

1.Wide viewing angle
2. High contrast rate up to 4000:1
3. Front and rear side maintenance
4. High brightness, even within direct sunshine
5. High waterproof and dustproof, IP65 front side and IP54 rear side
6. Having good lightening accordance and no mosaic
7. Having large viewing angle: Getting vivid effect within any position of the viewing range
8. Front service module design, which can help to reduce the cost of maintenance

9. Great uniformity and screen flatness

10.IP65 protection grade, durable nature enables the screen to work in all out door weather conditions

11.High gray display effect, the picture level is distinct


Advantages:

1. Maintenance can be conducted from either front or rear side, easy to maintain from front
2. It can be installed without taking the space for maintenance channel into consideration, thus improving your work efficiency.
3. Long-term Brightness:6500 nit brightness(for outdoor full color) throughout product lifetime of the LED display
4. It Controlled with PC by synchronization, with high refresh rate; an-synchronization control system is also available

Front service

Specifications:

Model

OD-4

Pixel Pitch

4mm

Pixel Density

62500 pixels/m²

LED Type

SMD1921/2525

LED Configuration

1R1G1B

Cabinet Dimension

1024mm*768mm

Cabinet Resolution

256*192pixels

Cabinet Weight

50kg

Cabinet Material

cold steel

Ingress Protection
(front/rear)

IP65/IP54

Brightness

>6500nits

Viewing Angle(H/V)

140°/140°

Driving Method

1/8 scan

Frame Refresh

≥ 60Hz

Data Refresh Rate

>1500Hz

Gray Scale

16bit

Power Consumption(avg.)

300w/m²

Input Voltage

AC 110/220±10% 50~60Hz

Temperature(operating/storage)

-20~50°C / -40~60°C

Humidity(operating/storage)

10%~90%RH / 10%~85%RH

MTBF

≥1000hrs

Life Span

≥100000hrs

Pixel Failure

<0.0003

Outdoor LED Advertising Display Screen
